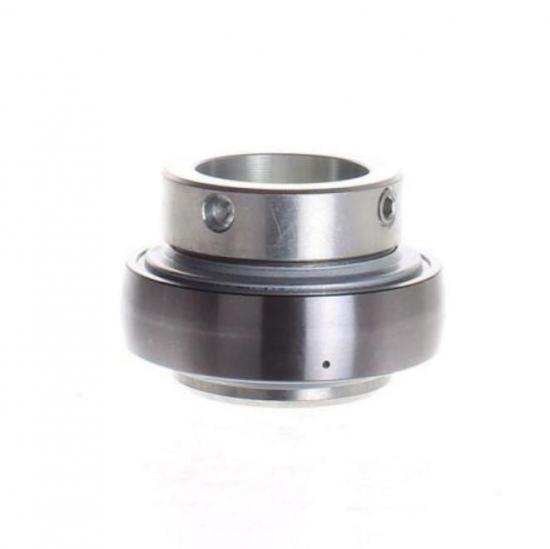

GRAE40-NPP-B Agricultural Machinery Radial Insert Ball Bearing

GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm

CONTACT NOW down load to pdf

Details

Tags

Radial Insert Ball Bearing GRAE40-NPP-B Specification:
Material :Chrome steel
Packing : INA color box
Size :40*80*43.8mm

Inner size (d):40 mm
Outer size (D):80mm
Width (Be):21mm
Total width (Bi)43.8mm
Dynamic load：32500
Static load：19800

We Can Produce Other Type INA Bearings:

Bearing Series	For shaft diameter in mm	Features
GRAE..-NPP-B	12-60mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
			RAE..-NPP-B	12-50mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
RALE..-NPP-B	20-30mm	Spherical outer ring,location by eccentric locking collar ,P seals on both sides
			RA..-NPP-B	5/8''-1 1/2''	Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore
GE..-KRR-B	17-120	Spherical outer ring,location by eccentric locking collar ,R seals on both sides

Radial Insert Ball Bearings GRAE..-NPP-B
spherical outer ring,location by eccentric locking collar,P seals on both sides

Bearings No.	d(mm)	DSP(mm)	B1(mm)
GRAE-12-NPPB	12	40	28.6
GRAE-15-NPPB	15	40	28.6
GRAE-17-NPPB	17	40	28.6
GRAE-20-NPPB	20	47	31
GRAE-25-NPPB	25	52	31
GRAE-30-NPPB	30	62	35.8
GRAE-35-NPPB	35	72	39
GRAE-40-NPPB	40	80	43.8
GRAE-45-NPPB	45	85	43.8
GRAE-50-NPPB	50	90	43.8
GRAE-55-NPPB	55	100	48.4
GRAE-60-NPPB	60	110	53.1

RAE..-NPP-B Bearing Series:

Bearings No.	d(mm)	DSP(mm)	B1(mm)
RAE12-NPP-B	12	40	28.6
RAE15-NPP-B	15	40	28.6
RAE17-NPP-B	17	40	28.8
RAE20-NPP-B	20	47	31
RAE25-NPP-B	25	52	31
RAE30-NPP-B	30	62	35.8
RAE35-NPP-B	35	72	39
RAE40-NPP-B	40	80	43.8
RAE50-NPP-B	50	90	43.8

RALE..-NPP-B Bearing:

Bearings No.	d(mm)	DSP(mm)	B1(mm)
RALE20-NPP-B	20	42	24.5
RALE25-NPP-B	25	47	25.5
RALE30-NPP-B	30	55	26.5

RA..-NPP-B Series Bearing:

Bearings No.	d(mm)	DSP(mm)	B1(mm)
RA100-NPP-B	25.4	52	31
RA104--206-NPP-B	31.75	62	35.8
RA104-NPP-B	31.75	72	39
RA108-NPP-B	38.1	80	43.8

Radial insert ball bearings GE..-KRR-B
spherical outer ring,location by eccentric locking collar,R seals on both sides

Bearings No.	d(mm)	DSP(mm)	B1(mm)
GE17-KRR-B	17	40	37.4
GE20-KRR-B	20	47	43.7
GE25-KRR-B	25	52	44.5
GE30-KRR-B	30	62	48.5
GE35-KRR-B	35	72	51.3
GE40-KRR-B	40	80	56.5
GE45-KRR-B	45	85	56.5
GE50-KRR-B	50	90	62.8
GE55-KRR-B	55	100	71.4
GE60-KRR-B	60	110	77.9
GE65-214-KRR-B	65	125	66
GE70-KRR-B	70	125	66
GE75-KRR-B	75	130	67
GE80-KRR-B	80	140	70.7
GE90-KRR-B	90	160	69.5
GE100-KRR-B	100	180	75
GE120-KRR-B	120	215	81
