Name: GC-D Roller Type One Way Backstop Clutch For Printing Machine
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

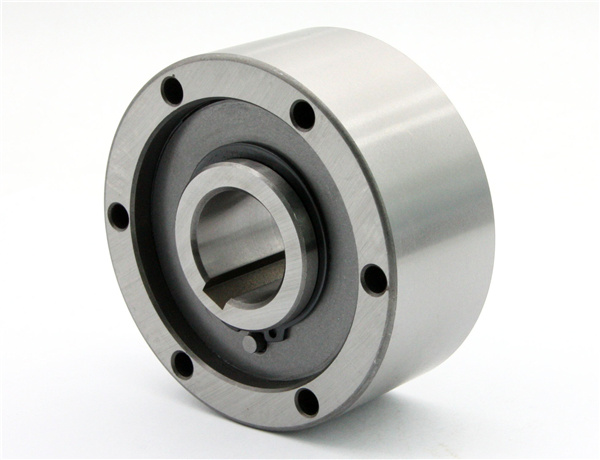

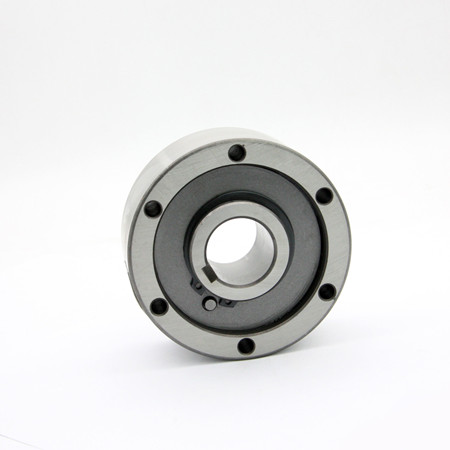

GC-D Roller Type One Way Backstop Clutch For Printing Machine

As a kind of clutch one way bearing, the GC-D roller type one way backstop clutch for printing machine mainly consists of cylinder inner diameter outer ring, oblique roller inner ring and a group of bearing spring force and always close to the inner and outer ring together.

CONTACT NOW down load to pdf

Details

Tags

Product parameter:

Type	Nominal Torque Nm	Overrunning Limiting Speed r/min		Dimension mm						Weight Kg
Type	Nominal Torque Nm	Inner Race	Outer Race	d H7	D H7	F	L	n-d1	bn×tn	Weight Kg
GC-D1247	12	1550	3000	12	47	38	20	3-5.5	4×1.8	0.21
GC-D1555	42	1150	2700	15	55	45	30	3-5.5	5×2.3	0.44
GC-D2068	111	1000	1800	20	68	58	34	4-5.5	6×2.8	0.70
GC-D2590	215	850	1300	25	90	78	37	6-5.5	8×3.3	1.30
GC-D30100	380	750	1050	30	100	87	44	6-6.6	8×3.3	2.00
GC-D35110	547	650	975	35	110	96	48	6-6.6	10×3.3	2.60
GC-D40125	760	600	850	40	125	108	56	6-9.0	12×3.3	3.90
GC-D45130	855	525	750	45	130	112	56	8-9.0	14×3.8	4.00
GC-D50150	1634	475	650	50	150	132	63	8-9.0	14×3.8	6.00
GC-D55160	1995	425	600	55	160	138	67	8-11	16×4.3	7.20
GC-D60170	2660	400	550	60	170	150	78	10-11	18×4.4	9.20
GC-D70190	4370	325	450	70	180	165	95	10-11	20×4.9	11.80
