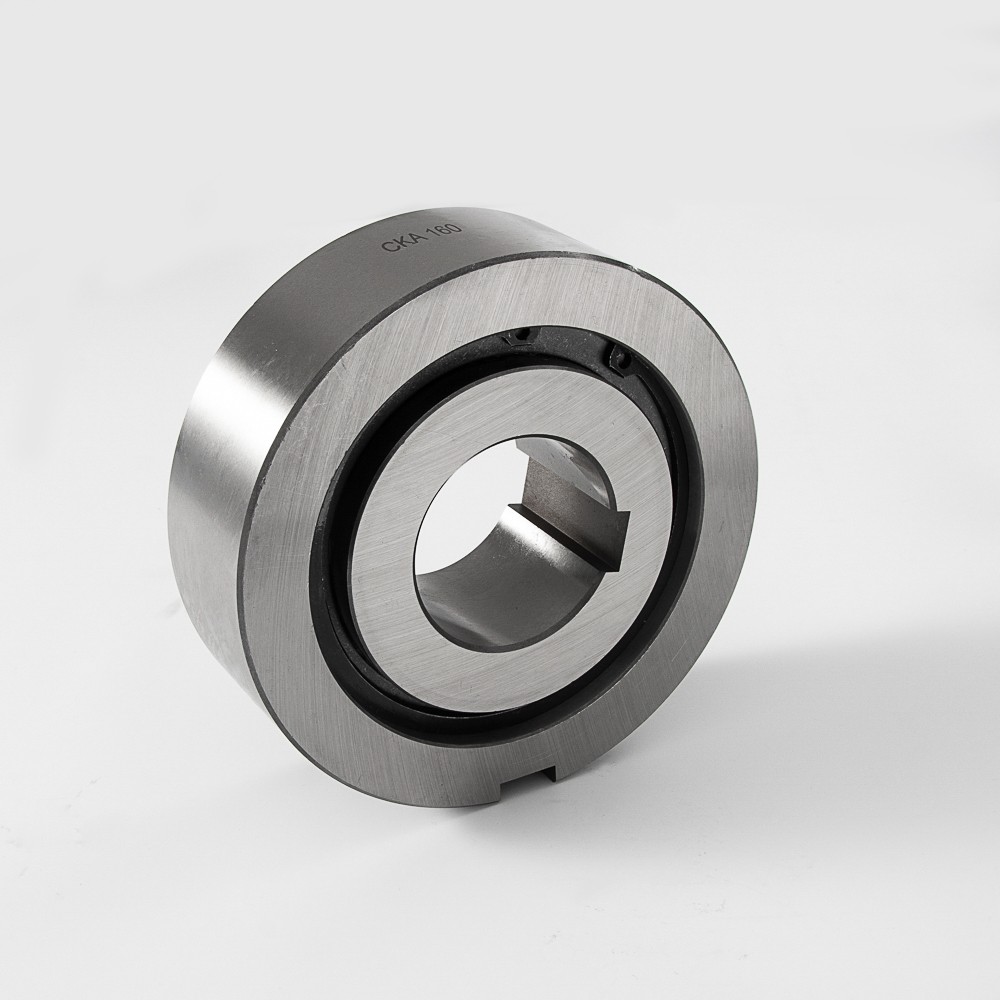

Name: GC-A Roller Type One Way Backstop Clutch Without Bearing Support
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

GC-A Roller Type One Way Backstop Clutch Without Bearing Support

CONTACT NOW down load to pdf

Details

Tags

Product Parameter:

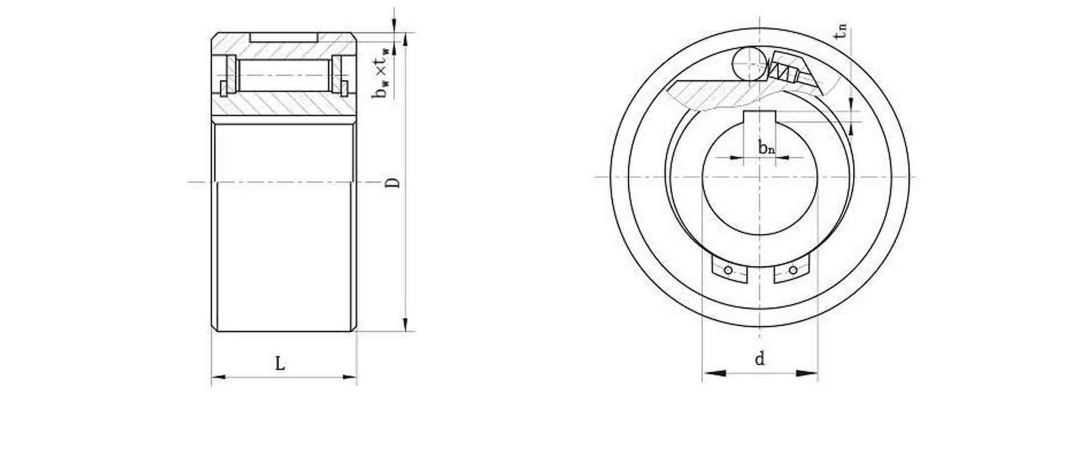

TYPE	NOMINALTORQUE [N'm]	OVERRUNNINGLIMITING SPEEDS [r/min]		DIMENSION IN CONTOUR [mm]					WEIGHT [Kg]
TYPE	NOMINALTORQUE [N'm]	INNER RACE	OUTER RACE	D [h7]	L	bw*tw	d [h7]	bn*tn	WEIGHT [Kg]
GC-A1237	12	1500	3100	37	20	4*2.5	12	4*1.8	0.11
GC-A1547	40	1100	2800	47	30	4*2.5	15	4*1.8	0.30
GC-A2062	105	1000	2400	62	34	5*3.0	20	5*2.3	0.50
GC-A2580	205	850	2000	80	37	5*3.0	25	5*2.3	0.98
GC-A3090	360	750	1700	90	44	6*3.5	30	6*2.8	1.50
GC-A35100	513	650	1400	100	48	6*3.5	35	6*2.8	2.00
GC-A40110	738	600	1200	110	56	8*4.0	40	8*3.3	2.80
GC-A45120	810	500	1000	120	56	10*5.0	45	10*3.3	3.30
GC-A50130	1530	450	850	130	63	10*5.0	50	12*3.3	4.20
GC-A55140	1890	420	700	140	67	12*5.0	55	12*3.3	5.20
GC-A60150	2520	400	580	150	78	12*5.0	60	14*3.8	6.80
GC-A70170	4320	300	450	160	95	14*5.5	70	14*3.8	10.5
CC-A2585	260	800	1800	85	28	5*3.0	25	8*3.0	0.9
GC-A3580	200	850	2000	80	37	5*3.0	35	5*2.3	0.9
