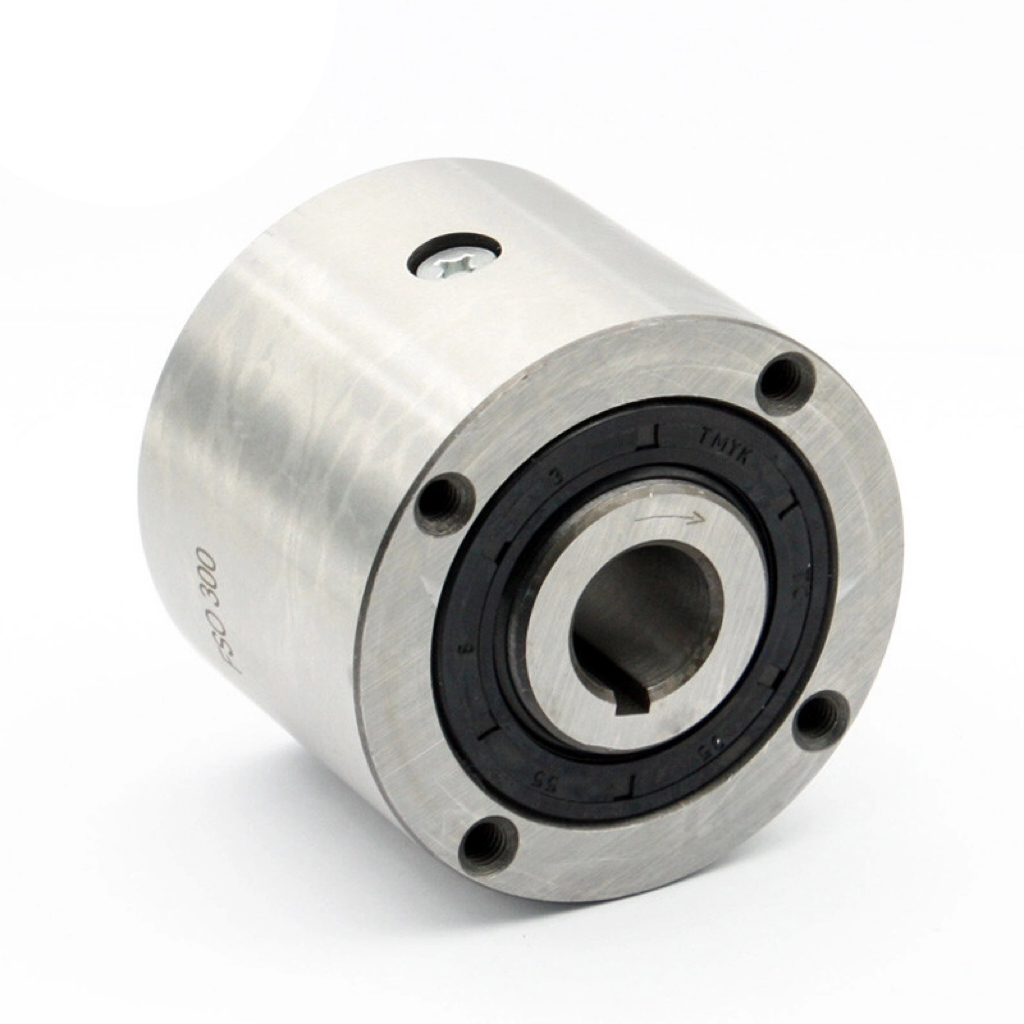

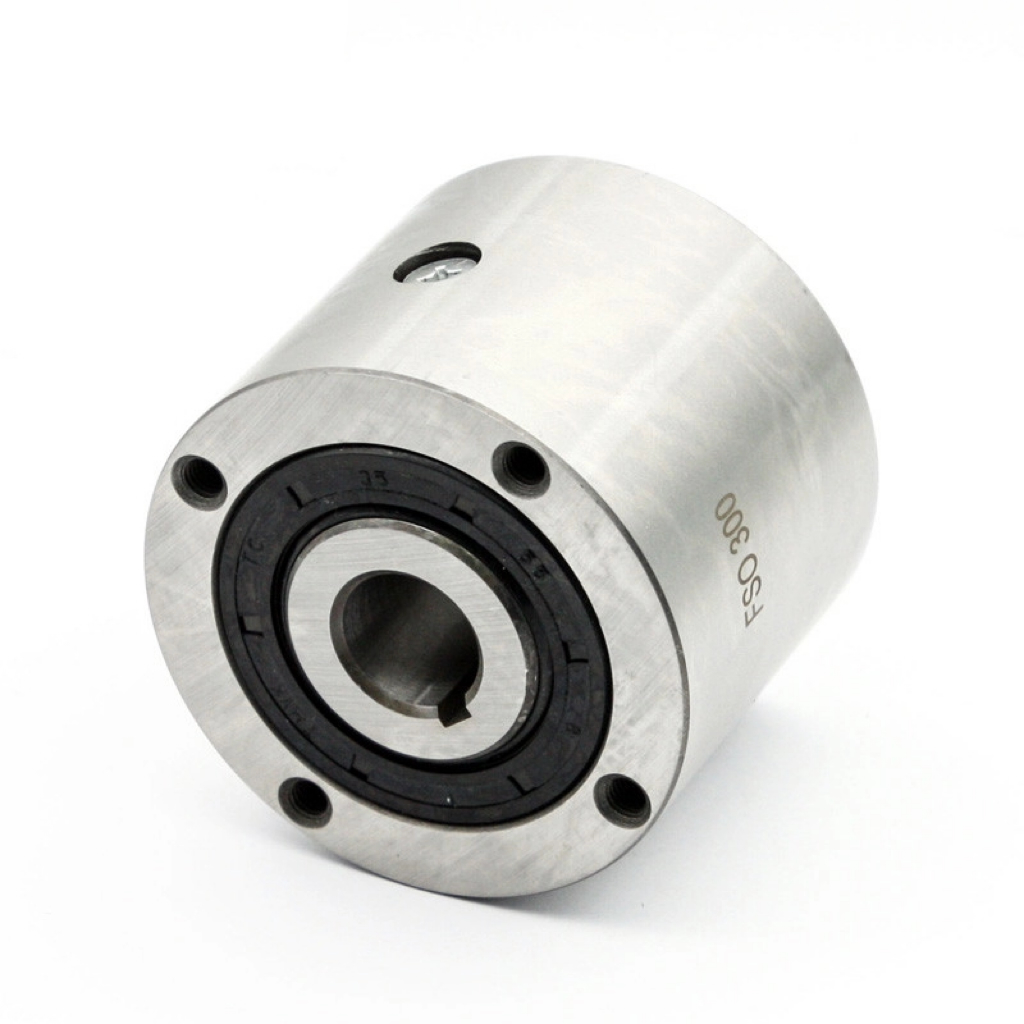

FSO300 12mm 14mm Hpi One Way Bearings Freewheels Sprag Clutch

We Have Different Types Of One Way Bearings, CSK, CSK.2RS Specification Series; CSK..P, CSK..PP Specification Series; AS Specification Series; ASNU Specification Series; AE Specification Model; NF Specification Series; DC Specification Series; BAT Specification Series; GFR, GFRN Specification Series; GFR..F1F2, GFR..F2F7, GFRN..F5F6 Specification Models; GFR...F2-F3, GFR..F3-F4 Specification Series; FSO, FSO-GR, HPI Specification Series; FS, FSO, HPI Specification Series

Details

Tags

FSO300 12mm 14mm Hpi One Way Bearings Freewheels Sprag Clutch

FSO300 FS Series HPI Type One Way Freewheels Sprag Clutch Bearing



We Have Different Types Of One Way Bearings, CSK, CSK.2RS Specification Series; CSK..P, CSK..PP Specification Series; AS Specification Series; ASNU Specification Series; AE Specification Model; NF Specification Series; DC Specification Series; BAT Specification Series; GFR, GFRN Specification Series; GFR..F1F2, GFR..F2F7, GFRN..F5F6 Specification Models; GFR...F2-F3, GFR..F3-F4 Specification Series; FSO, FSO-GR, HPI Specification Series; FS, FSO, HPI Specification Series



Types FSO, FSO-GR, And HPI 300 To 700 Are Sprag Type Freewheels Self-Contained, Sealed And Bearing Supported, Using Two Ball Bearings.
Units Are Delivered Oil Or Grease Lubricated According To The Type.

It Is A Design With Full Sprag Complement That Gives A Very High Torque For A Given Diameter. Any Overload Is Resisted By A Sprag To Sprag Abutment, Avoiding A Sprag Tilt Over.



Lubrication



Types FSO And HPI Are Oil Lubricated And Use Standard Shaft Lip Seals.

Type FSO-GR Is Grease Lubricated And Can Be Equipped With Contact Free Labyrinth Seals.



Type HPI Is Specially Designed For High Speed Indexing Applications.



Products Parameters

Type Size

Torque

TKN1

[Nm]

Overrunning Speeds

[Min-1]

DIMENSION ( MM ) Lubricant Weight Torque Drag
FSO FSO-GR HPI

FSO

Nmax2)

FSO-

GR

Nmax3)

dH7-bxh

D4)

Min-Max

A

B

-0.05

C E F G z J K L f FSO FSO..GR HPI [kg] TR [Ncm]
300 379 3000/900 3600/900 15-5x5 12...19 63.5 76.2 60.45 1.6 28.58 66.67 4 M8 13 M6 0.8 7 10 14 1.6 18
400 407 2800/850 3600/850 18-6x6 12...22 69.85 88.9 68.07 1.6 30 73 4 M8 13 M6 0.8 10 20 20 2.7 27
500 1621 2500/800 3000/800 30-8x7 19...33 88.9 107.95 85.73 1.6 45 92 4 M8 16 M6 1.5 22 35 35 4.8 31
600 3105 2200/750 2400/750 45-14x9 24...57 95.25 136.525 92.2 1.6 63.5 120.6 6 M8 16 M6 1.6 52 84 84 8.6 62
700 6900 1600/450 2000/450 60-18x11 48...82 127 180.975 123.85 1.6 90 158.75 8* M10* 20 M6 1.6 168 280 280 19 156
