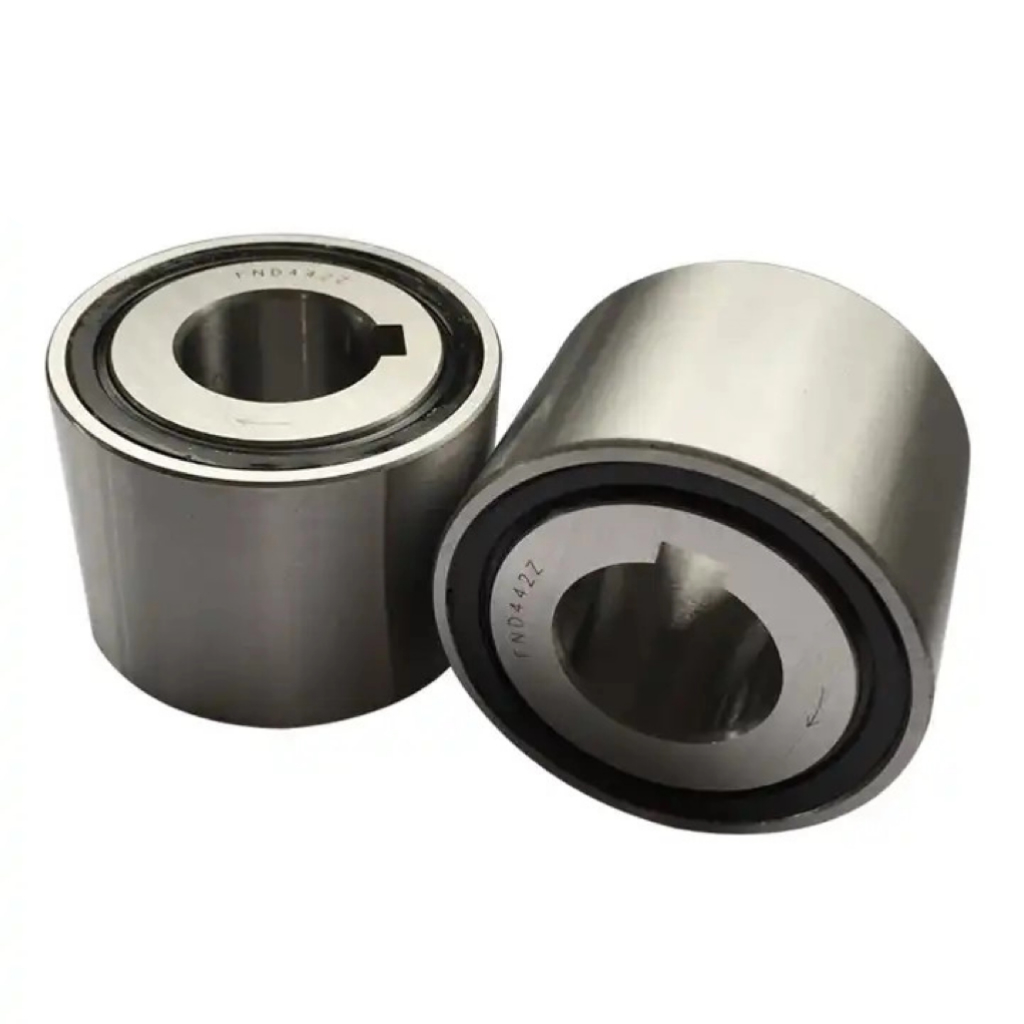

FND442Z Complete Freewheel One Way Clutch Bearings
  • FND442Z Complete Freewheel One Way Clutch Bearings
  • FND442Z Complete Freewheel One Way Clutch Bearings FND Series

FND 470 Z Complete Freewheel One Way Clutch Bearings Backstop Clutch

Highlight: FND 470 Z Backstop Clutch, Complete Freewheel Backstop Clutch, 34mm One Way Clutch Bearings

Details

Tags

Highlight: FND 470 Z Backstop Clutch, Complete Freewheel Backstop Clutch, 34mm One Way Clutch Bearings

Name:
FND Type Freewheel One Way Clutch
Material:
GCR 15 Bearing Steel
Type:
One Way Bearings
Thichness (mm):
34
Torque (Nm):
176-543
Weight (Kg):
0.24-0.73
Bore Size(mm):
15-45
Warranty:
12 Months



FND 470 Z Complete Freewheel One Way Clutch Bearings Backstop Clutch

Designation d D W Tnom nmax Cdyn. Cstat. Weight b t Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg] [mm] [mm]
FND 437 M 15 41 34 176 1,700 8,962 8,661 0.24 5 2.3 300737
FND 437 Z 15 41 34 161 1,700 8,962 8,661 0.24 5 2.3 300738
FND 442 M 20 46 34 223 1,500 10,247 10,708 0.28 6 2.8 300743
FND 442 Z 20 46 34 208 1,500 10,247 10,708 0.28 6 2.8 300744
FND 453 M 25 58 34 343 1,200 11,417 13,577 0.46 8 3.3 300751
FND 453 Z 25 58 34 314 1,200 11,417 13,577 0.46 8 3.3 300752
FND 459 M 30 64 34 411 1,100 12,691 16,320 0.55 8 3.3 300758
FND 459 Z 30 64 34 381 1,100 12,691 16,320 0.55 8 3.3 300760
FND 463 M 35 68 34 462 1,100 13,070 17,063 0.6 10 3.3 306528
FND 463 Z 35 68 34 428 1,100 13,070 17,063 0.6 10 3.3 306529
FND 470 M 40 75 34 550 1,000 14,050 19,840 0.69 12 3.3 300765
FND 470 Z 40 75 34 509 1,000 14,050 19,840 0.69 12 3.3 300766
FND 473 M 45 78 34 588 1,000 14,128 19,896 0.73 14 3.8 306532
FND 473 Z 45 78 34 543 1,000 14,128 19,896 0.73 14 3.8 306533
