FND 453 Z FND Series Complete Freewheel One Way Clutch Bearings

Name:	FND Type Freewheel One Way Clutch	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Thichness (mm):	34
Torque (Nm）:	176-543	Weight (Kg):	0.24-0.73
Bore Size(mm):	15-45	Warranty:	12 Months

Data

Drawing Legend

D=Inner Diameter D=Outer Diameter W = Width T = Torque N = Rotation Speed

C = Load Capacity B = Keyway Width T = Keyway Depth

Designation	d	D	W	Tnom	nmax	Cdyn.	Cstat.	Weight	b	t	Item no.
Designation	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	[mm]	[mm]
FND 437 M	15	41	34	176	1,700	8,962	8,661	0.24	5	2.3	300737
FND 437 Z	15	41	34	161	1,700	8,962	8,661	0.24	5	2.3	300738
FND 442 M	20	46	34	223	1,500	10,247	10,708	0.28	6	2.8	300743
FND 442 Z	20	46	34	208	1,500	10,247	10,708	0.28	6	2.8	300744
FND 453 M	25	58	34	343	1,200	11,417	13,577	0.46	8	3.3	300751

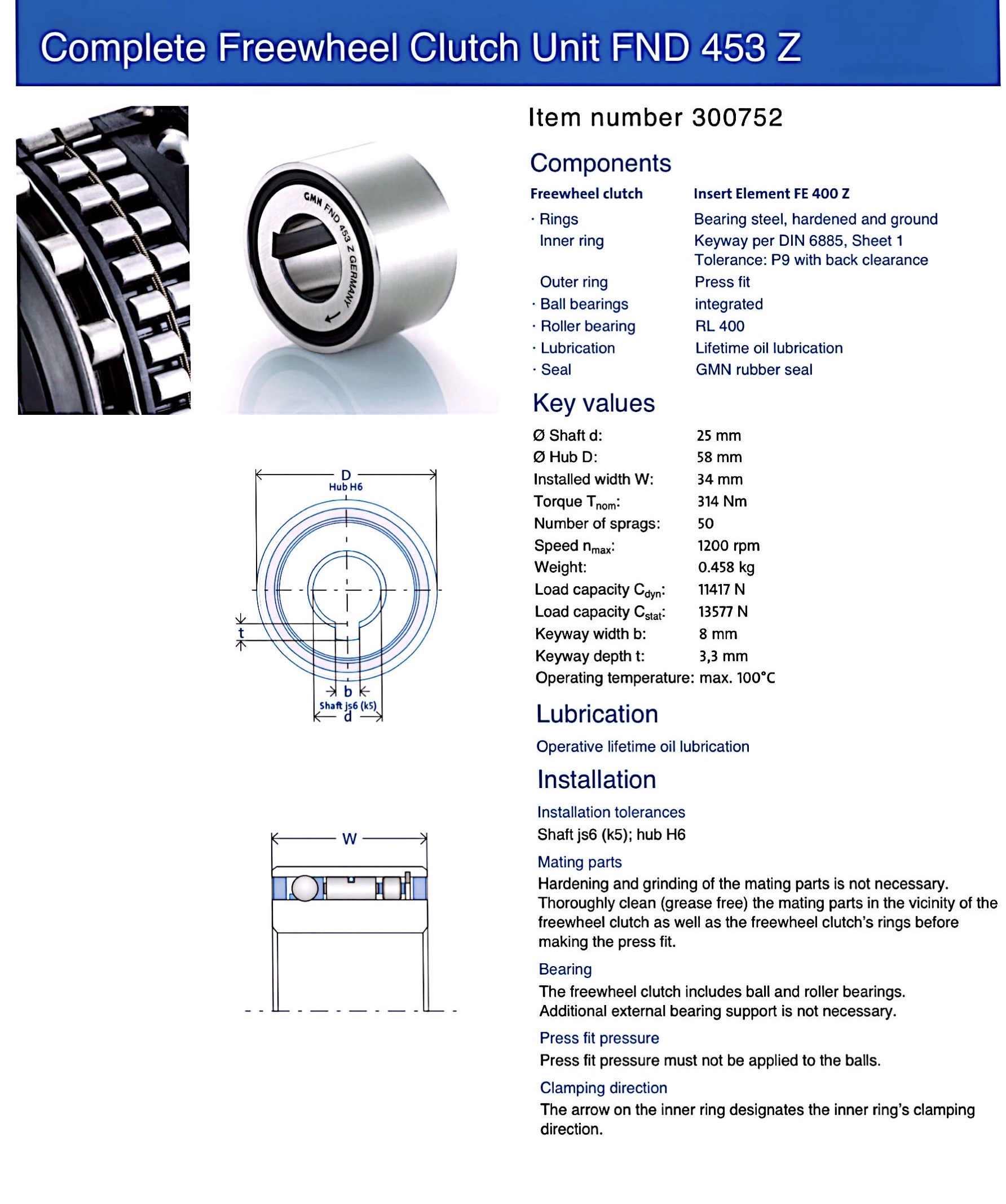

FND 453 Z	25	58	34	314	1,200	11,417	13,577	0.46	8	3.3	300752
FND 459 M	30	64	34	411	1,100	12,691	16,320	0.55	8	3.3	300758
FND 459 Z	30	64	34	381	1,100	12,691	16,320	0.55	8	3.3	300760
FND 463 M	35	68	34	462	1,100	13,070	17,063	0.6	10	3.3	306528
FND 463 Z	35	68	34	428	1,100	13,070	17,063	0.6	10	3.3	306529
FND 470 M	40	75	34	550	1,000	14,050	19,840	0.69	12	3.3	300765
FND 470 Z	40	75	34	509	1,000	14,050	19,840	0.69	12	3.3	300766
FND 473 M	45	78	34	588	1,000	14,128	19,896	0.73	14	3.8	306532
FND 473 Z	45	78	34	543	1,000	14,128	19,896	0.73	14	3.8	306533
