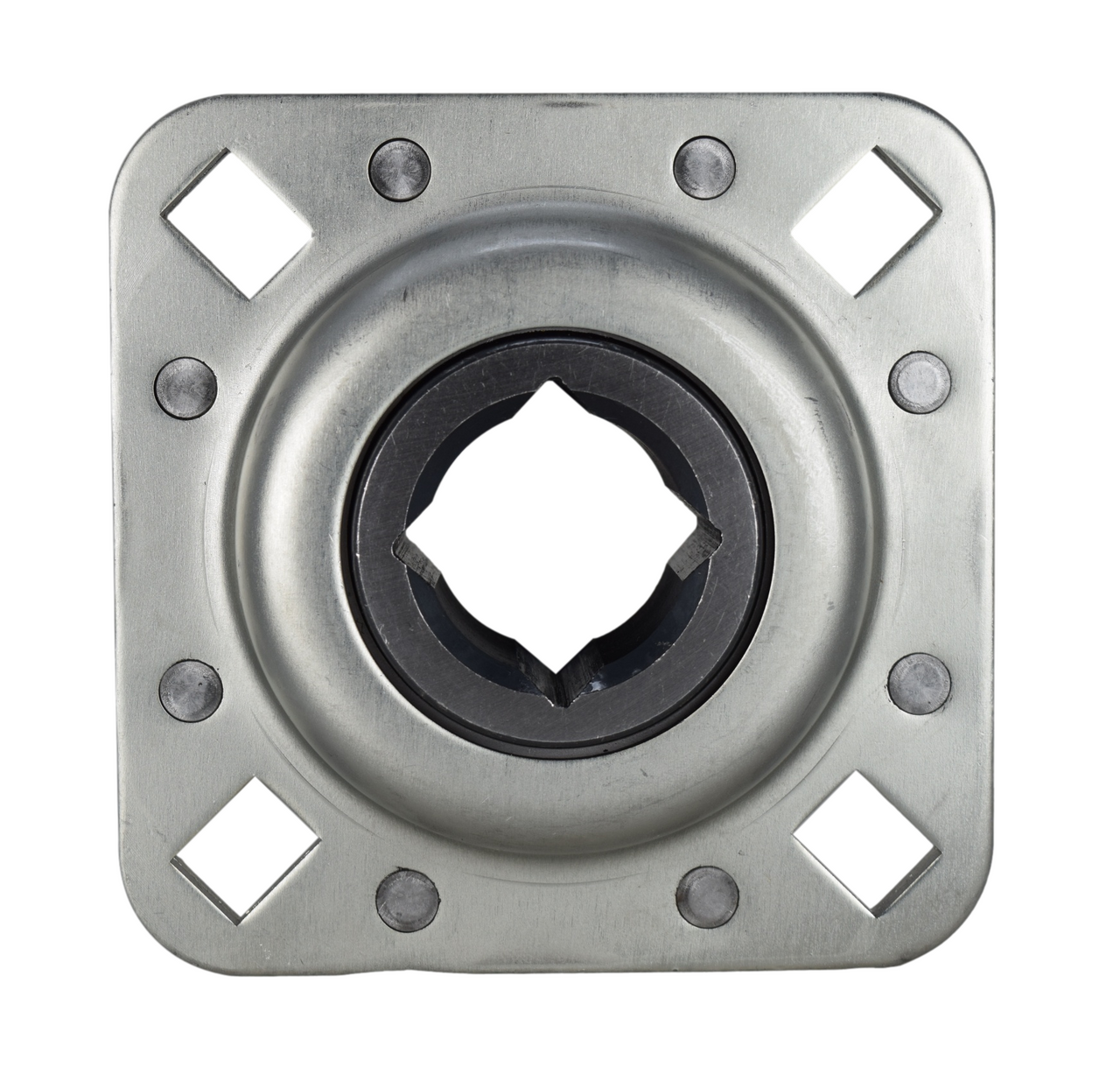

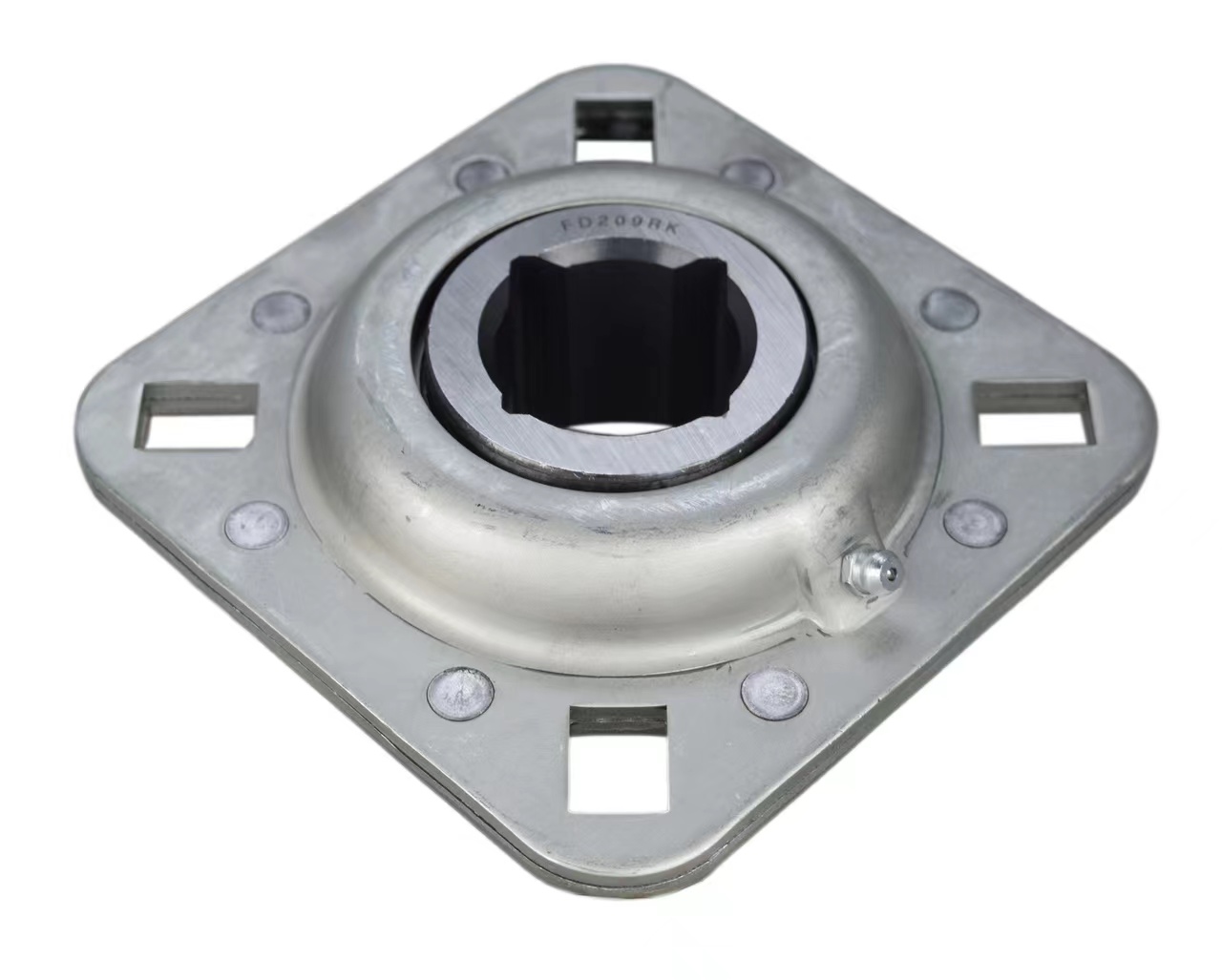

FD209RK DISC HARROW UNIT

1-1/4'' square bore bearing FD209RK are produce with Chrome steel Gcr15.

Details

Tags

DIMENSIONS:

BORE: 1-1/4" SQUARE BOLT TO BOLT: 5" (BOTTOM LEFT TO TOP RIGHT)
Bolt Circle: 5.000"
Bore: 1.250"
Bore Type: Square
Hole Size: .531"
Lube Type: Relubable
Overall Dimensions: 5.000" X 5.000"
Width: 1.687"

OEM Number:
BCA/FEDERAL MOGUL: FD-209-RK
FAFNIR: DHU114S209
QUINSTAR: 311007
GREAT PLAINS: 822-209C

FD209RK DISC HARROW UNIT Bearings Can Used For:
Case-IH Field cultivators late Tigermate 200 rolling basket with square bore bearing.
Vertical tillage late True-Tandem 330 Turbo rolling basket with square bore bearing.
Disc ripper late 870;
All 875 rolling baskets with square bore bearing.
FlexKing tillage tools.
Great Plains Turbo-Max to s/n C3156H rolling spike harrow with square bore bearing. 1000TM, 1200TM, 1500TM, 1800TM, 2400TM, 3000TM, 3500TM, 4000TM, 4800TM.
Turbo-Till to s/n 5250NN rolling spike harrow with square bore bearing. 1000TT, 1200TT, 1500TT, 1700TT, 1800TT, 2200TT, 2400TT, 3000TT, 4000TT.
Kent tillage tools. Kuhn Krause Excelerator 8000-14, 8000-20, 8000-25, 8000-30, 8000-40, 8000-50 rolling basket.
Dominator 4850 disc ripper crumbler wheels. Field cultivator and Landsman rolling basket. Summers tillage tools. Sunflower tillage tools.
Quinstar tillage tools.

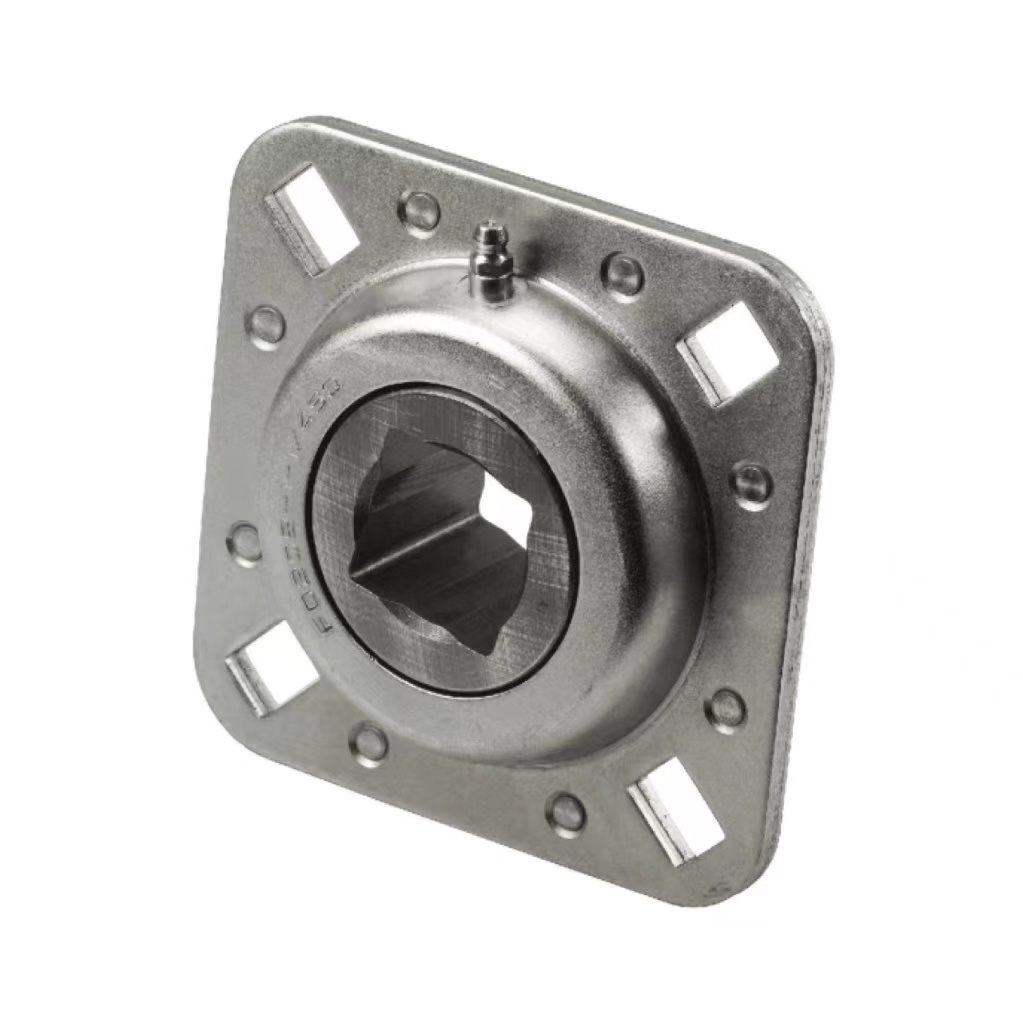

We Also Can Produce other high quality Disc Harrow Bearing:

ST211-1 3/4	1–2	1.78	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.531
ST211-1 3/4	1–2	45.21	139.7	55.6	46.4	9	72.5	113	139.7	13.5
ST211-2 3/16	1–2	2.188	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.531
ST211-2 3/16	1–2	55.58	139.7	55.6	46.4	9	72.5	113	139.7	13.5
ST211-1 15/16	1–2	1.939	5.5	2.752	1.827	0.354	2.854	4.449	5.5	0.531
ST211-1 15/16	1–2	49.24	139.7	69.9	46.4	9	72.5	113	139.7	13.5
ST740	1	2.188	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.516
ST740	1	55.58	139.7	55.6	46.4	9	72.5	113	139.7	13.1
ST208-1R5BC	2	1.043	5	1.654	1.378	0.276	2.165	3.622	5
ST208-1R5BC	2	26.5	127	42	35	7	55	92	127
ST209-1 1/8	1–2	1.18	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-1 1/8	1–2	29.97	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-30S	1–2	1.234	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-30S	1–2	31.35	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-1 1/4	1–2	1.299	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-1 1/4	1–2	33	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-40R	1–2	1.609	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-40R	1–2	40.88	127	42.5	42.8	7	59.5	97.5	127	13.5
FD-211-RM	1–2	1.531	5.5	2	1.827	0.354	2.874	4.469	5.5	0.531
FD-211-RM	1–2	38.89	139.7	50.8	46.4	9	73	113.5	139.7	13.5
ST211-40S	2	1.609	5.5	2	1.827	0.354	2.874	4.469	5.5	0.531
ST211-40S	2	40.88	139.7	50.8	46.4	9	73	113.5	139.7	13.5
DHU 40S-211	2	1.609	5.5	2	1.827	0.354	2.874	4.469	5.5
DHU 40S-211	2	40.88	139.7	50.8	46.4	9	73	113.5	139.7
ST208-1N	2	1.024	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1N	2	26	121	38.18	35	7	55	92	119.02
ST208-1 1/8	2	1.18	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1 1/8	2	29.97	121	38.18	35	7	55	92	119.02
ST208-1 1/8G	2	1.18	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1 1/8G	2	29.97	121	38.18	35	7	55	92	119.02
ST208-1 42LTB	2	1.024	4.764	1.654	1.378	0.276	2.165	3.622	4.686
