Specifications
Name:
|
CSK...P(CSK...PP) One Way Sprag Type Freewheel Clutch
|
Material:
|
GCR 15 Bearing Steel
|
Type:
|
One Way Bearings
|
Bearing Series:
|
6201-6207
|
Torque (Nm):
|
9.3-325
|
Weigt(kg):
|
0.03-0.6
|
Bore Size(mm):
|
32-80
|
CSK...P(CSK...PP) One Way Bearing Cam Clutch For Motorcycle
Production Introduction
A One-Way Bearing Is A Bearing That Can Rotate Freely In One Direction And Lock In The Other Direction. One-Way Bearings Are Also Called Overrunning Clutches, But They Are Named According To Different Industries And Different Functions. The Metal Shell Of The One-Way Bearing Contains Many Rollers, Needles Or Balls, And The Shape Of Its Rolling Seat (Hole) Enables It To Roll Only In One Direction, And Will Produce A Lot Of Resistance In The Other Direction ( So-Called "One-Way")
Types CSK..P And CSK..PP Are Sprag Type Freewheels Integrated Into 62.. Series Ball Bearings (Except Size 40).
They Are Bearing Supported, Delivered Grease Lubricated And Protected Against Dust Of More Than 0,3 Mm. The Use Of Additional “Nylos” Type Seals Is Recommended Especially When The Working Temperature Exceeds 50°C. Oil Bath Lubrication Is Also Possible.

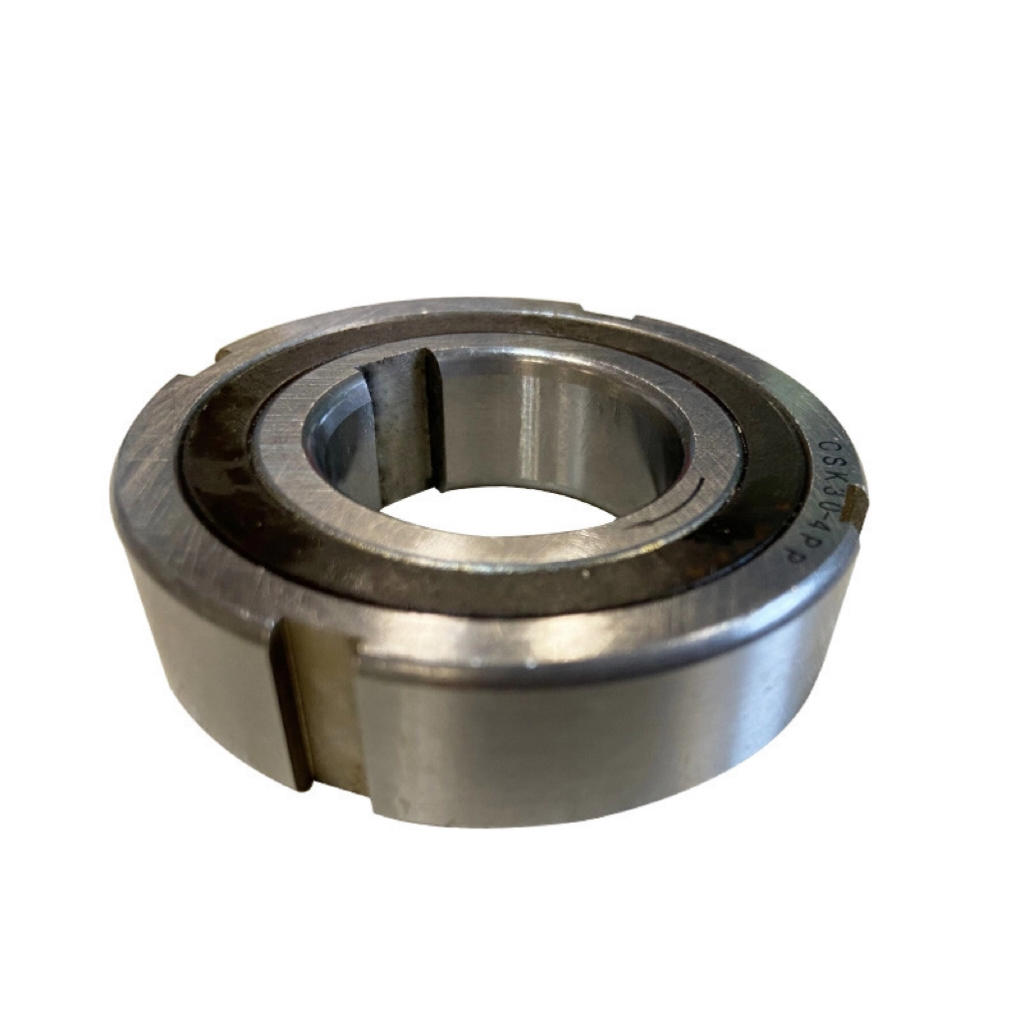

In Addition To The Basic CSK Model, Type CSK..P Features A Keyway On The Inner Race. For This Reason It Can Be Keyed To A Shaft To K6 Tolerance. The Outer Race Must Still Be Pressed Into A Rigid Housing To N6 Tolerance.

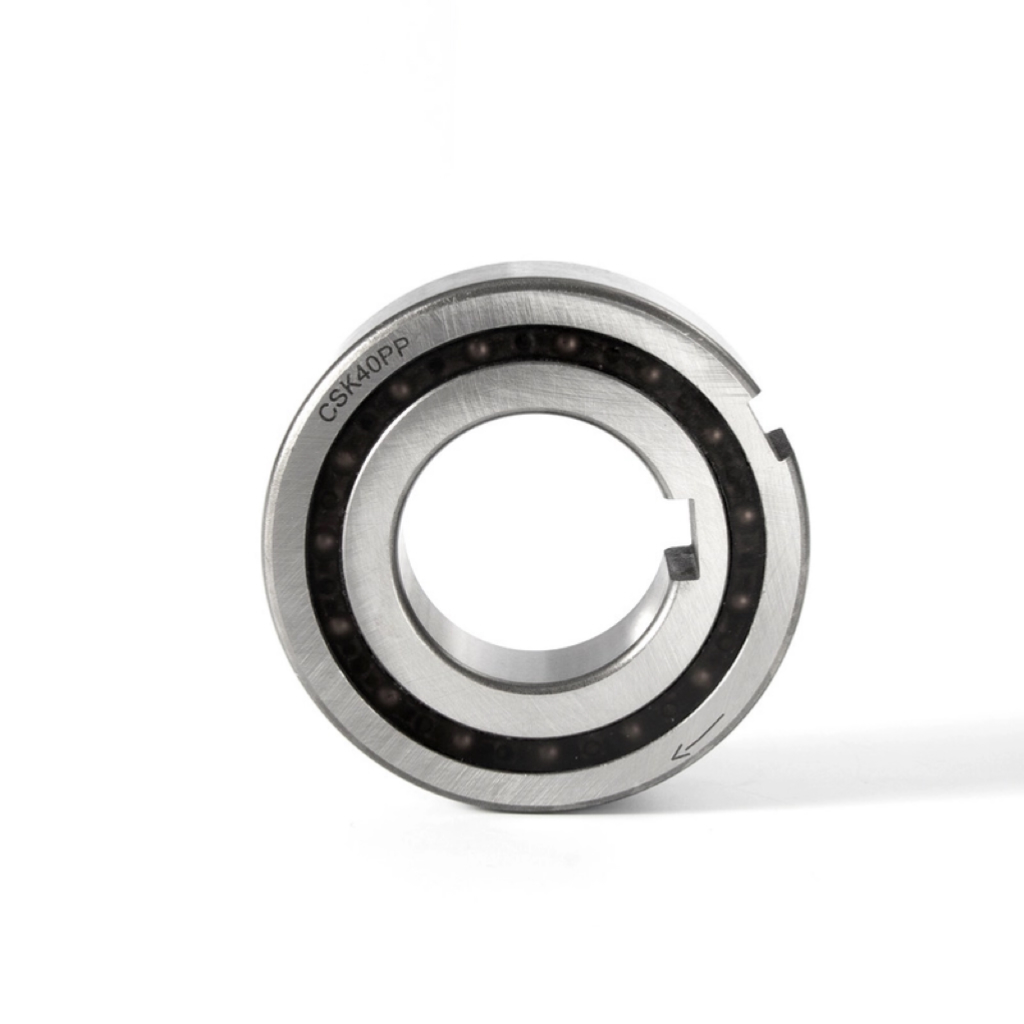

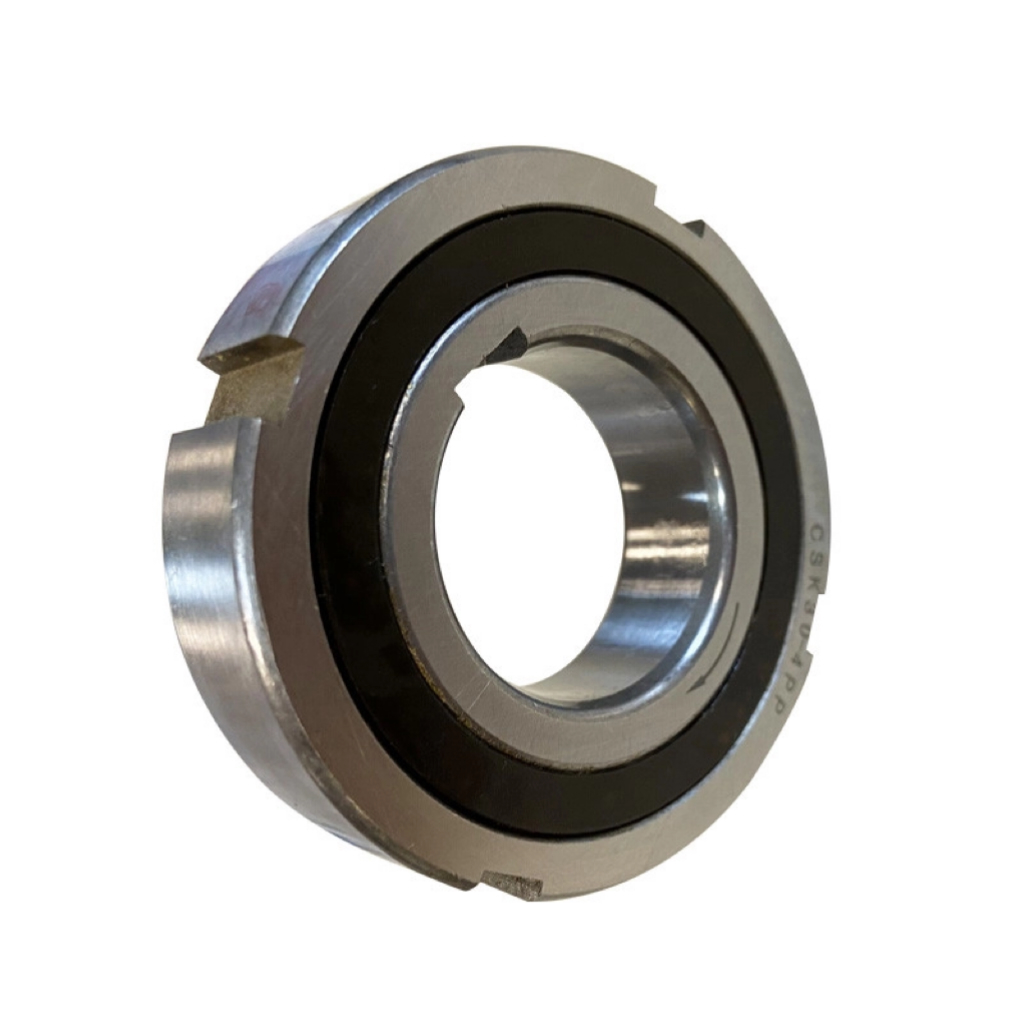

CSK..PP Features A Keyway On Both The Inner And Outer Race. The Recommended Mounting Tolerances Are H6 On The Shaft And H6 In A Rigid Housing. Please Contact Us When Either The Ambient Or The Operating Temperature Is Not Within The Range +5°C To +60°C.
Products Parameters
Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
dynamic | static | |||||||||||
d | TKN1) | nmax | D | L | b | t | C | C0 | TR | |||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
CSK..P | 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | ||
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..P-2RS | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 |
Notes:
1) T Max = 2 × T KN
2) Keyway To DIN 6885.3
Size 40 Keyway To DIN 6885.1
