CKZ-C Wedge type One Way Clutch Bearings

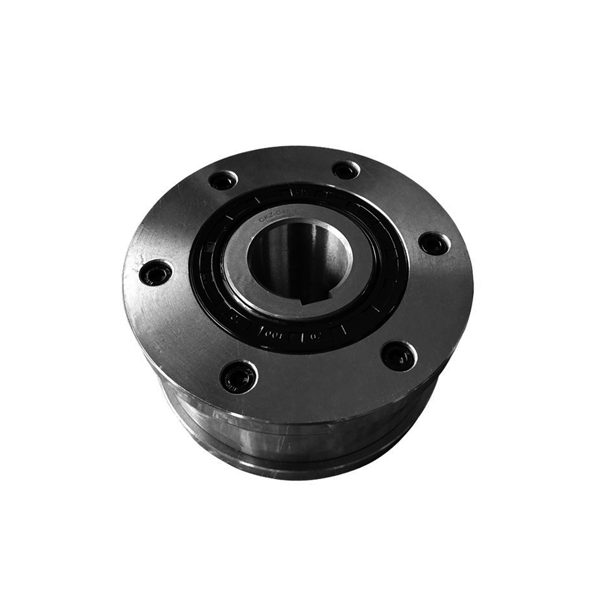

CKZ-C60190 CKZ-C Series Wedge type One Way Clutch Bearing

>DC type is wedge retainer one way clutch bearing without inner ring and outer ring. This model must be fitted with custom designed inner and outer rings, bearings supporting axial and radial loads, and lubricants and oil seals.

>The original factory can provide the standard type of inner ring and outer ring.
Inquiry NowContact Us

CONTACT NOW down load to pdf

Details

Tags

Wedge type clutch one way bearing, including outer race and set out the inner race seat, seat within the outer race and radial distance and coaxial set in relative rotation, multiple set between the outer circle and inner race of wedge, is used to transmit torque, the maintaining of wedge ring frame, as well as spring, the wedge between cage and the bearing in the mesh along one direction biasing wedge, It is characterized in that a cylindrical part is maintained, a radial extension of the window part, the wedge is installed in the window part for pivot movement, and the spring part by the cylindrical part of the outer circumference of the surface along the basically circular guide.

TYPE	RATED TORQUE [N·m]	OVERRUNNING SPEEDS [R/Min]		DIMENSION IN MM									WEIGHT [Kg]
		OVERRUNNING SPEEDS [R/Min]		OUTER RACE				INNER RACE			OTHER SIZE
		INNER RACE	OUTER RACE	D [H7]	B	n-M	bw×tw	D [H7]	C	bn×tn	D1	L
CKZ-C1262	92	840	510	62	26	6-M5	4×2.5	12	50	4×1.8	70	48	0.95
