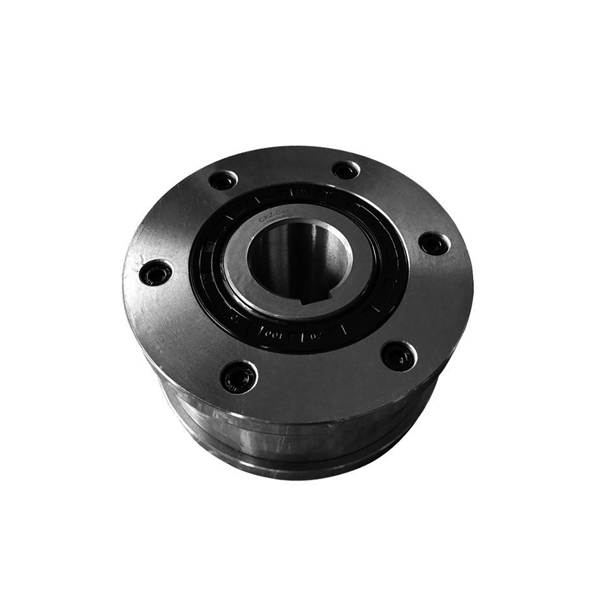

The wedge-type clutch one way bearing consists of an outer ring, a figure-8 wedge, a holding spring, and an inner ring. These wedges work in a similar manner to the rollers in the roller type one-way clutch.

Wedge type clutch one way bearing, including outer race and set out the inner race seat, seat within the outer race and radial distance and coaxial set in relative rotation, multiple set between the outer circle and inner race of wedge, is used to transmit torque, the maintaining of wedge ring frame, as well as spring, the wedge between cage and the bearing in the mesh along one direction biasing wedge, It is characterized in that a cylindrical part is maintained, a radial extension of the window part, the wedge is installed in the window part for pivot movement, and the spring part by the cylindrical part of the outer circumference of the surface along the basically circular guide.
