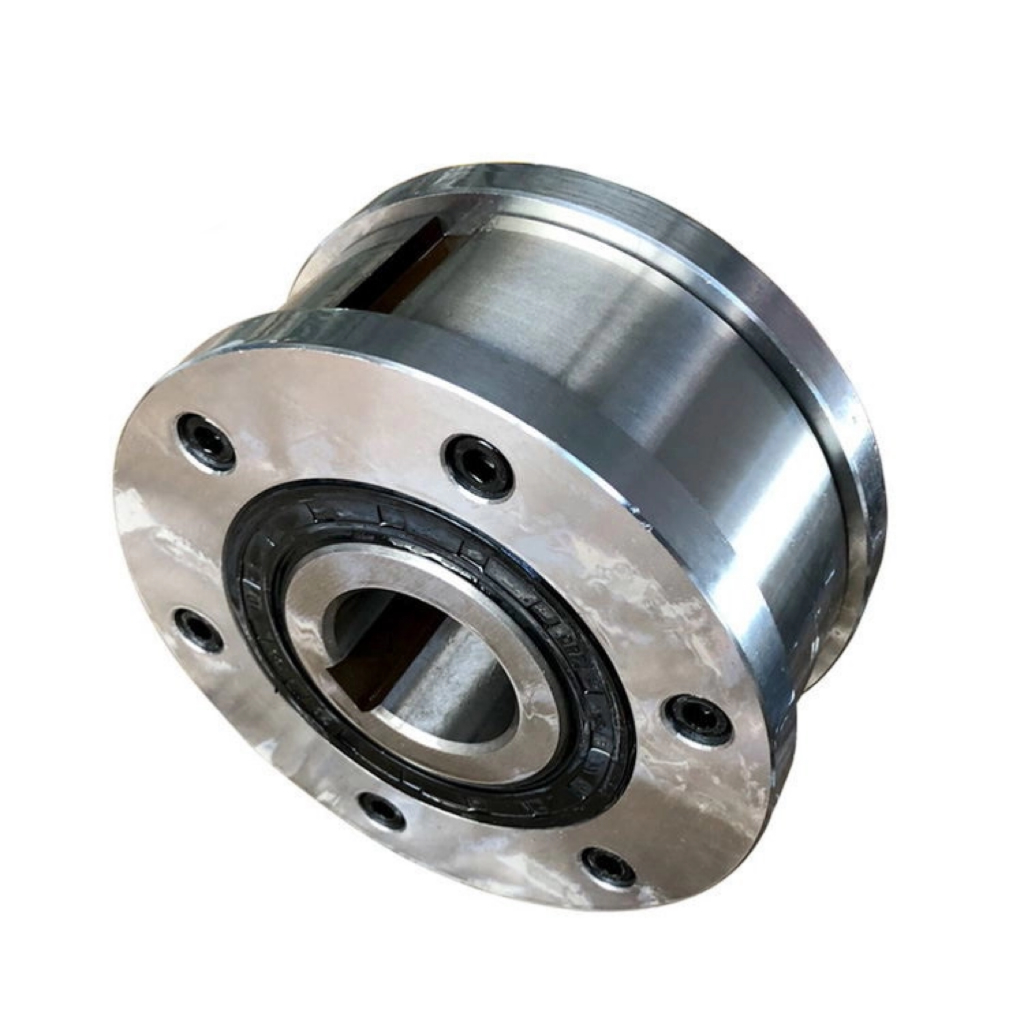

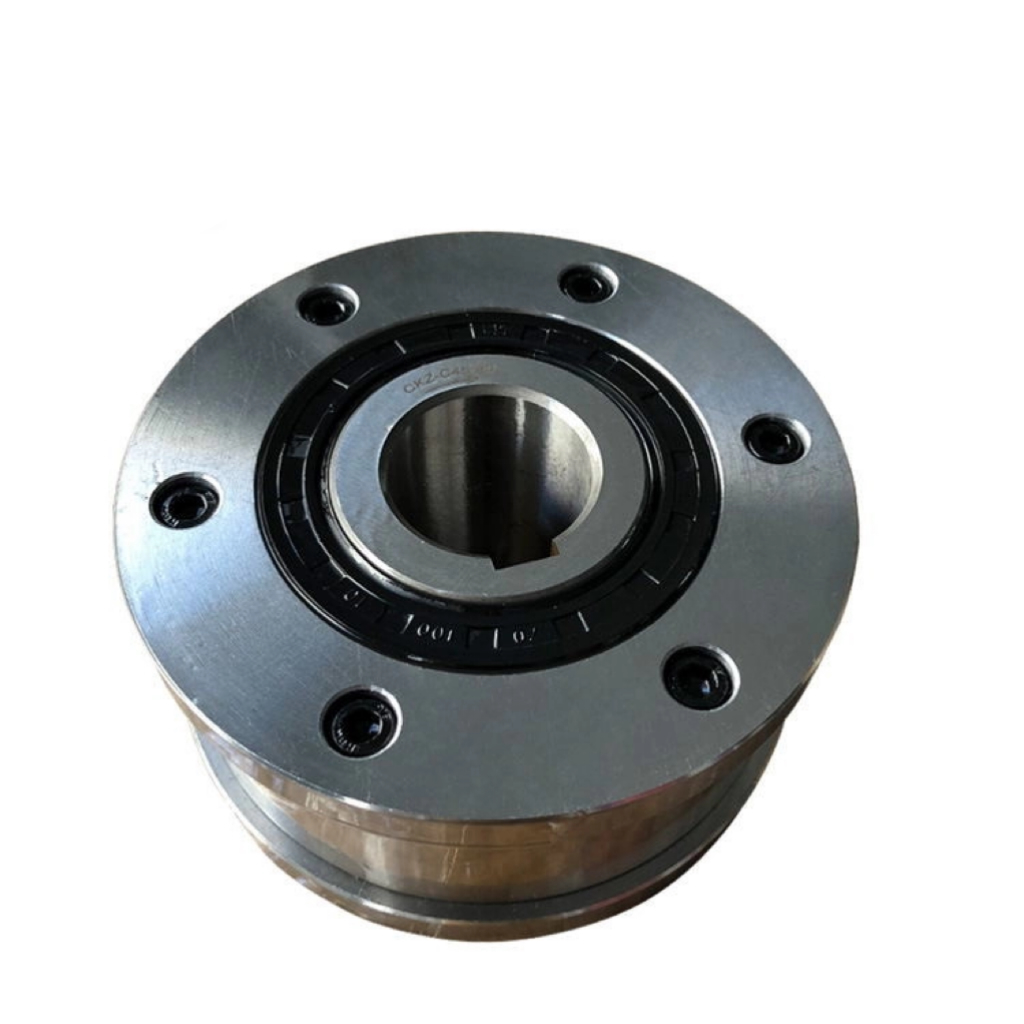

CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer

CKZ-C Series Is A Wedge Type One-Way Clutch, Which Contains Two Sets Of Ball Bearing Supports. According To Different Needs, The Factory Contains Lubricating Oil Or Grease.

CONTACT NOW down load to pdf

Details

Tags

CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer

Name:	CKZ-C Wedge Type One Way Clutch Bearing For Packing And Conveyer	Material:	GCR 15 Bearing Steel
Type:	Cam Bearings	Thichness (mm):	26-115
Torque (Nm）:	92-1000	Weight (Kg):	0.95-81.98
Bore Size(mm):	62-320	Warranty:	12 Months

Production Introduction

CKZ-C Series Is A Wedge Type One-Way Clutch, Which Contains Two Sets Of Ball Bearing Supports. According To Different Needs, The Factory Contains Lubricating Oil Or Grease.

The Inner Ring And The Shaft, The Outer Ring And The Workpiece Are Connected By Keys, And The Workpiece Is Clamped By The End Caps.
Commonly Used In Textile, Chemical, Food, Packaging, Printing And Other Mechanical Equipment. Used As An Overrunning Or Positioning Feed Clutch.

Products Parameters

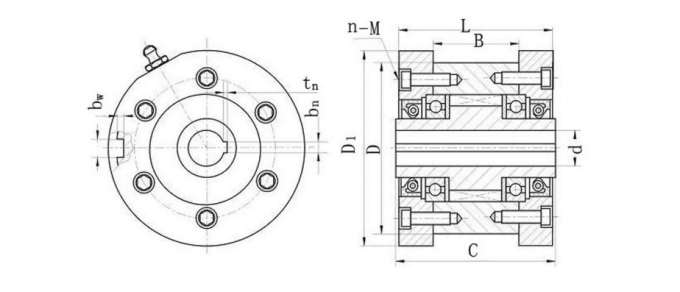

TYPE	RATED TORQUE [N·m]	OVERRUNNING SPEEDS [R/Min]		DIMENSION IN MM									WEIGHT [Kg]
		OVERRUNNING SPEEDS [R/Min]		OUTER RACE				INNER RACE			OTHER SIZE
		INNER RACE	OUTER RACE	D [H7]	B	n-M	bw×tw	D [H7]	C	bn×tn	D1	L
CKZ-C1262	92	840	510	62	26	6-M5	4×2.5	12	50	4×1.8	70	48	0.95
CKZ-C1568	115	840	510	68	26	6-M6	4×2.5	15	50	4×1.8	76	48	1.13
CKZ-C2075	158	700	425	75	27	6-M5	5×3.0	20	51	4×1.8	83	49	1.40
CKZ-C25100	448	630	340	100	33	6-M8	6×3.5	25	57	6×2.8	104	55	3.07
CKZ-C30120	530	560	340	120	35	6-M8	12×5	30	63	12×3.3	130	61	4.68
CKZ-C35130	920	490	255	130	37	6-M8	12×5	35	65	12×3.3	140	63	5.75
CKZ-C40140	1516	420	212.5	140	43	6-M8	12×5	40	74	12×3.3	150	72	7.67
CKZ-C45150	1500	420	212.5	150	48	6-M8	14×5.5	45	78	14×3.8	160	76	9.74
CKZ-C50170	2350	350	170	170	51	6-M8	16×6.0	50	84	16×4.3	180	82	13.34
CKZ-C60190	3100	280	170	190	55	6-M8	18×7.0	60	94	18×4.4	200	92	17.71
CKZ-C80200	3960	210	127.5	200	60	6-M10	18×7.0	80	98	18×4.4	210	96	19.98
CKZ-C110250	7000	180	110	250	104	8-M8	32×11	110	146	32×7.4	262	144	50.21
CKZ-C110320	10000	130	80	320	115	8-M20	28×10	110	180	28×6.4	330	175	81.98
