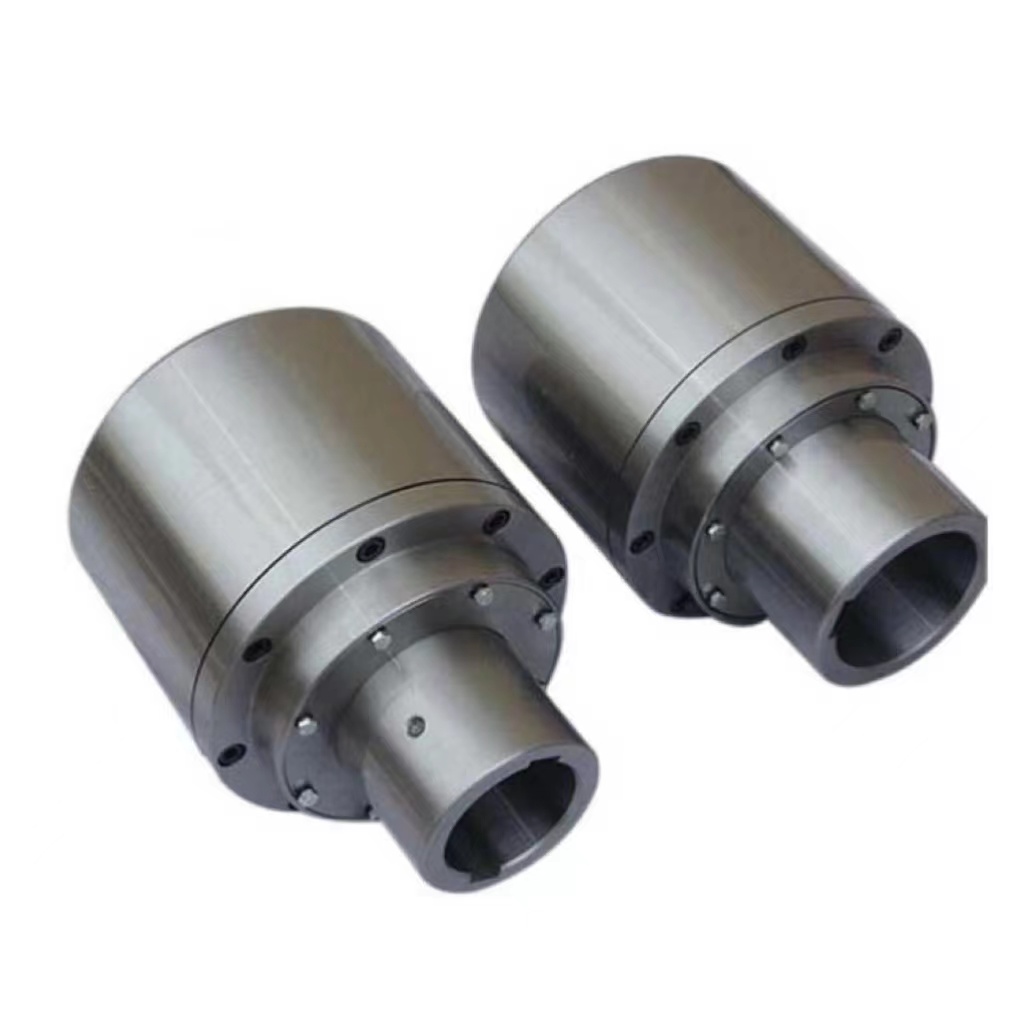

CKL-C Wedge Bearing One Sided Bearing Clutch With More Torque

Overrunning Clutch Is A Basic Component With The Development Of Mechatronics Products. It Is An Important Component For Power Transmission And Separation Between Prime Mover And Working Machine Or Between Driving Shaft And Driven Shaft In Machine. It Is A Device With Self Clutch Function By Using The Speed Change Or Rotation Direction Change Of The Driving And Driven Parts.

CONTACT NOW down load to pdf

Details

Tags

Highlight: CKL-C Wedge Bearing, Wedge Bearing one sided, CKL-C one sided bearing

Name:	CKL-C One Way Cam Clutch	Material:	GCR 15 Bearing Steel
Type:	One Way Bearings	Inner Race(mm):	2500-500
Torque (Nm）:	580-38000	Weight (Kg):	32.5-142
Bore Size(mm):	30-130

Production Introduction

The Main Standards Of Overrunning Clutch Include More Than 20 Types, Including CKA Type, CKB Type (B200 Series), CKZ Type, CKD Type (UHF Type), CKX Type, NYD (NJ) Type And CKF Type, NF Type Non-Contact Wedge Overrunning Clutch (NF Type Backstop), CG Type Roller Overrunning Clutch, CGK Type Controllable Overrunning Clutch And CKS Type Two-Way Overrunning Clutch, With A Total Of More Than 1000 Specification Series.

Type CKL-C Is A Sprag Type Freewheel, Self-Contained, Sealed And Bearing Supported, Unit Is Delivered Oil Lubricated.

It Used To Transmit Torque Or Back Off In Two Faced Shafts With Displacement.Compare With Type CKL-A,It Can Transmit Much More Torque.

This Series Is Widely Used In Packaging, Mining, Metallurgy, Cement, Electric Power And Other Machinery. It Is Often Used As The Switching Device Of Two Speed Drive In The Transmission System Of Overrunning Clutch And Medium And Low Speed Transmission.

Products Parameters

	Nm	r/min		mm
	Nm	out race	Inner race	dH7	D k (H7)	D	D 1	L	L 1	L 2	b n ×t n	KG
CKL-C30110	580	740	2500	30	28-45	110	66	146	53	86	8*3.3	12.5
CKL-C40125	800	700	2500	40	36-55	125	78	168	62	98	10*3.3	14.5
CKL-C45130	815	710	2500	45	42-58	130	80	168	62	98	12*3.3	16
CKL-C50150	1400	610	2000	50	48-65	150	94	207	82	117	14*3.8	24
CKL-C55165	1700	600	2000	55	54-68	165	100	233.5	95	130	14*3.8	35.6
CKL-C60170	2200	490	2000	60	58-70	170	108	244	97	138	16*4.3	37
CKL-C70190	4420	480	2000	70	68-78	190	115	312.5	130	172.5	16*4.3	67.5
CKL-C80210	6800	450	1500	80	78-85	210	125	340	153	177	18*4.4	80
CKL-C90230	11000	450	1500	90	90-98	230	135	369	150	209	22*5.4	127.5
CKL-C100270	16000	400	1500	100	96-105	270	145	422.5	186	222.5	25*5.4	162.5
CKL-C110320	22000	350	1000	110	110-125	320	160	455	188	252	28*6.4	203
CKL-C120360	25000	330	1000	120	115-135	360	190	480	202	262	32*7.4	263
CKL-C130440	38000	280	500	130	125-150	400	210	500	207	275	36*8.4	342
