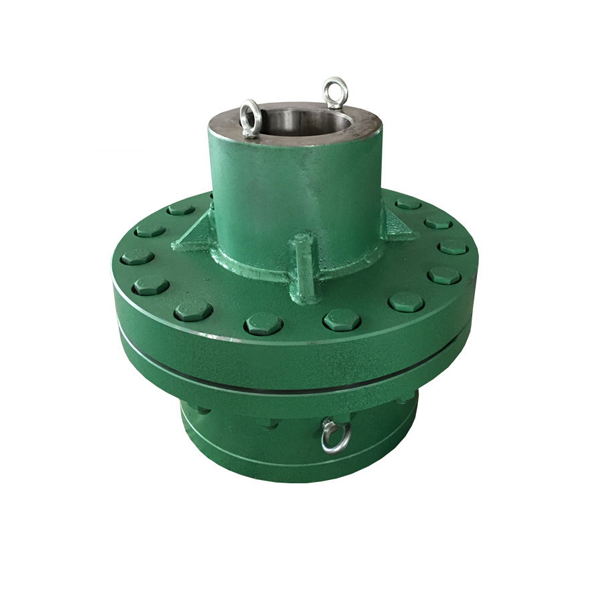

CKL-B Series One Way Cam Clutch

Type CKL-B is a sprag clutch bearing, self contained,sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs greaseor oil when used.

CONTACT NOW down load to pdf

Details

Tags

Features:

Type CKL-B is a sprag clutch bearing, self contained,sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs greaseor oil when used.

It has same character and dimension as CKL-A.
This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic. and metallury.mine and so on.

Dimensions and Capacities:

Type	Nominal Torque Nm	Overrunning Limiting Speeds		Dimension in Cintour mm									Weight

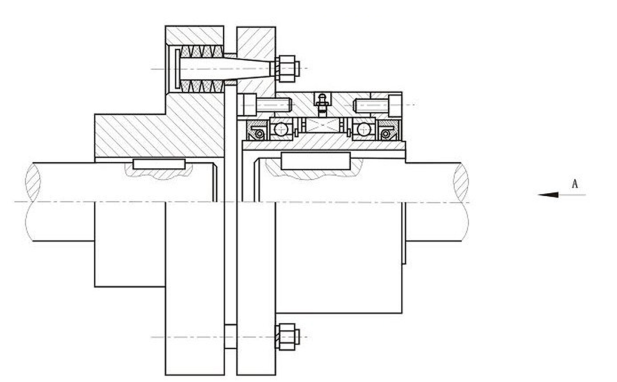

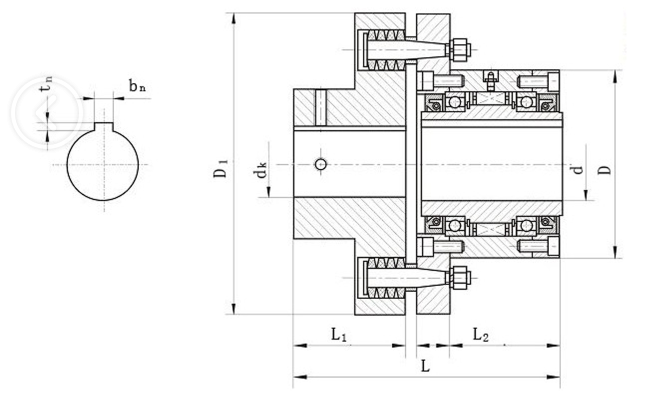

Type	Nominal Torque Nm	n min	n max	d H7	d1 H7	D	D1 H7	L	L1	L2	B	bn×tn	Kg
CKL-B2590	230	800	2500	25	20-40	90	130	127.5	50	60	17.5	4×1.8	6.4
CKL-B30100	400	780	2500	30	20-50	100	160	146	60	66	20	5×2.3	11
CKL-B35110	580	740	2500	35	25-65	110	190	168	75	74	19	6×2.8	17
CKL-B40125	820	720	2500	40	25-65	125	190	178	75	86	17	6×2.8	19
CKL-B45130	840	660	2500	45	25-65	130	190	178	75	86	17	6×2.8	19
CKL-B50150	1400	610	2000	50	30-75	150	225	207	90	92	25	14×3.8	31
CKL-B55160	1600	600	2000	55	35-90	160	270	233.5	100	104	29.5	16×4.3	47
CKL-B60170	2200	490	2000	60	35-90	170	270	244	94	114	30	18×4.4	49
CKL-B70190	4500	480	2000	70	45-110	190	340	312.5	140	134	38.5	20×4.9	90
CKL-B80210	6800	450	1500	80	55-125	210	380	340	160	142	35	22×4.9	107
CKL-B90230	11000	420	1500	90	65-140	230	440	369	160	159	50	25×6.4	170
CKL-B100270	16000	400	1500	100	75-160	270	500	422	200	182	40.5	28×6.4	230
