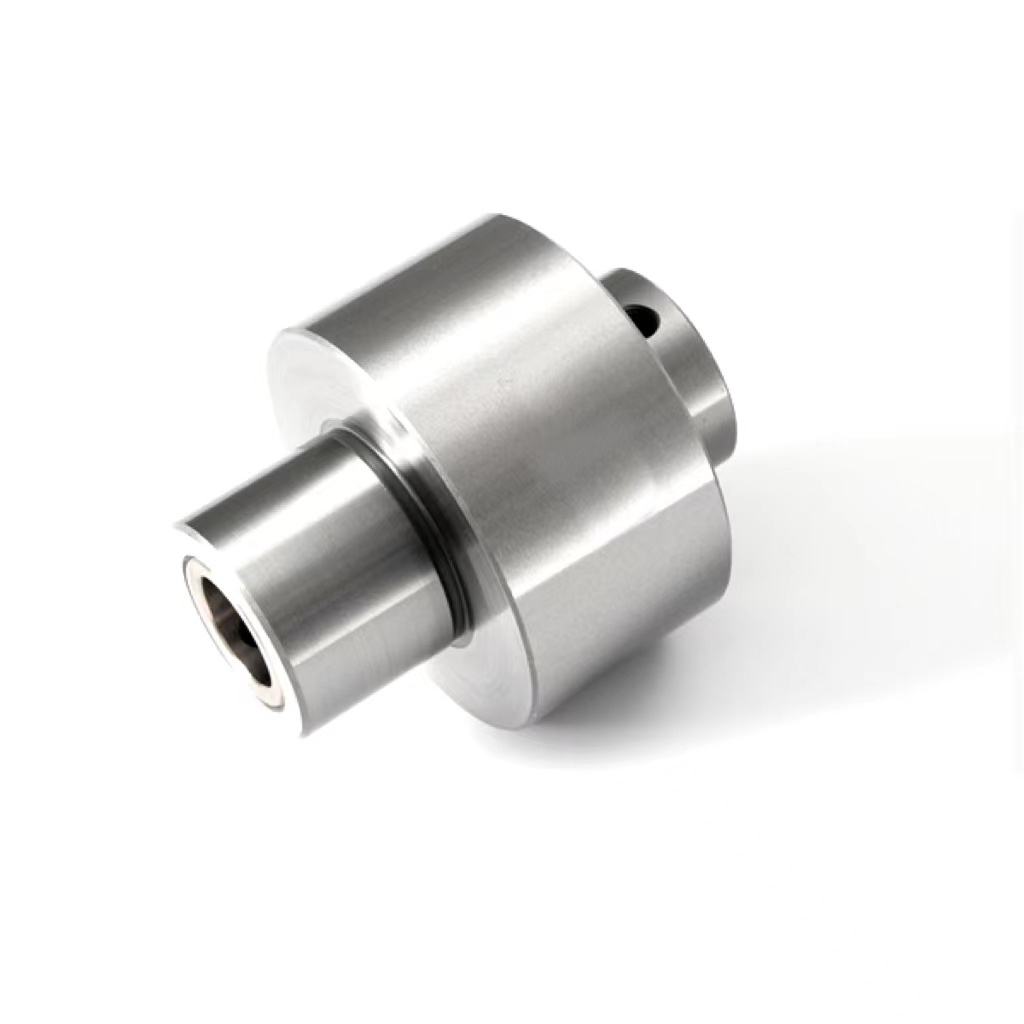

Those products are designed by the one way clutch bearing supplier. TIANNIU one way clutch bearing supplier is the best choice for you. one way clutch bearing is a kind of bearing that can rotate freely in one direction and lock in another direction. TIANNIU is strive to be the bestone way clutch bearing supplier.
Product Parameter:
Type | Normal Torque(Nm) | Overrunning Speed(r/min) | Dimension(mm) | Weight(kg) | |||||||||||
Inner race | Outer race | d(H7) | d1 (F7) | D | D 1(h7) | F | H | L | m | n | b w×t w | b n ×t n | |||
CK-L1560 | 86 | 1260 | 765 | 15 | 15 | 60 | 26 | 25 | 32 | 70 | 1.3 | 21 | 4*2.5 | 4*1.5 | 0.58 |
CK-L2072 | 225 | 1050 | 680 | 20 | 20 | 72 | 38 | 33 | 38 | 82 | 1.7 | 29 | 6*3.5 | 6*2.8 | 1.17 |
CK-L2585 | 330 | 840 | 552.5 | 25 | 25 | 85 | 45 | 33 | 40 | 85 | 1.7 | 28 | 14*4.5 | 8*3.3 | 1.67 |
CK-L3085 | 330 | 840 | 550 | 30 | 30 | 85 | 48 | 35 | 35 | 85 | 1.7 | 31 | 8*4.0 | 8*3.3 | 1.78 |
CK-L3095 | 490 | 700 | 340 | 30 | 30 | 95 | 60 | 37 | 41 | 92 | 2.2 | 30 | 8*4.0 | 8*3.3 | 2.5 |
CK-L40115 | 900 | 560 | 255 | 40 | 40 | 115 | 65 | 37 | 50 | 100 | 2.7 | 30 | 12*5.0 | 12*3.3 | 3.6 |
CK-L45135 | 1240 | 490 | 255 | 45 | 45 | 135 | 75 | 41 | 54 | 112 | 2.7 | 35 | 14*5.5 | 14*3.8 | 6 |
Mounting example:
