UKF206
  • UKF206

Cast Iron UKF206 Pillow Housings Pillow Block Bearing

down load to pdf

Details

Tags

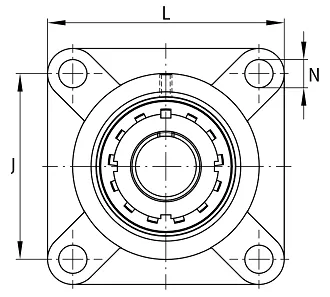

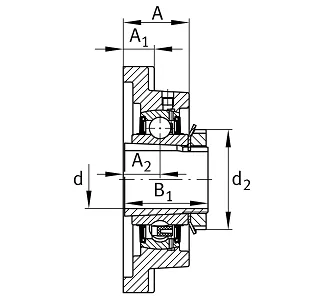

d
25 mm
 Bore diameter
L
108 mm
 Flange width
Cr
20,700 N
 Basic dynamic load rating, radial
C0r
11,300 N
 Basic static load rating, radial
Cur
590 N
 Fatigue load limit, radial
≈m
1.17 kg
 Weight
J
83 mm
 Distance fixing bore
N
12 mm
 Fixing bore
n
4
 Number of screwing holes
A
31 mm
 Height housing
A1
14 mm
 Thickness of flange
A2
18 mm
 Distance raceway
B
25 mm
 Width
B1
38 mm
 Locking collar total width
d3
45 mm
 Outside diameter eccentric locking collar
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
