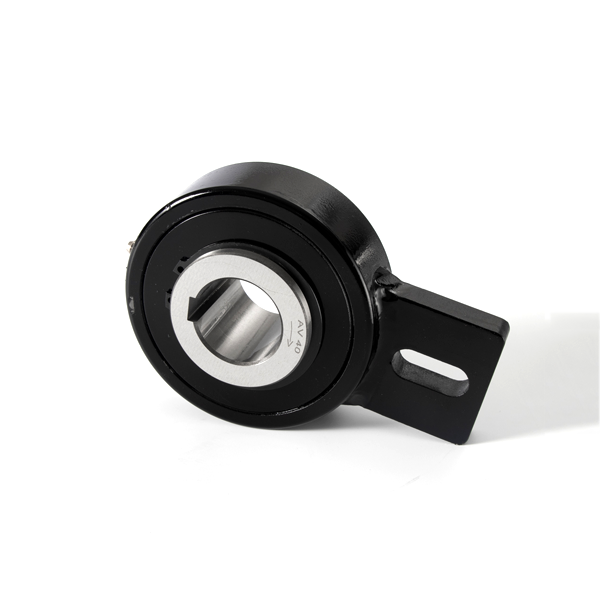

BSEU Series One Way Freewheel Clutch Bearing

Details

Tags

BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.

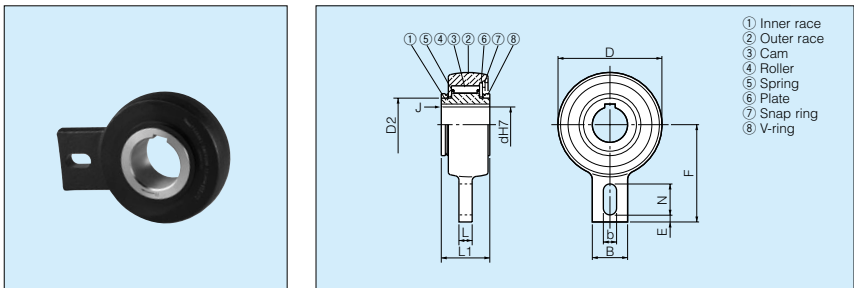

Model	Bore Size		Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. Min	W. Max
Model	Dia (H7)	Keyway	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	D	D2	L1	L	B	F	b	N	E	J	W. Min	W. Max
BSEU25	20	6×2.8	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU25	25	8×3.3	216	500	83	42	35	12	40	90	15	35	5	1	0.999	0.948
BSEU40	20	6×2.8	1,440	450	118	60	55	15	40	110	15	35	8	1.5	3.781	3.363
BSEU40	25	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40	30	8×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40	35	10×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU40	40	12×3.3	1,440	450	118	60	55	15	40	110	15	35	8	1.5
BSEU70	45	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5	7.607	6.541
BSEU70	50	14×3.8	3,140	350	165	90	59	20	80	140	18	35	10	1.5
BSEU70	55	16×4.3	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70	60	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70	65	18×4.4	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU70	70	20×4.9	3,140	350	165	90	59	20	80	140	18	35	10	2
BSEU90	75	20×4.9	4,700	250	190	120	63	20	80	165	20	40	15	2	10.046	9.265
BSEU90	80	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90	85	22×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
BSEU90	90	25×5.4	4,700	250	190	120	63	20	80	165	20	40	15	2
