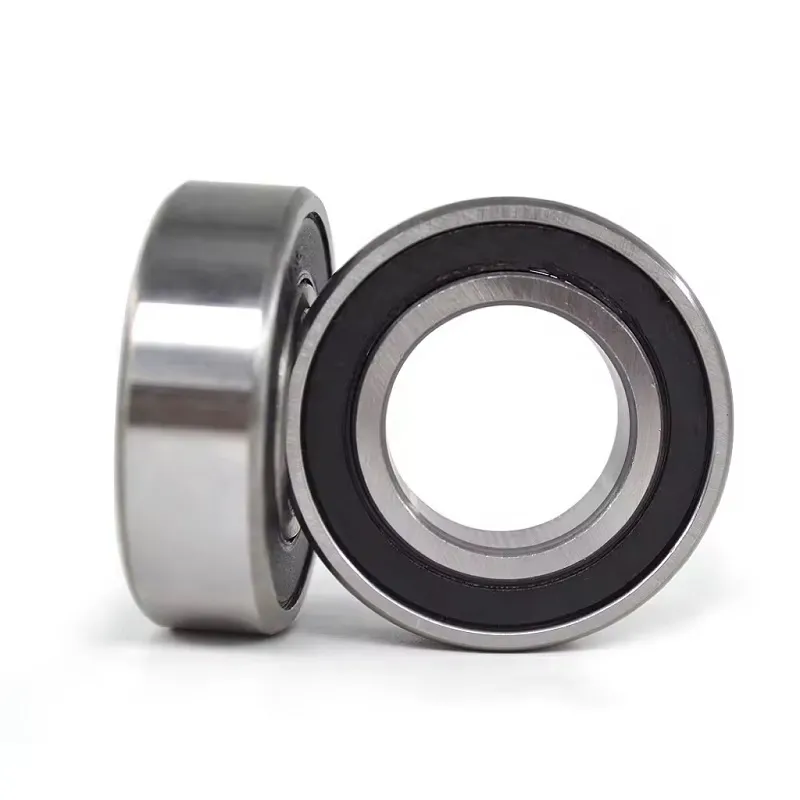

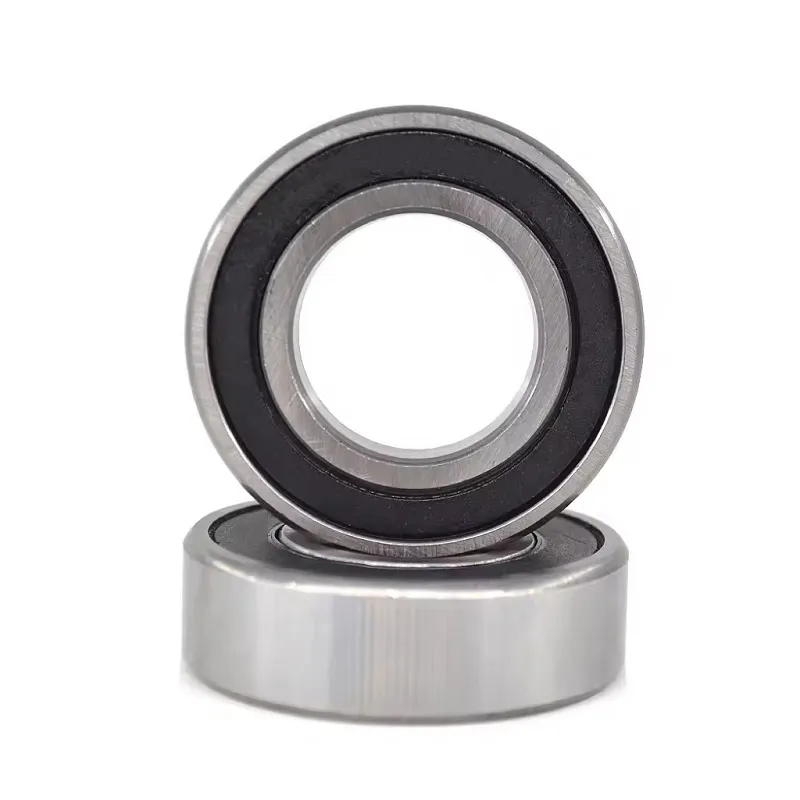

6403 2RS High Quality Deep Groove Ball Bearing 17X62X17

down load to pdf

Details

Tags

Deep groove ball bearing 64, single row, steel sheet metal cage

d
17 mm
 Bore diameter
D
62 mm
 Outside diameter
B
17 mm
 Width
Cr
23.800 N
 Basic dynamic load rating, radial
C0r
11.500 N
 Basic static load rating, radial
Cur
780 N
 Fatigue load limit, radial
nG
16.200 1/min
 Limiting speed
nϑr
11.600 1/min
 Reference speed
≈m
0,256 kg
 Weight
da min
26 mm
 Minimum diameter shaft shoulder
Da max
53 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1,1 mm
 Minimum chamfer dimension
D1
50,18 mm
 Shoulder diameter outer ring
D2
52,53 mm
 Caliber diameter outer ring
d1
36,4 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
12,4
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
