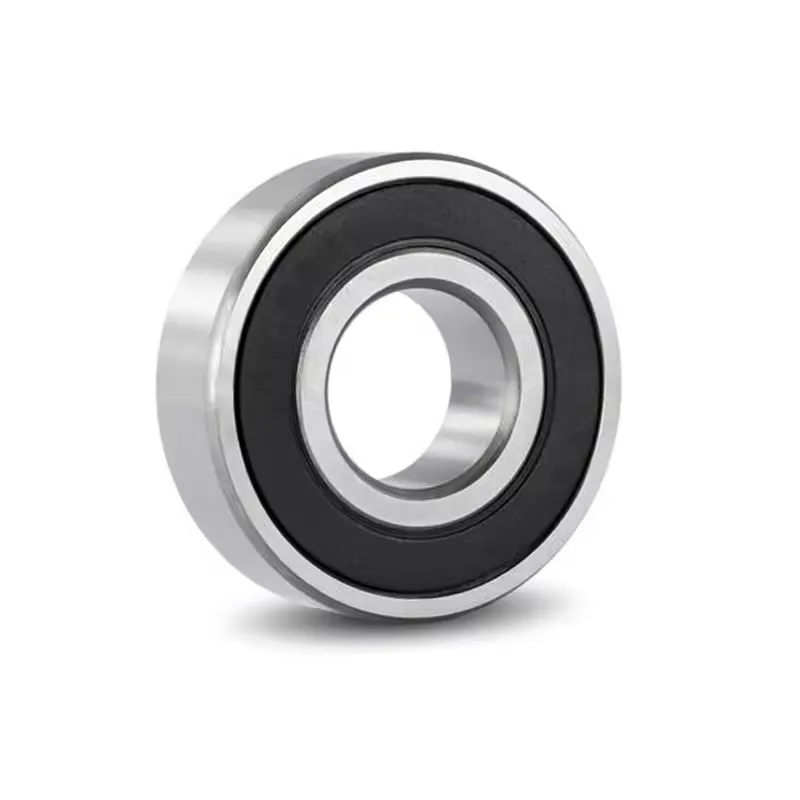

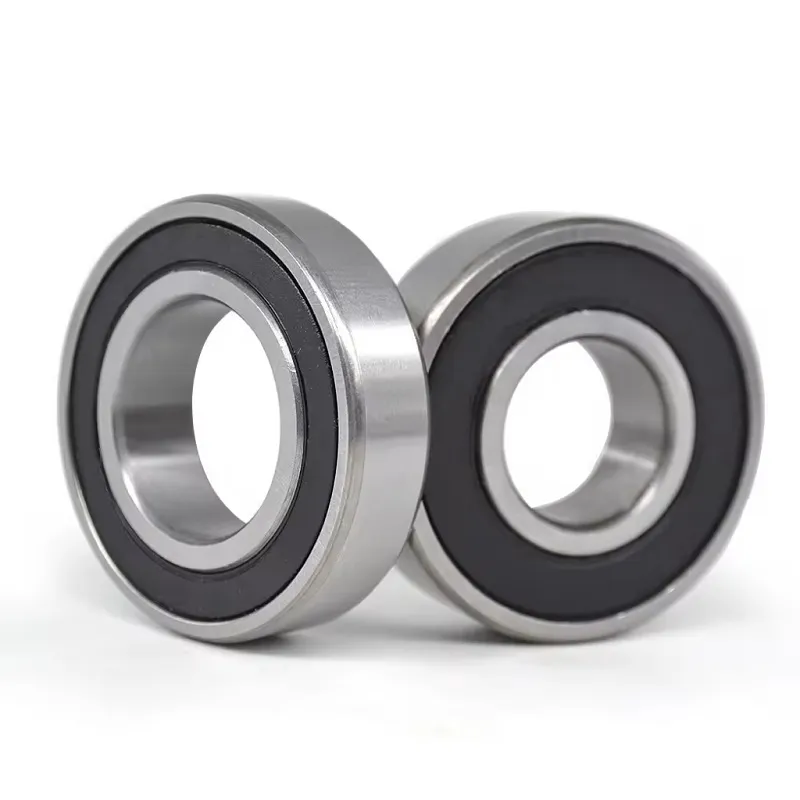

Name: 6224 High Quality Deep Groove Ball Bearing 120X215X40
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6224 High Quality Deep Groove Ball Bearing 120X215X40

CONTACT NOW down load to pdf

Details

Tags

Deep groove ball bearing 62, single row, steel sheet metal cage

d	120 mm	Bore diameter
D	215 mm	Outside diameter
B	40 mm	Width
C_r	154.000 N	Basic dynamic load rating, radial
C_0r	123.000 N	Basic static load rating, radial
C_ur	6.400 N	Fatigue load limit, radial
n_G	4.200 1/min	Limiting speed
n_ϑr	4.250 1/min	Reference speed
≈m	5,5 kg	Weight
d_{a min}	132 mm	Minimum diameter shaft shoulder
D_{a max}	203 mm	Maximum diameter of housing shoulder
r_{a max}	2,1 mm	Maximum fillet radius
r_min	2,1 mm	Minimum chamfer dimension
D₁	185,04 mm	Shoulder diameter outer ring
d₁	151,46 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	14,8	Calculation factor
