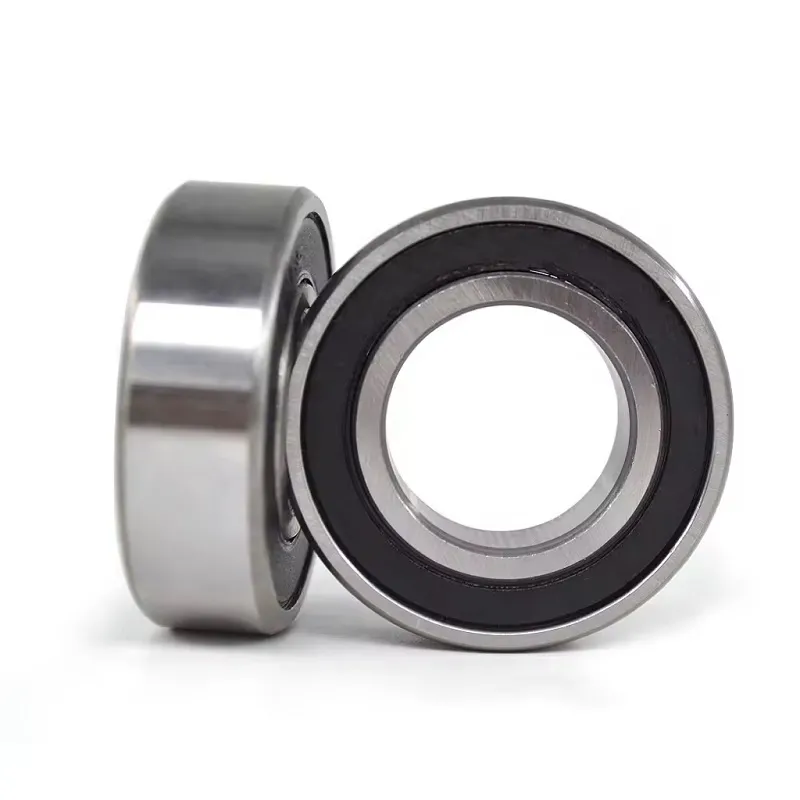

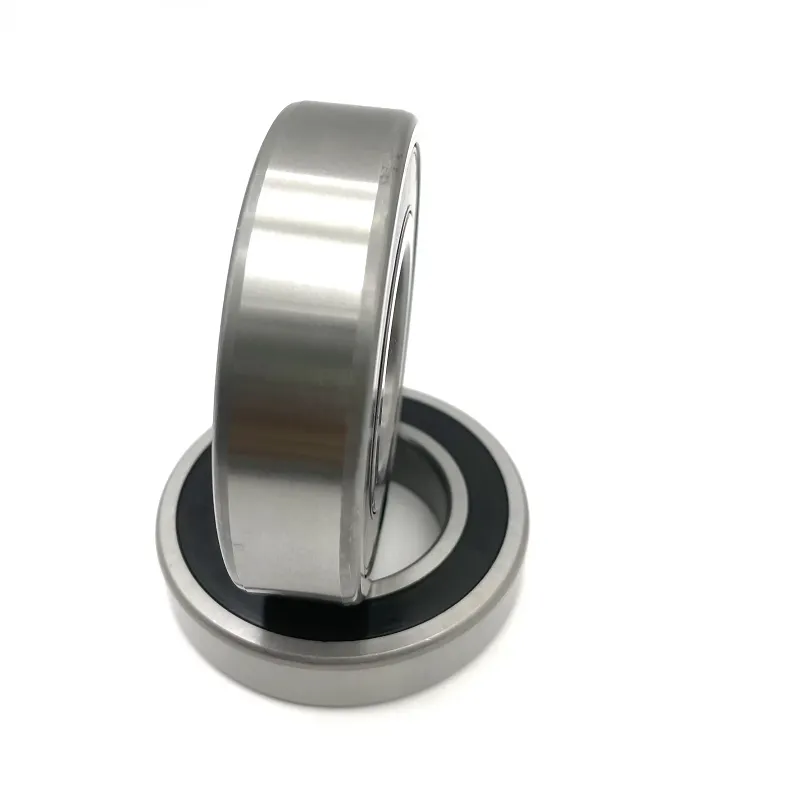

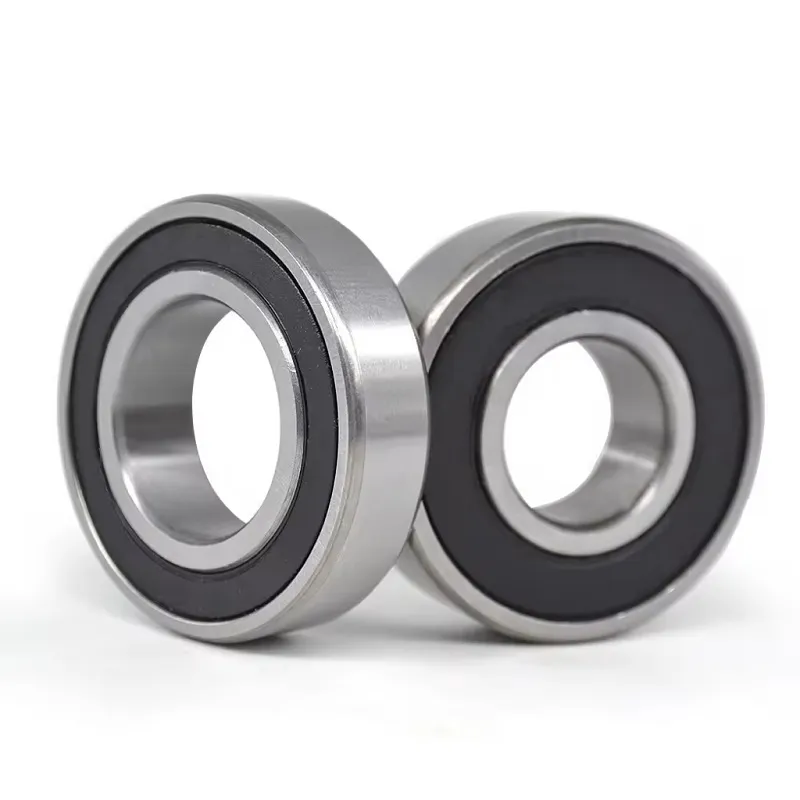

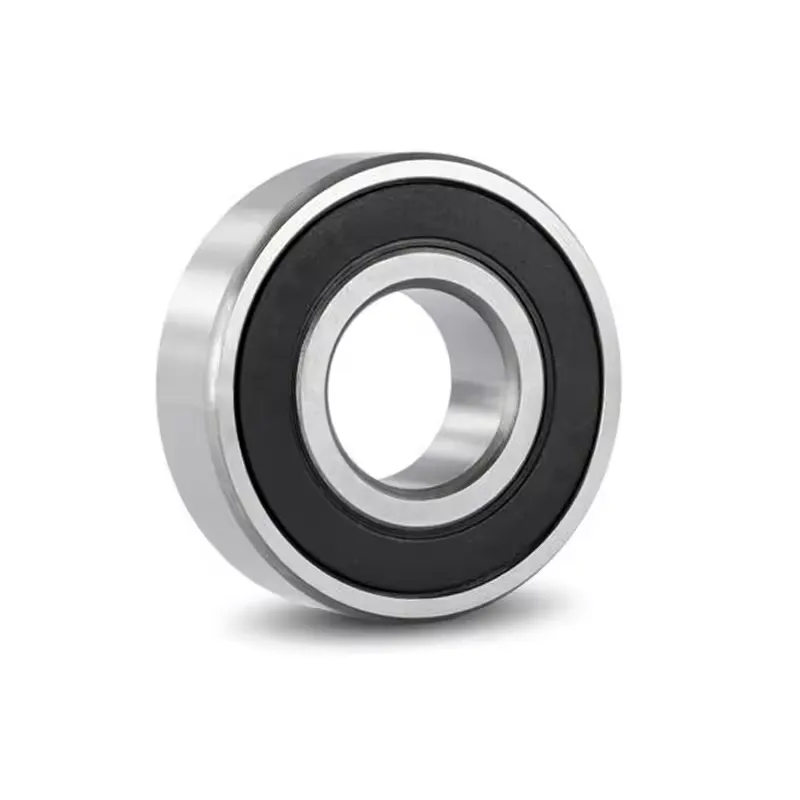

6219 High Quality Deep Groove Ball Bearing 95X170X32

down load to pdf

Details

Tags

Deep groove ball bearing 62, single row, steel sheet metal cage

d
95 mm
 Bore diameter
D
170 mm
 Outside diameter
B
32 mm
 Width
Cr
116.000 N
 Basic dynamic load rating, radial
C0r
82.000 N
 Basic static load rating, radial
Cur
4.800 N
 Fatigue load limit, radial
nG
5.300 1/min
 Limiting speed
nϑr
4.950 1/min
 Reference speed
≈m
2,73 kg
 Weight
da min
107 mm
 Minimum diameter shaft shoulder
Da max
158 mm
 Maximum diameter of housing shoulder
ra max
2,1 mm
 Maximum fillet radius
rmin
2,1 mm
 Minimum chamfer dimension
D1
146,72 mm
 Shoulder diameter outer ring
d1
118,66 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
150 °C
 Operating temperature max.
f0
14,5
 Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
