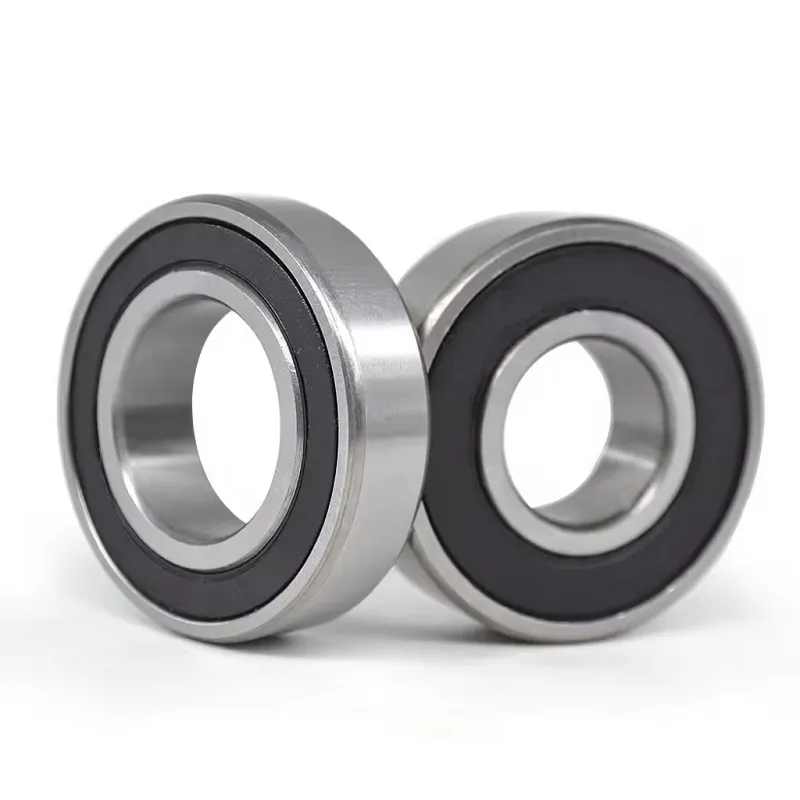

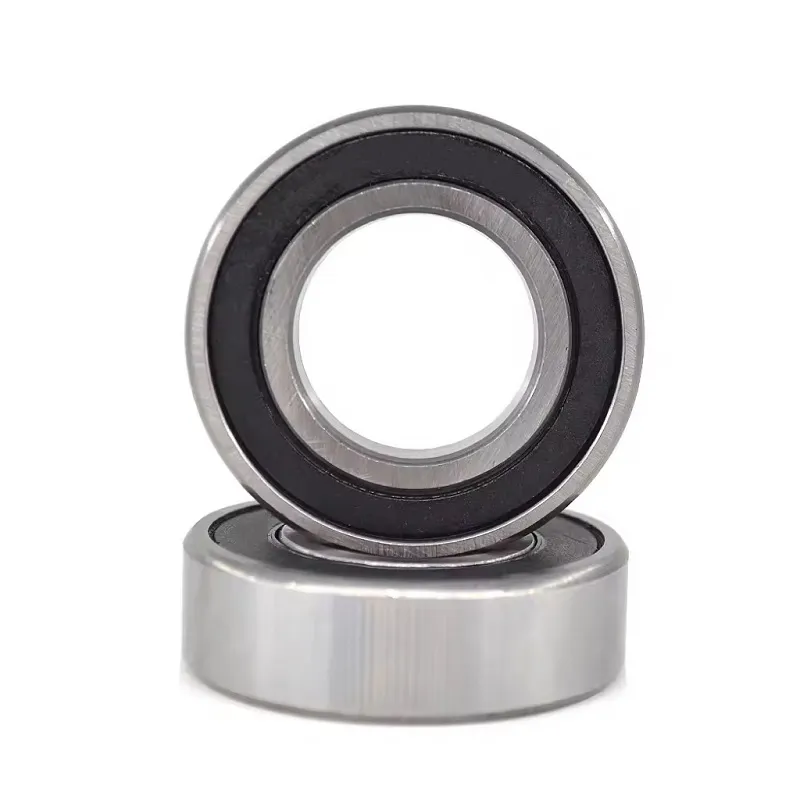

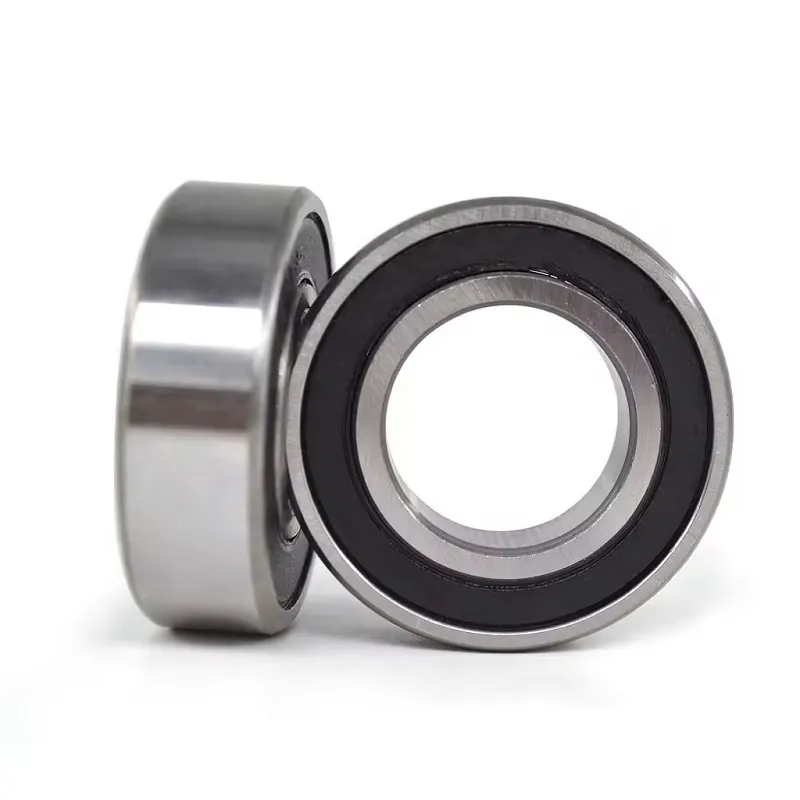

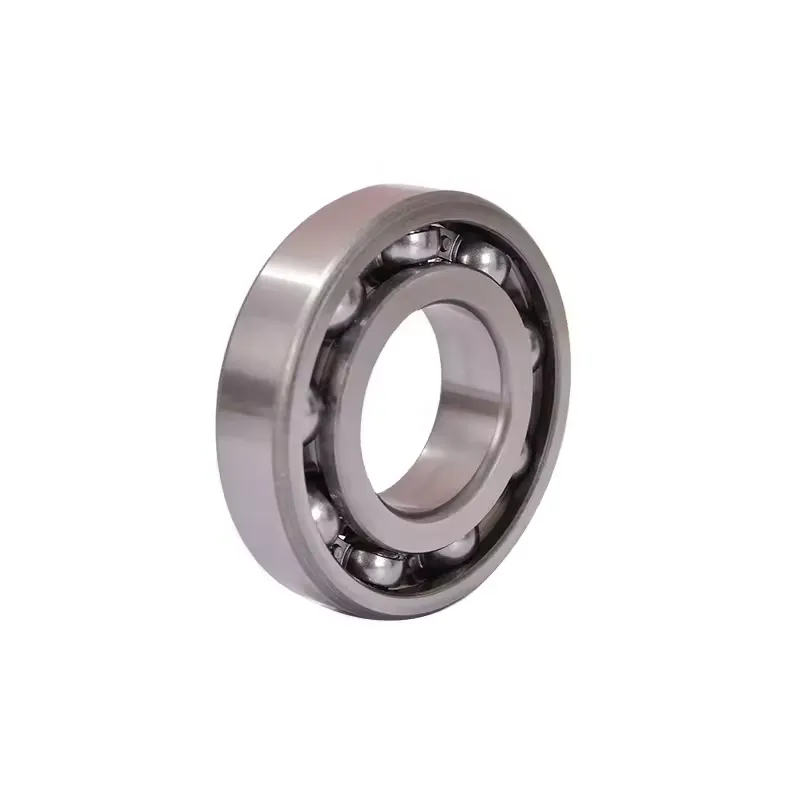

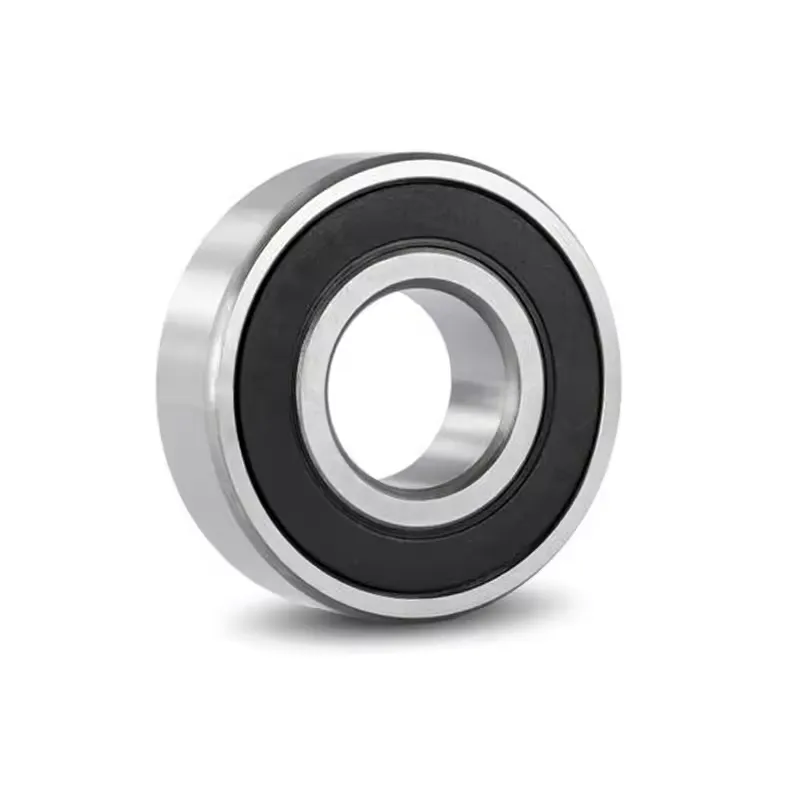

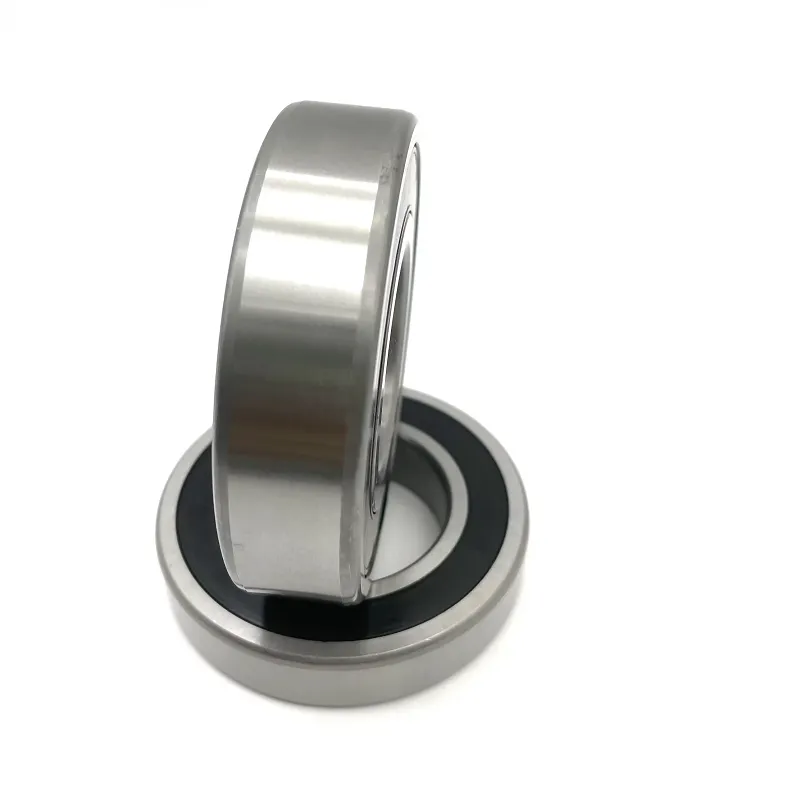

6207 High Quality Deep Groove Ball Bearing 35X72X17

down load to pdf

Details

Tags

Deep groove ball bearing 62, single row, steel sheet metal cage

d
35 mm
 Bore diameter
D
72 mm
 Outside diameter
B
17 mm
 Width
Cr
27.500 N
 Basic dynamic load rating, radial
C0r
15.300 N
 Basic static load rating, radial
Cur
950 N
 Fatigue load limit, radial
nG
13.800 1/min
 Limiting speed
nϑr
10.400 1/min
 Reference speed
≈m
0,282 kg
 Weight
da min
42 mm
 Minimum diameter shaft shoulder
Da max
65 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1,1 mm
 Minimum chamfer dimension
D1
60,66 mm
 Shoulder diameter outer ring
D2
63,34 mm
 Caliber diameter outer ring
d1
47,2 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
13,8
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
