6201 High Quality Deep Groove Ball Bearing 12X32X10

CONTACT NOW down load to pdf

Details

Tags

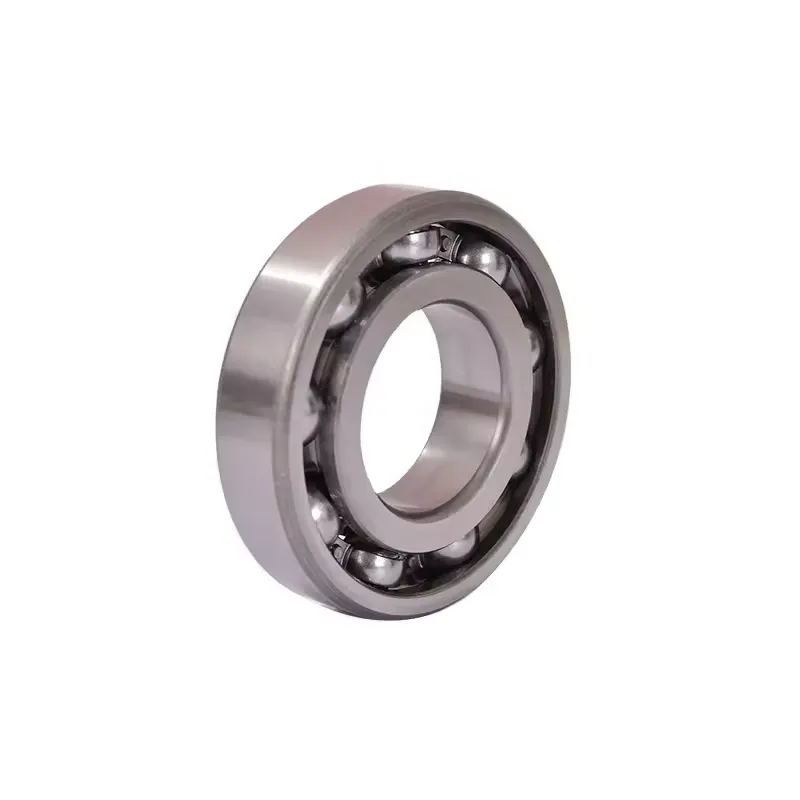

Deep groove ball bearing 62, single row, steel sheet metal cage

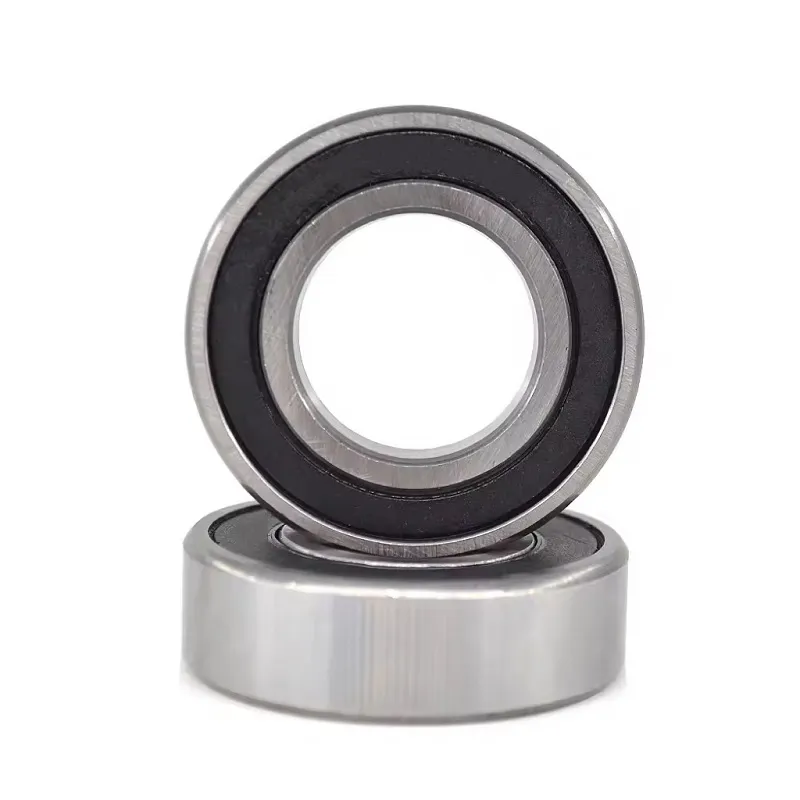

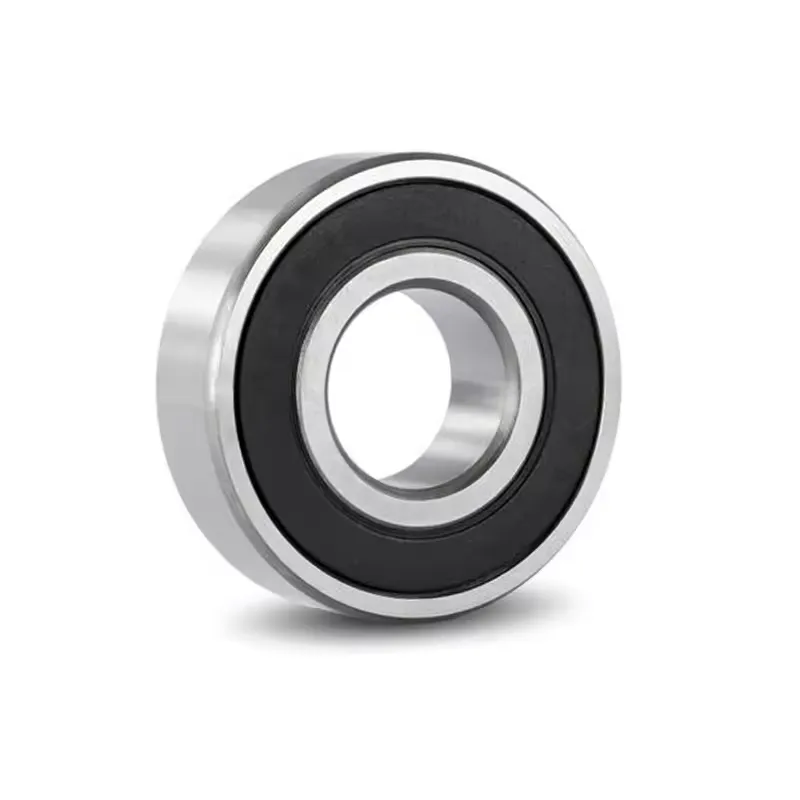

6201 High Quality Deep Groove Ball Bearing 12X32X10

d	12 mm	Bore diameter
D	32 mm	Outside diameter
B	10 mm	Width
C_r	7.300 N	Basic dynamic load rating, radial
C_0r	3.100 N	Basic static load rating, radial
C_ur	203 N	Fatigue load limit, radial
n_G	33.500 1/min	Limiting speed
n_ϑr	22.200 1/min	Reference speed
≈m	35,6 g	Weight
d_{a min}	16,2 mm	Minimum diameter shaft shoulder
D_{a max}	27,8 mm	Maximum diameter of housing shoulder
r_{a max}	0,6 mm	Maximum fillet radius
r_min	0,6 mm	Minimum chamfer dimension
D₁	25,82 mm	Shoulder diameter outer ring
D₂	27,35 mm	Caliber diameter outer ring
d₁	18,3 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	12,3	Calculation factor
