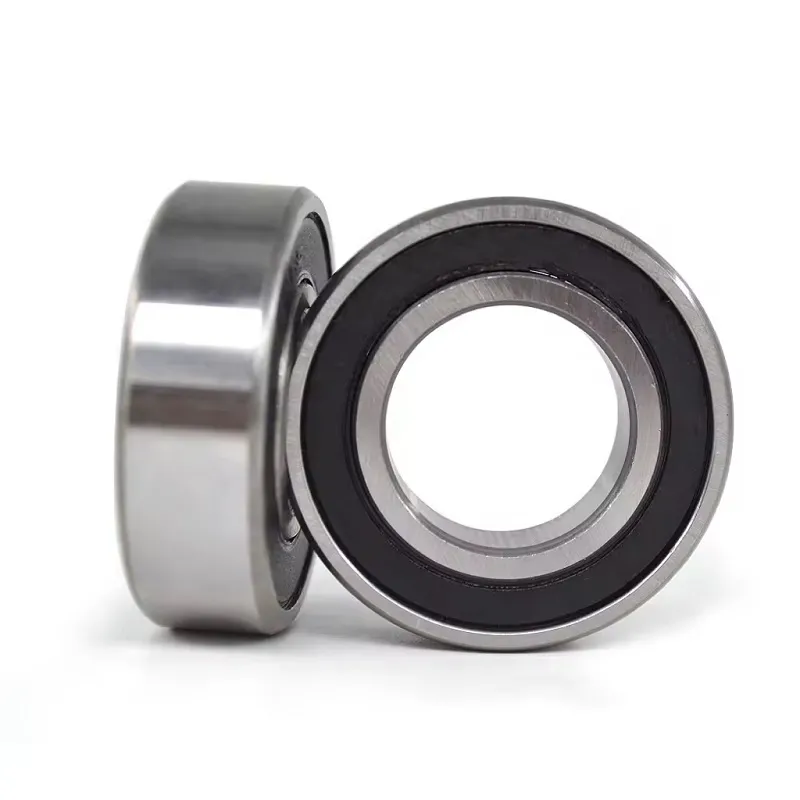

6022 High Quality Deep Groove Ball Bearing 110X170X28

down load to pdf

Details

Tags

Deep groove ball bearing 60, single row, steel sheet metal cage

d
110 mm
 Bore diameter
D
170 mm
 Outside diameter
B
28 mm
 Width
Cr
85.000 N
 Basic dynamic load rating, radial
C0r
71.000 N
 Basic static load rating, radial
Cur
3.550 N
 Fatigue load limit, radial
nG
5.300 1/min
 Limiting speed
nϑr
4.850 1/min
 Reference speed
≈m
2,06 kg
 Weight
da min
118,8 mm
 Minimum diameter shaft shoulder
Da max
161,2 mm
 Maximum diameter of housing shoulder
ra max
2 mm
 Maximum fillet radius
rmin
2 mm
 Minimum chamfer dimension
D1
151,02 mm
 Shoulder diameter outer ring
d1
129,12 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
150 °C
 Operating temperature max.
f0
15,7
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
