Name: 6002 High Quality Deep Groove Ball Bearing 15X21X9
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6002 High Quality Deep Groove Ball Bearing 15X21X9

CONTACT NOW down load to pdf

Details

Tags

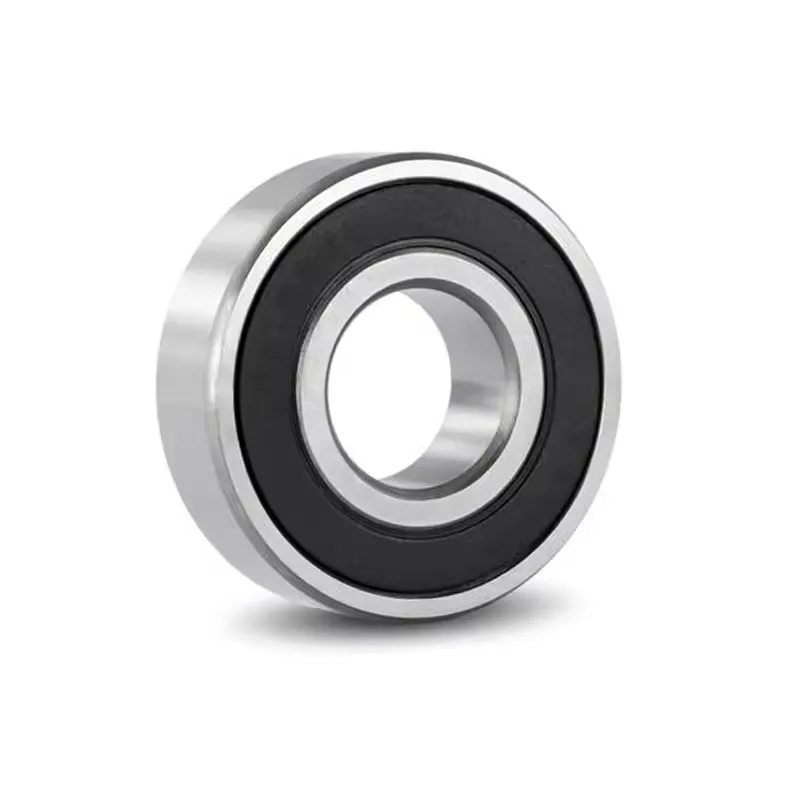

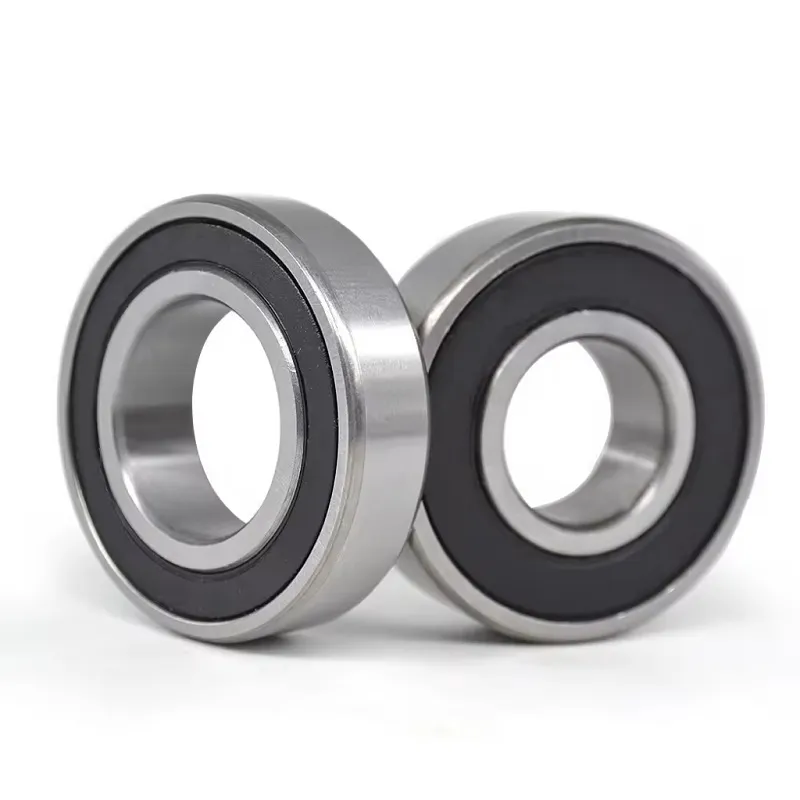

6000 Series ball bearings feature honed deep grove raceways that are capable of operating under radial, thrust or combination loads. Featuring metric inner and outer diameters in common industry sizes. This bearing comes pre-lubricated with grease and is available with rubber seals (-2RS) or metal shields (-ZZ).

d	15 mm	Bore diameter
D	32 mm	Outside diameter
B	9 mm	Width
C_r	5.900 N	Basic dynamic load rating, radial
C_0r	2.850 N	Basic static load rating, radial
C_ur	149 N	Fatigue load limit, radial
n_G	33.500 1/min	Limiting speed
n_ϑr	21.500 1/min	Reference speed
≈m	28,09 g	Weight
d_{a min}	17 mm	Minimum diameter shaft shoulder
D_{a max}	30 mm	Maximum diameter of housing shoulder
r_{a max}	0,3 mm	Maximum fillet radius
r_min	0,3 mm	Minimum chamfer dimension
D₁	26,86 mm	Shoulder diameter outer ring
D₂	28,35 mm	Caliber diameter outer ring
d₁	20,45 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	14	Calculation factor
