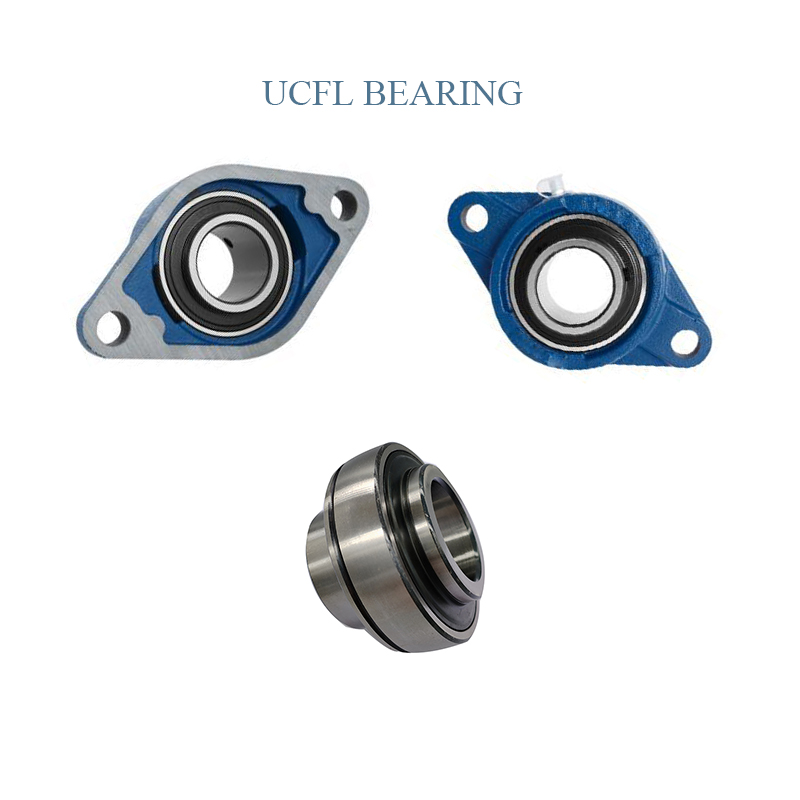

These oval flanged ball bearing units are compliant with international standards. They consist of an insert bearing, an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

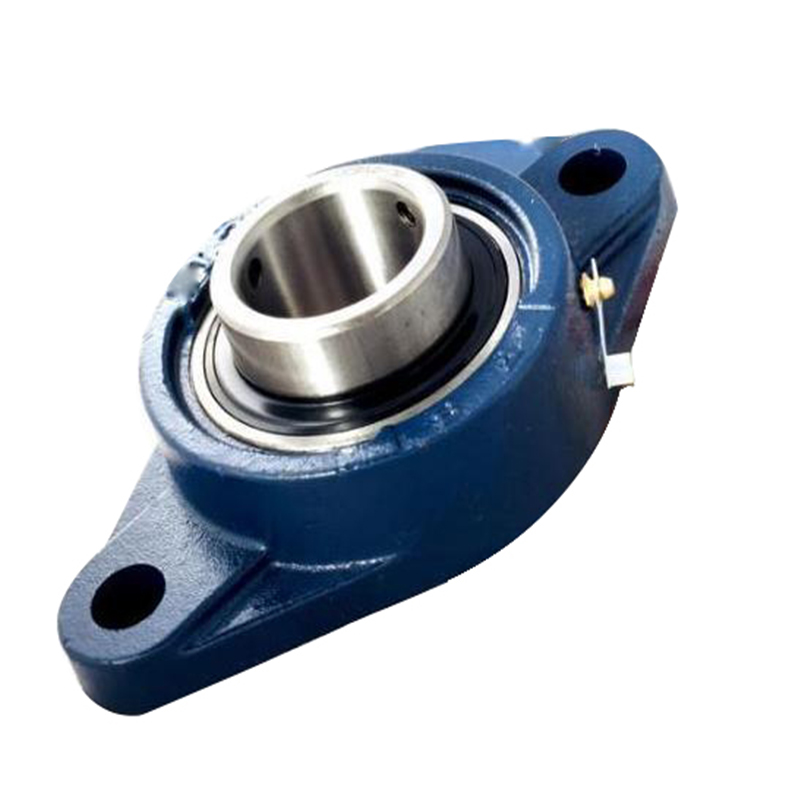

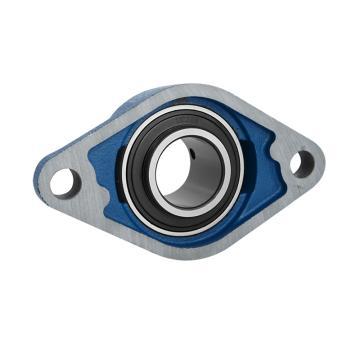

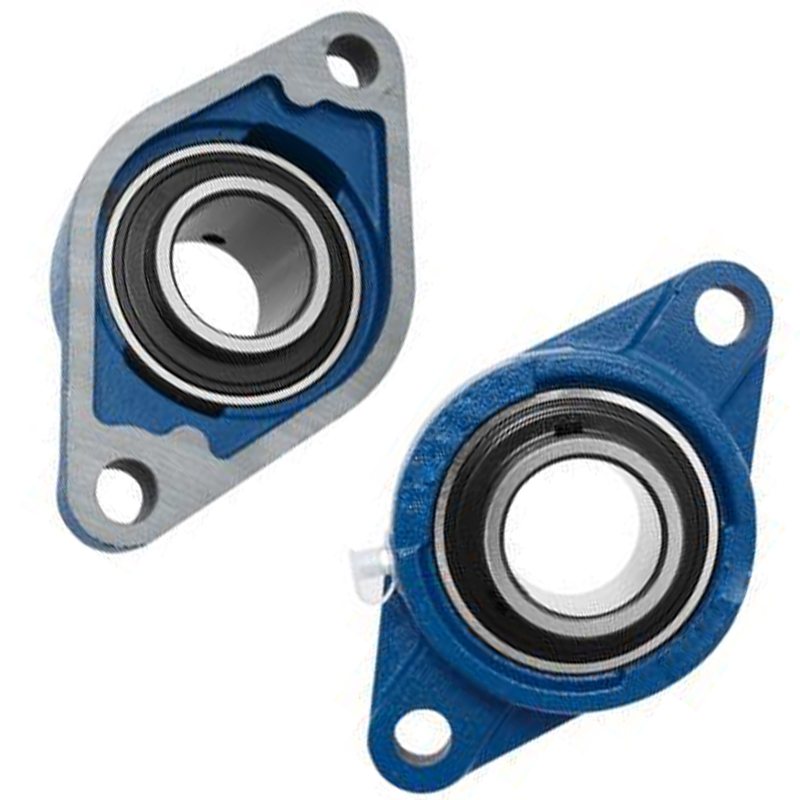

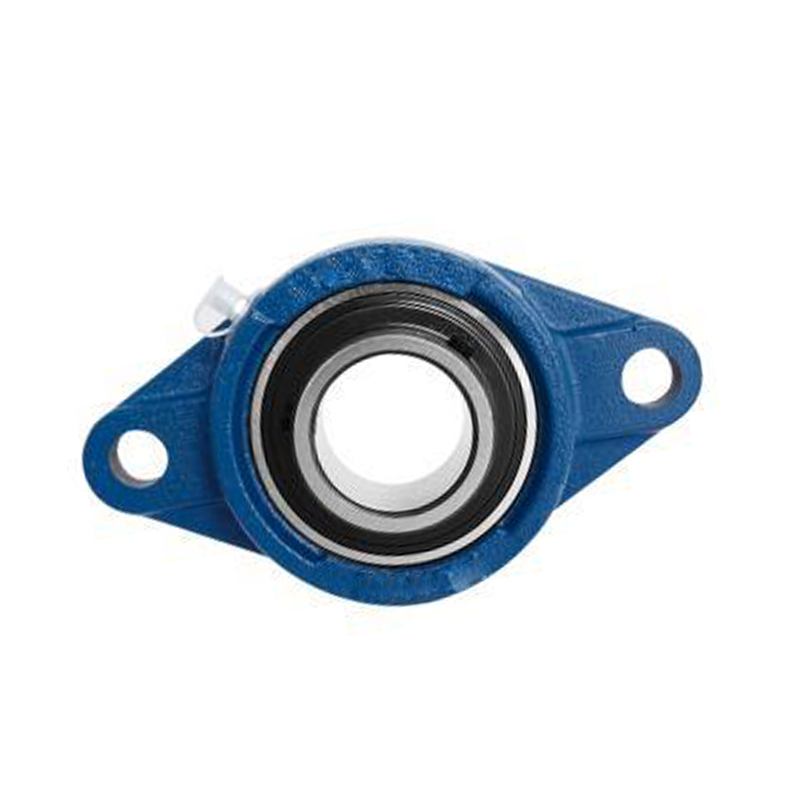

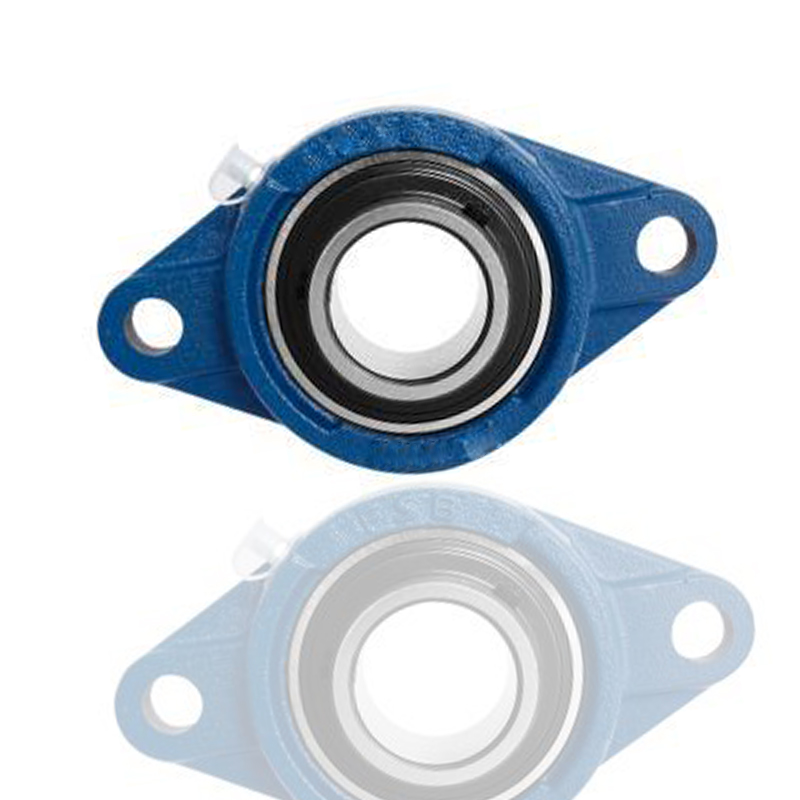

The UCFL305-16 Flange Unit medium duty bearing is a high-quality and efficient flange unit that is designed to withstand medium-duty applications in various industries.
With its sturdy construction and durable materials, this flange unit is able to withstand heavy loads and provide excellent performance for a long period of time.
It is commonly used in applications such as conveyor systems, food processing equipment, and agricultural machinery.
The UCFL305-16 Flange Unit features a self-aligning design, which allows for easy installation and adjustment. This ensures that the bearing is properly aligned and able to handle any misalignment that may occur during operation.
Additionally, this flange unit is equipped with a lubrication system that helps to ensure smooth and reliable operation. It has a wide operating temperature range, which allows it to function effectively even in harsh environments.
The UCFL305-16 Flange Unit is also corrosion-resistant, allowing it to be used in applications where exposure to moisture or other corrosive substances is a concern.
Overall, the UCFL305-16 Flange Unit medium duty bearing is a reliable choice for industries that require a high-performing flange unit that can withstand medium-duty applications. Its durable construction, easy installation, and excellent performance make it an ideal choice for a variety of industries.
Whether it is used in conveyor systems, food processing equipment, or agricultural machinery, this flange unit will provide the reliability and performance needed to keep operations running smoothly.
Bearing units No. | UCFL305-16 |
Bearing No. | UC305-16 |
Housing No | FL305 |
Shaft Dia | 1 IN |
25MM | |
a | 150MM |
e | 113MM |
i | 16MM |
g | 13MM |
l | 29MM |
s | 19MM |
b | 80MM |
z | 39MM |
bi | 38MM |
n | 15MM |
Bolt size | M16 |
5/8 IN | |
Weight | 1.1KG |
Housing Type: | 2 hole flanged housing unit |
Shaft Fastening: | Grub Screws |
