Name: 206KRR6 Hex Hole Agricultural Bearings
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

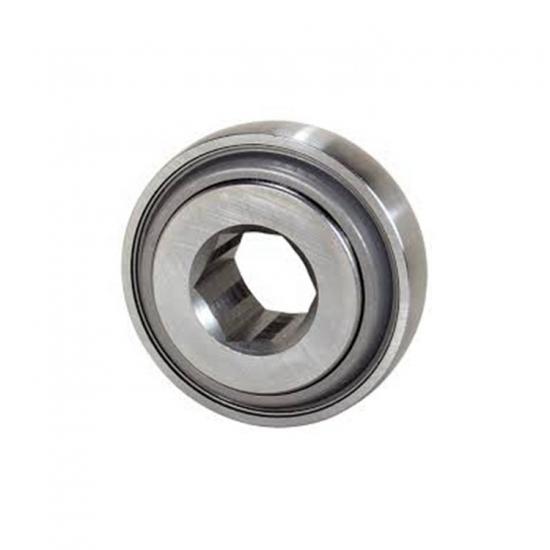

206KRR6 Hex Hole Agricultural Bearings

206KRR6 bearing is kind of Agriculture bearing with hex bore ,two lip seals ,produced with Chrome steel Gcr15 and the size are 1" *2.44"*0 .94" *0 .63"

CONTACT NOW down load to pdf

Details

Tags

DIMENSIONS:

BORE: 1" Hex bore
O.D. 2.44" Flat
Inner Ring Width:0 .94"
Outer Ring Width: 0.63
Material : Chrome Steel Gcr15

Other OEM NO.:

FAFNIR: 206KRR6
BCA: HPC100GP
Link-Belt: 16KB206N
NTN: 1AH06-1
John Deer: JD9338

Maybe you are also interested in these bearings:

Bearing Number	HEX Shaft Size	Bore Diameter	Outside Diameter	Inner Width	Outer Width	Weight
Bearing Number	mm					Kg
202KRR3	9/16	16.46	35	11	13	0.054
204KRR2	11/16	20.22	47	14	20.96	0.145
205KRR2	7/8	25.65	52	15	25.4	0.2
205KRRB2	7/8	25.65	52	15	25.4	0.2
205PPB13	7/8	25.65	52	15	25.4	0.2
206KPP3	1	29.31	62	16	24	0.345
206KPPB3	1	29.31	62	18	24	0.345
206KRR6	1	29.31	62	16	24	0.341
206KRRB6	1	29.31	62	18	24	0.341
207KPP3	1 1/4	36.4	72	17	37.7	0.454
207KPPB3	1 1/4	36.4	72	17	25	0.395
207KRRB9	1 1/8	32.97	72	17	37.7	0.454
207KRRB12	1 1/8	32.97	72	17	25	0.395
207KRR17	1 1/4	36.65	72	17	25	0.395
207KRRB17	1 1/4	36.65	72	17	25	0.395
W208PPB16	1 1/4	36.65	80	18	36.53	0.658
W208KRRB6	1 3/8	40.3	80	21	36.53
W208KRR8	1 1/4	36.65	80	18	36.53	0.658
209KRRB2	1 1/2	43.99	85	19	30	0.576
W210PPB7	1 5/8	47.65	90	30.18	30.18	0.794
G206KPP4	1	29.26	62	18	24	0.281
G206KPPB4	1	29.26	62	18	24	0.277
G206KRRB6	1	29.26	62	18	24	0.268
G207KPPB2	1 1/8	32.97	72	19	37.7	0.454
GW208KRRB5	1 1/4	36.65	80	21	36.51	0.635
GW208PPB22	1 1/4	36.75	80	21	36.51	0.681
GC1200KPPB2	1 3/4	51.31	100	25	57.15	1.521
