UCFL212-36
  • UCFL212-36

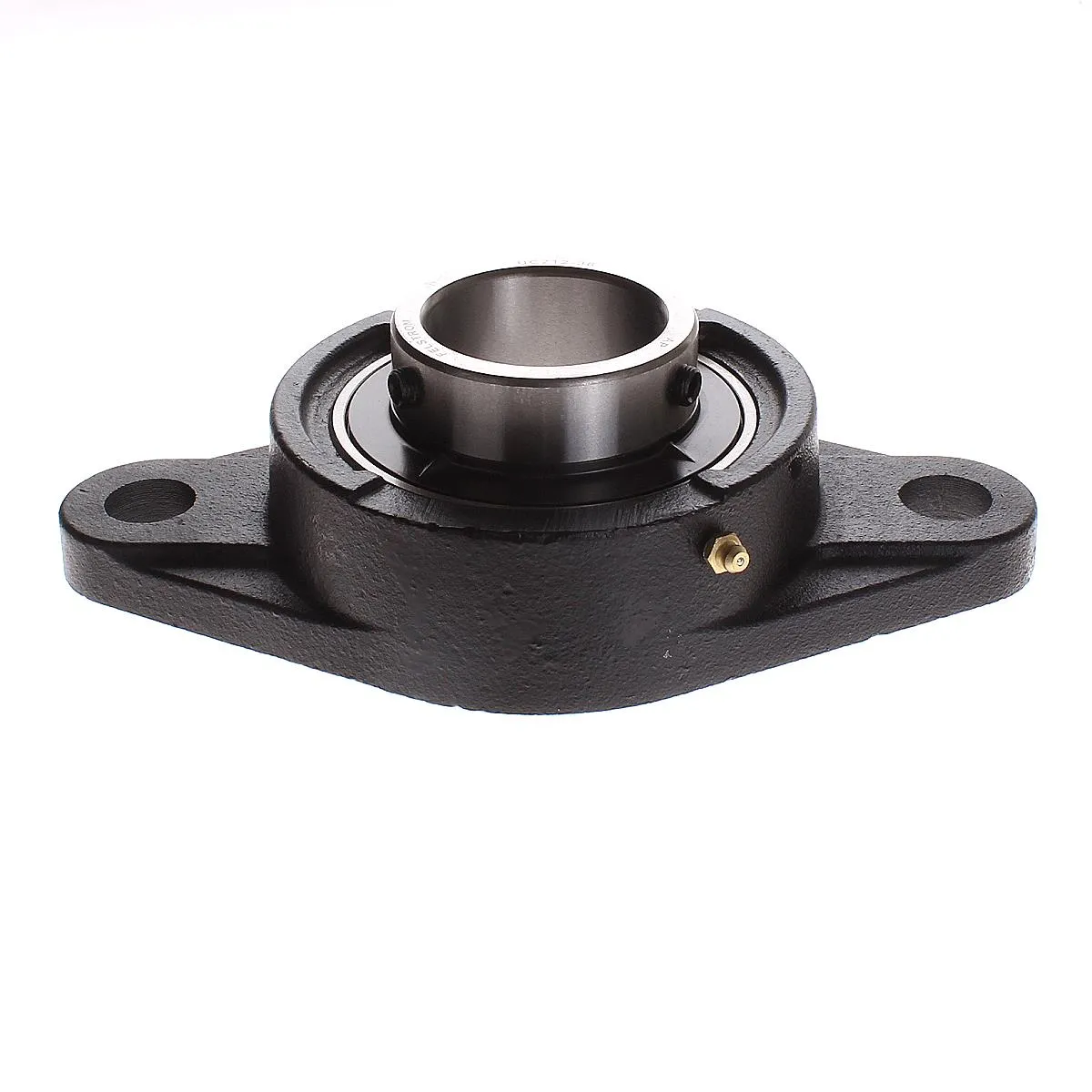

UCFL212-37 Flanged housing bearing unit

usque ad onus pdf *

Details

Tags

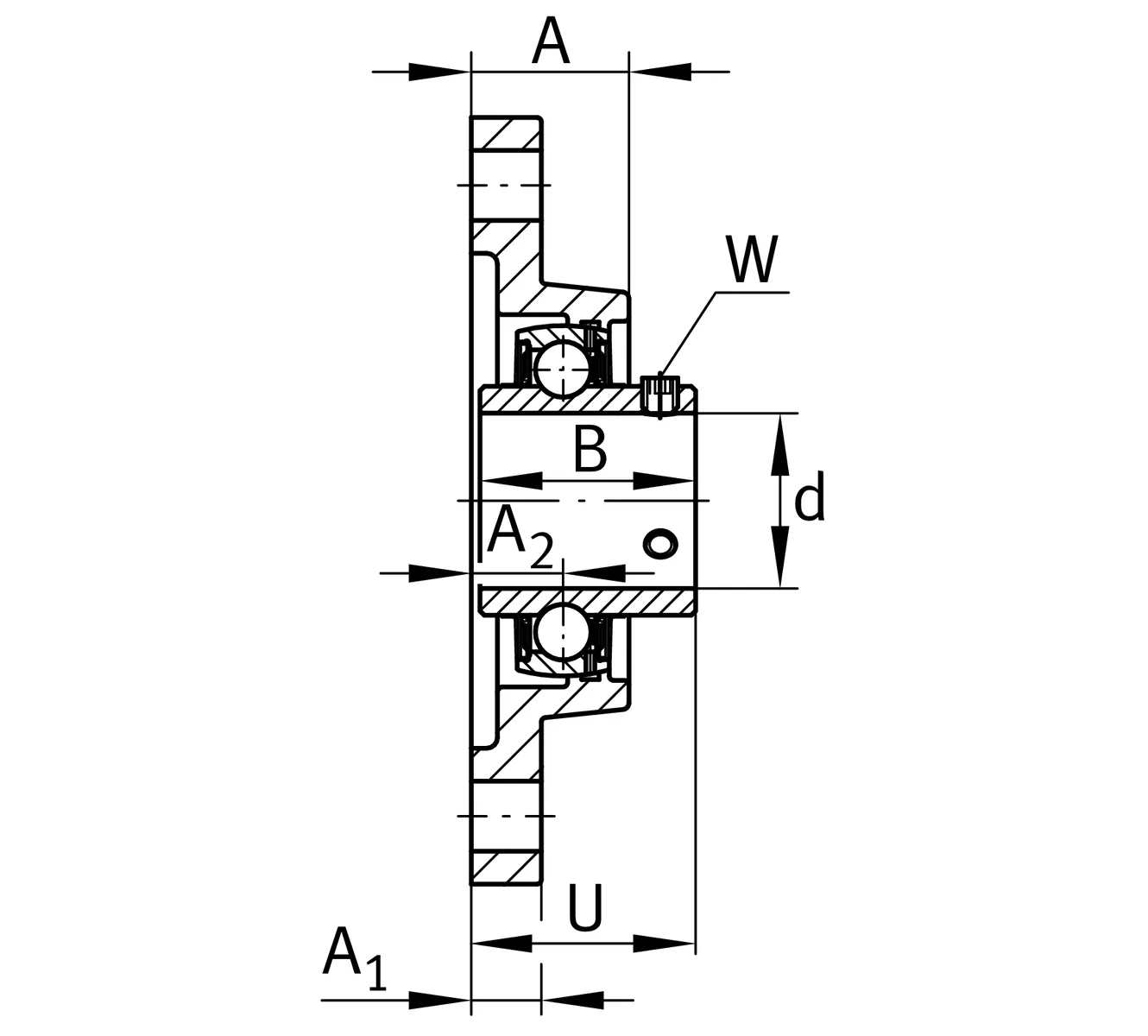

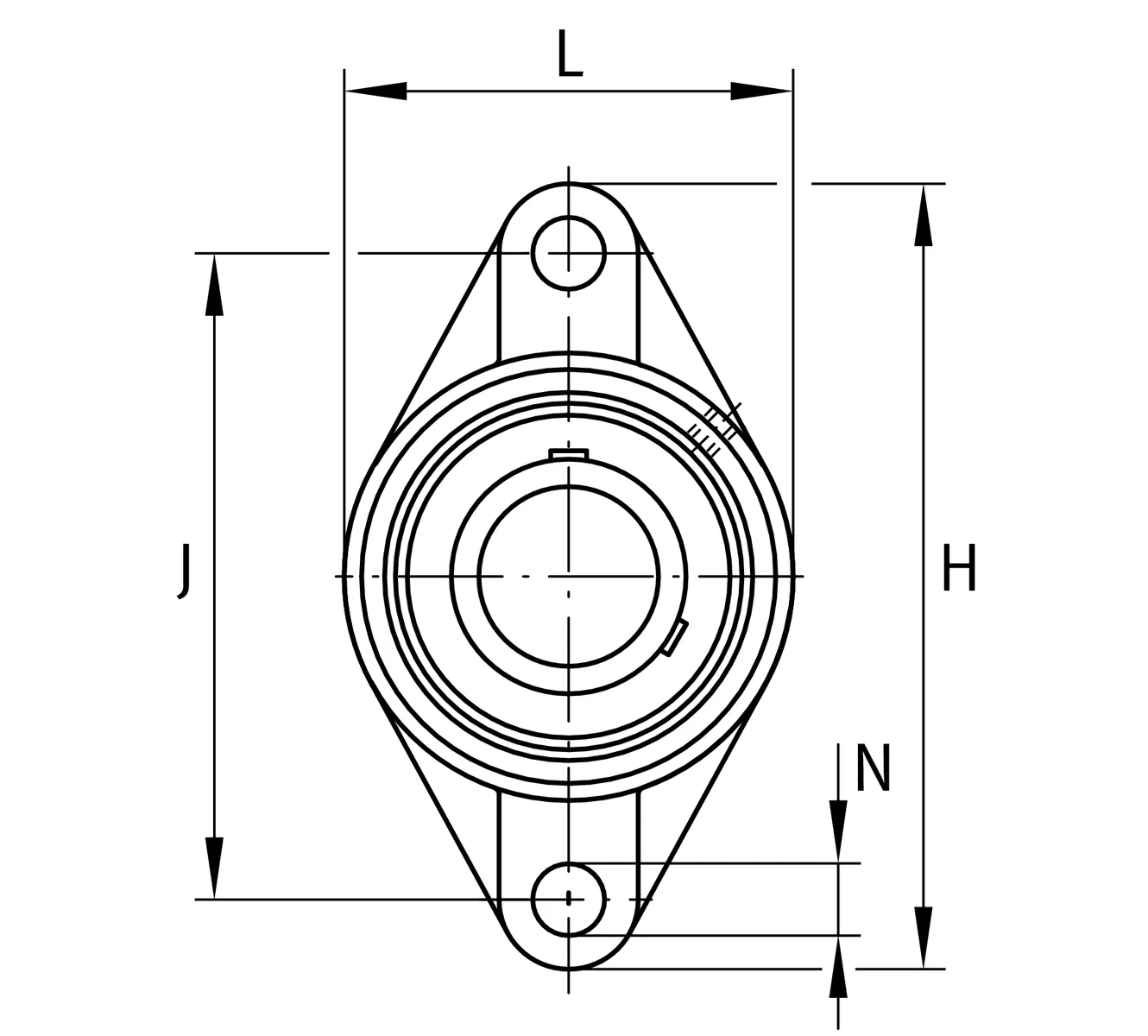

d
58,738 mm
 Bore diameter
L
140 mm
 Flange width
H
250 mm
 Height flange
U
68,7 mm
 Total height unit
Cr
52.000 N
 Basic dynamic load rating, radial
C0r
36.000 N
 Basic static load rating, radial
Cur
1.530 N
 Fatigue load limit, radial
≈m
4,02 kg
 Pondus

J
202 mm
 Distance fixing bore
N
23 mm
 Fixing bore
n
2
 Number of screwing holes
A
48 mm
 Height housing
A1
20 mm
 Thickness of flange
A2
29 mm
 Distance raceway
B
65,1 mm
 Width
Q
M6
 Connection thread for lubrication
Tmin
-20 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
