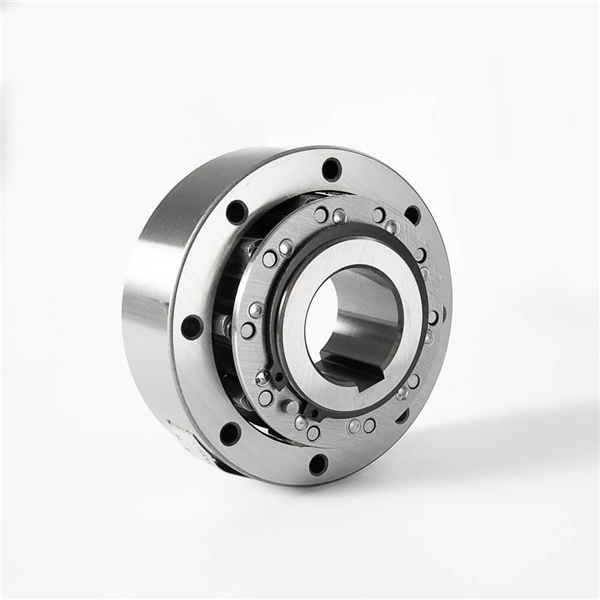

Name: RSBI Centrifugally lift Sprag Type Freewheel One Direction Bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

RSBI Centrifugally lift Sprag Type Freewheel One Direction Bearing

CUIR FIOS A-NIS Luchdaich a-nuas pdf gu pdf

Mion-fhiosrachadh

Tagaichean

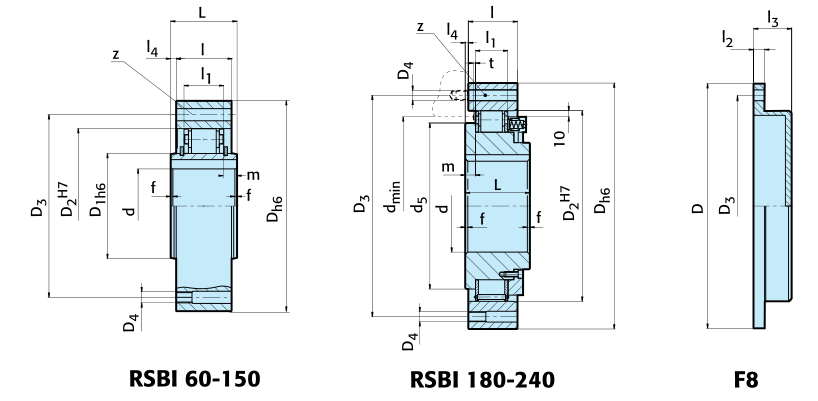

Model	Bore mm	Torque Nm	Speed ₁₎r/min	Speed ₂₎r/min	Speed ₃₎r/min	Dimensions (mm)															Cuideam (kg)
RSBI	dH7					D_h6	D1_h6	D2^h7	D₃	D₄	d₅	z	L	I	I₁	I4	fx45	d_min	I2	I3	RSBI	F8
	60	1375	200	490	6100	175	85	125	155	M10	-	8	60	50	36	5	2	110	12	35	6.5	1.8
	70	2000	210	480	4500	190	95	140	165	M10	-	12	60	50	36	5	2	120	12	35	8.6	1.9
	80	3125	190	450	4000	210	115	160	185	M10	-	12	70	60	36	5	2	140	12	35	12.5	2.6
	90	4125	180	420	3000	230	135	180	206	M12	-	12	80	70	36	5	2.5	160	12	35	17.4	3
	100	7250	200	455	2700	270	140	210	240	M16	-	12	90	80	52.6	5	2.5	180	15	37	28	5
	130	10625	180	415	2400	310	170	240	278	M16	-	12	90	80	52.6	5	3	210	15	37	35	6
	150	20325	160	365	1300	400	240	310	360	M16	-	12	90	80	52.6	5	3.5	280	18	44	61	15
	180	20375	160	365	3450	400	-	310	360	M16	270	12	105	80	52.6	5	4	280	18	62	73	16
	190	25000	145	340	4200	420	-	330	380	M16	290	16	105	80	58.6	5	4	300	18	67	75	18
	220	33750	140	325	3600	460	-	360	410	M16	320	18	105	80	58.6	5	4	330	18	67	88	21
	240	38250	135	310	3100	490	-	390	440	M16	350	18	105	80	58.6	5	4	360	20	67	96	25
