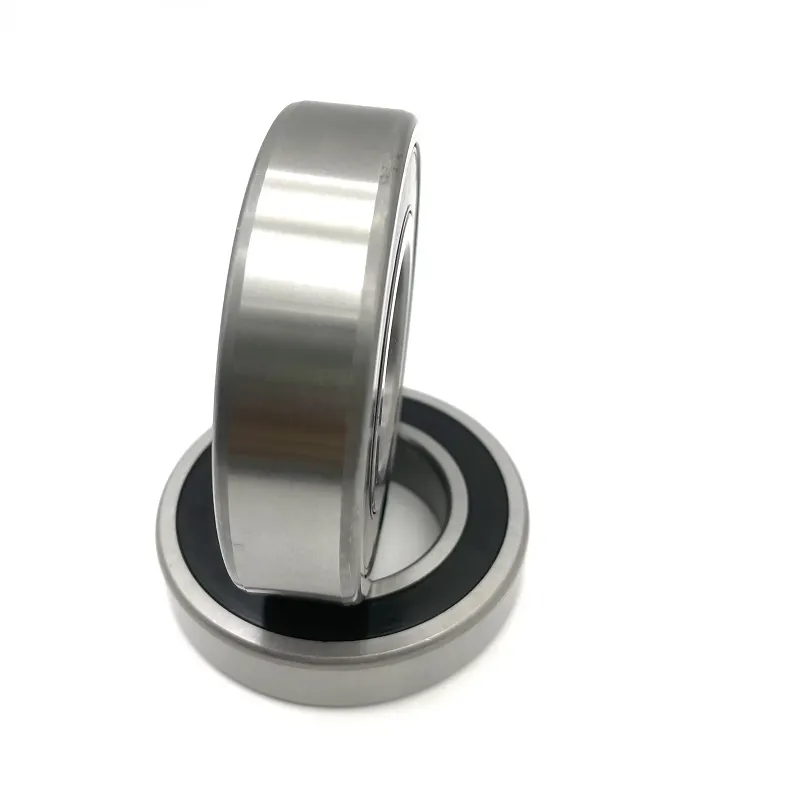

Name: 6409 2RS High Quality Deep Groove Ball Bearing 45X120X29
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6409 2RS High Quality Deep Groove Ball Bearing 45X120X29

XHUMANA MANJE layisha phansi ku-pdf

Imininingwane

Omaka

Deep groove ball bearing 64, single row, steel sheet metal cage

d	45 mm	Bore diameter
D	120 mm	Outside diameter
B	29 mm	Width
C_r	83.000 N	Basic dynamic load rating, radial
C_0r	47.500 N	Basic static load rating, radial
C_ur	3.250 N	Fatigue load limit, radial
n_G	8.500 1/min	Limiting speed
n_ϑr	6.800 1/min	Reference speed
≈m	1,55 kg	Isisindo
d_{a min}	58 mm	Minimum diameter shaft shoulder
D_{a max}	107 mm	Maximum diameter of housing shoulder
r_{a max}	2 mm	Maximum fillet radius
r_min	2 mm	Minimum chamfer dimension
D₁	101,13 mm	Shoulder diameter outer ring
D₂	104,26 mm	Caliber diameter outer ring
d₁	75,2 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
