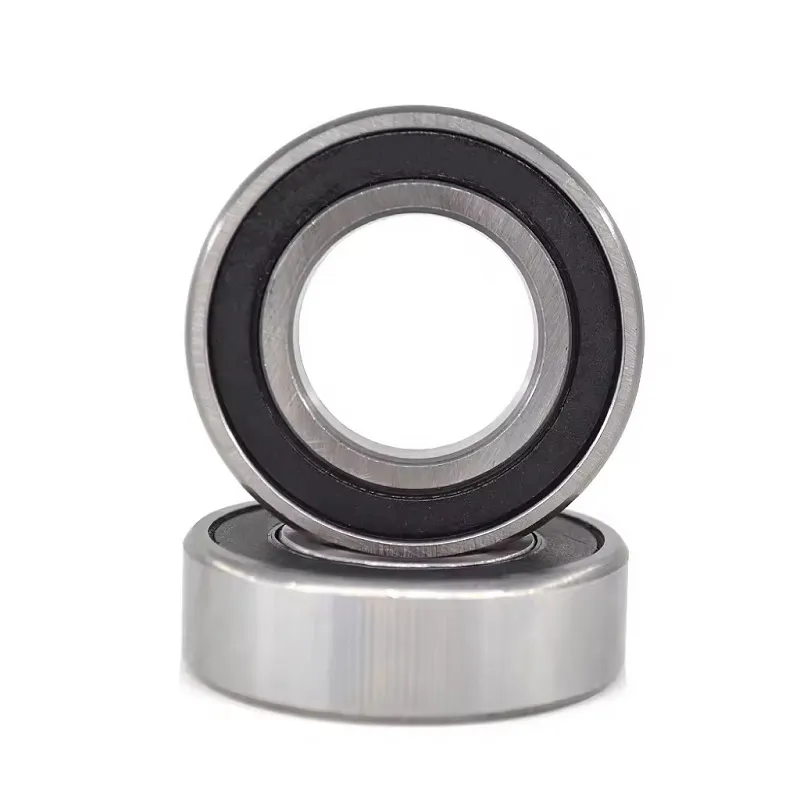

Name: 6414 2RS High Quality Deep Groove Ball Bearing 70X180X42
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6414 2RS High Quality Deep Groove Ball Bearing 70X180X42

QHAGAMSHELANA NGOKU layisha phantsi kwi-pdf

Iinkcukacha

Iithegi

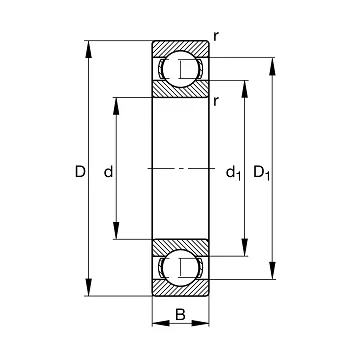

Deep groove ball bearing 64, single row, steel sheet metal cage

d	70 mm	Bore diameter
D	180 mm	Outside diameter
B	42 mm	Width
C_r	141.000 N	Basic dynamic load rating, radial
C_0r	97.000 N	Basic static load rating, radial
C_ur	6.000 N	Fatigue load limit, radial
n_G	5.000 1/min	Limiting speed
n_ϑr	5.200 1/min	Reference speed
≈m	5,06 kg	Ubunzima

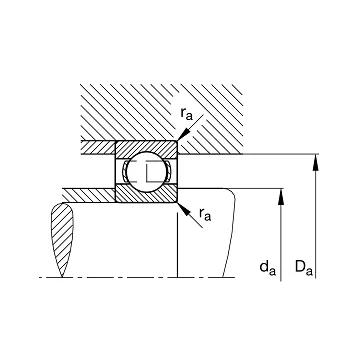

d_{a min}	86 mm	Minimum diameter shaft shoulder
D_{a max}	164 mm	Maximum diameter of housing shoulder
r_{a max}	2,5 mm	Maximum fillet radius
r_min	3 mm	Minimum chamfer dimension
D₁	151,58 mm	Shoulder diameter outer ring
d₁	114,38 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	13,3	Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
