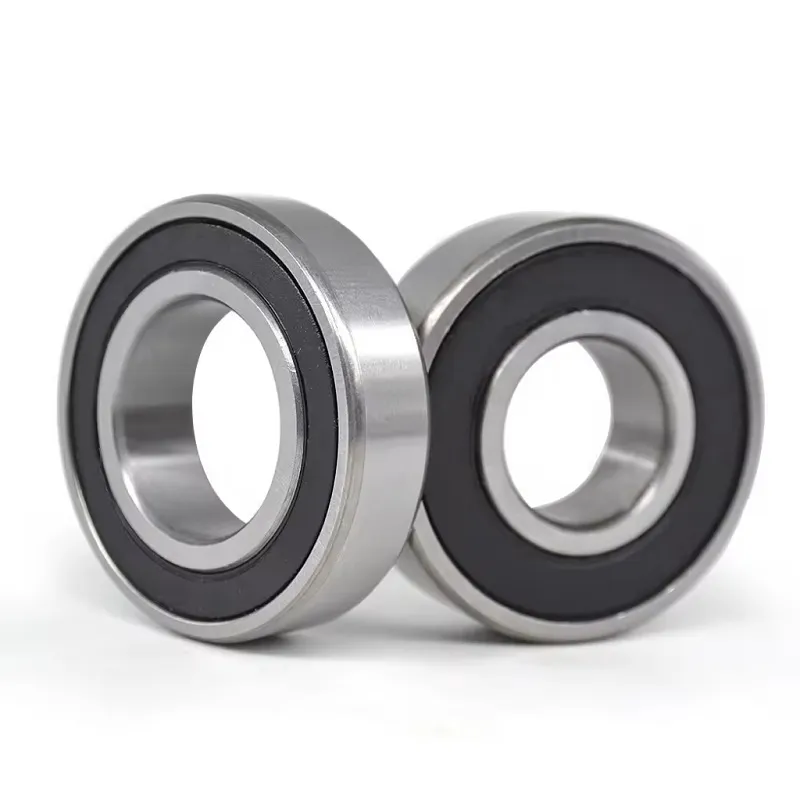

Name: 6324 2RS High Quality Deep Groove Ball Bearing 120X260X55
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6324 2RS High Quality Deep Groove Ball Bearing 120X260X55

LIÊN HỆ NGAY tải xuống pdf

Chi tiết

Thẻ

Deep groove ball bearing 63, single row, steel sheet metal cage

d	120 mm	Bore diameter
D	260 mm	Outside diameter
B	55 mm	Width
C_r	225.000 N	Basic dynamic load rating, radial
C_0r	195.000 N	Basic static load rating, radial
C_ur	9.800 N	Fatigue load limit, radial
n_G	3.500 1/min	Limiting speed
n_ϑr	3.800 1/min	Reference speed
≈m	12,8 kg	Cân nặng
d_{a min}	134 mm	Minimum diameter shaft shoulder
D_{a max}	246 mm	Maximum diameter of housing shoulder
r_{a max}	2,5 mm	Maximum fillet radius
r_min	3 mm	Minimum chamfer dimension
D₁	215,6 mm	Shoulder diameter outer ring
d₁	165,8 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	200 °C	Operating temperature max.
f₀	13,8	Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
