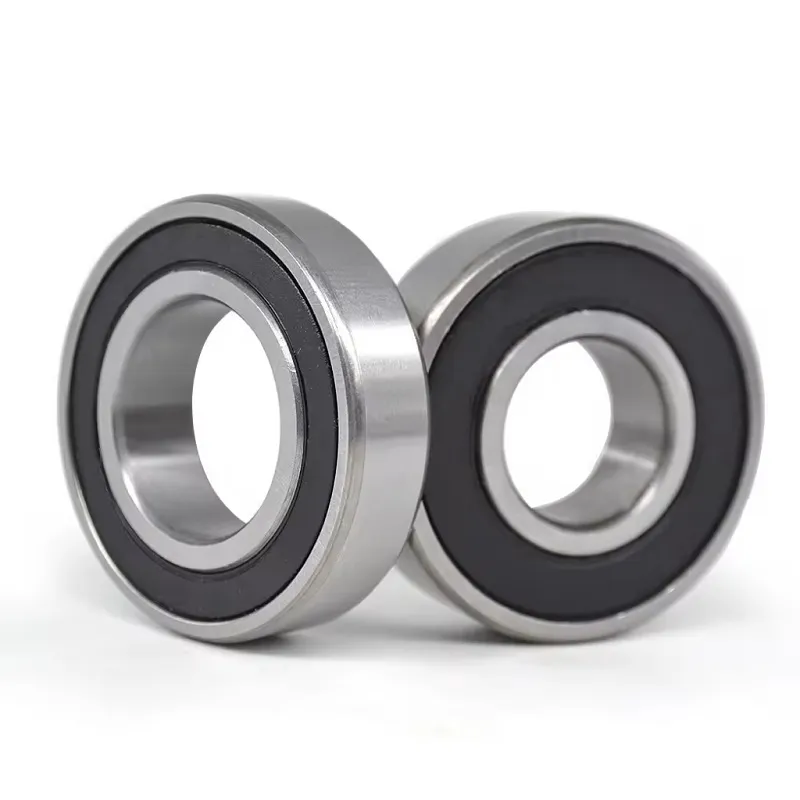

6010 High Quality Deep Groove Ball Bearing 50X80X16



يۈكنى pdf غا چۈشۈرۈش

تەپسىلاتى

خەتكۈچ

Deep groove ball bearing 60, single row, steel sheet metal cage


6000 Series ball bearings feature honed deep grove raceways that are capable of operating under radial, thrust or combination loads. Featuring metric inner and outer diameters in common industry sizes. This bearing comes pre-lubricated with grease and is available with rubber seals (-2RS) or metal shields (-ZZ).
d
50 mm
 Bore diameter
D
80 mm
 Outside diameter
B
16 mm
 Width
Cr
22.000 N
 Basic dynamic load rating, radial
C0r
15.800 N
 Basic static load rating, radial
Cur
800 N
 Fatigue load limit, radial
nG
12.200 1/min
 Limiting speed
nϑr
8.900 1/min
 Reference speed
≈m
0,258 kg
 ئېغىرلىقى
da min
54,6 mm
 Minimum diameter shaft shoulder
Da max
75,4 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1 mm
 Minimum chamfer dimension
D1
70,2 mm
 Shoulder diameter outer ring
D2
72,94 mm
 Caliber diameter outer ring
d1
59,75 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
15,6
 Calculation factor
