6008 High Quality Deep Groove Ball Bearing 40X68X15

تەپسىلاتى

خەتكۈچ

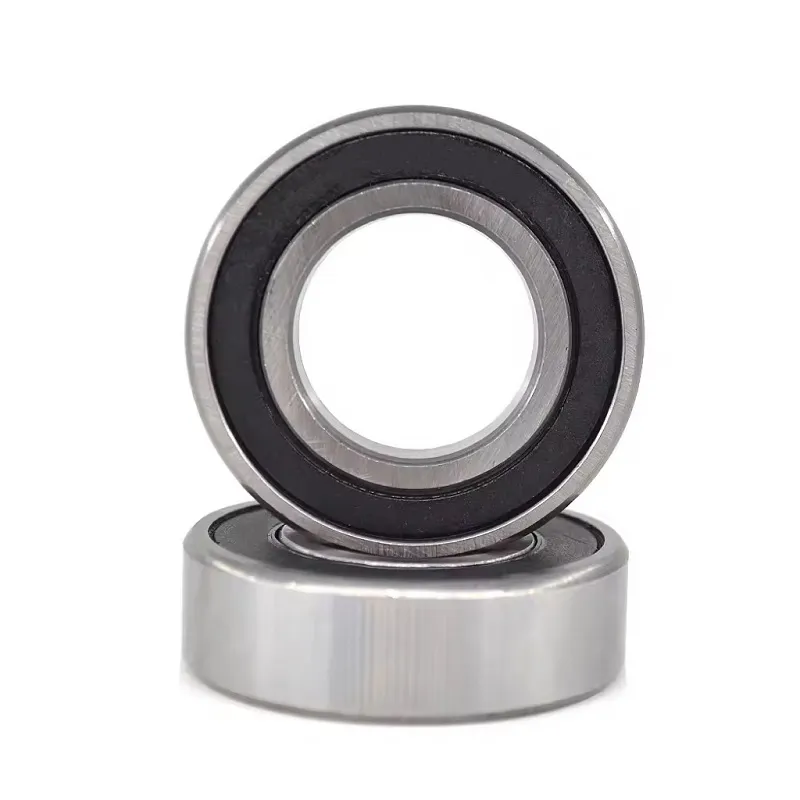

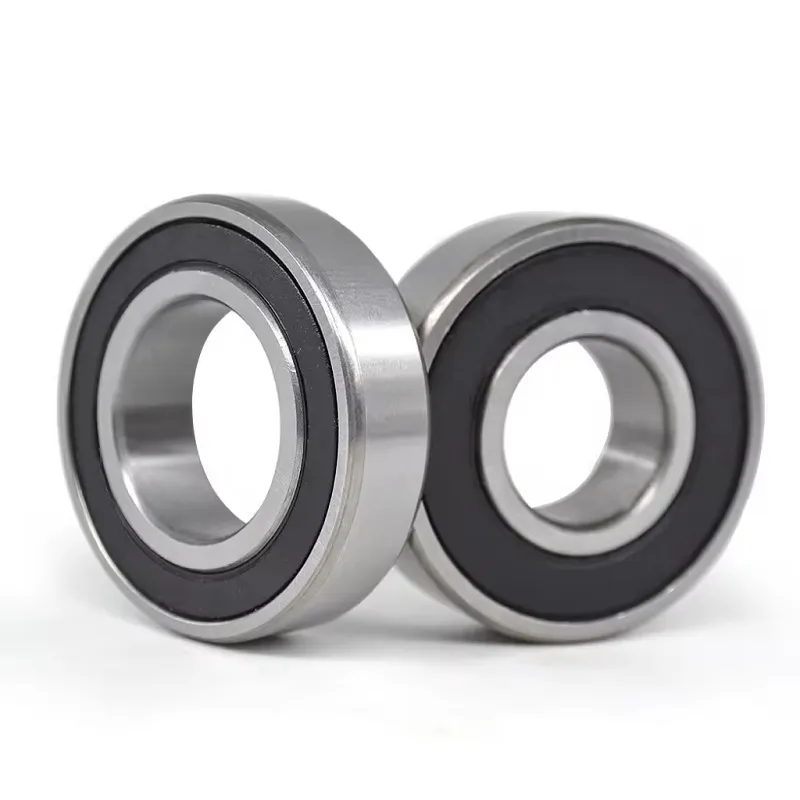

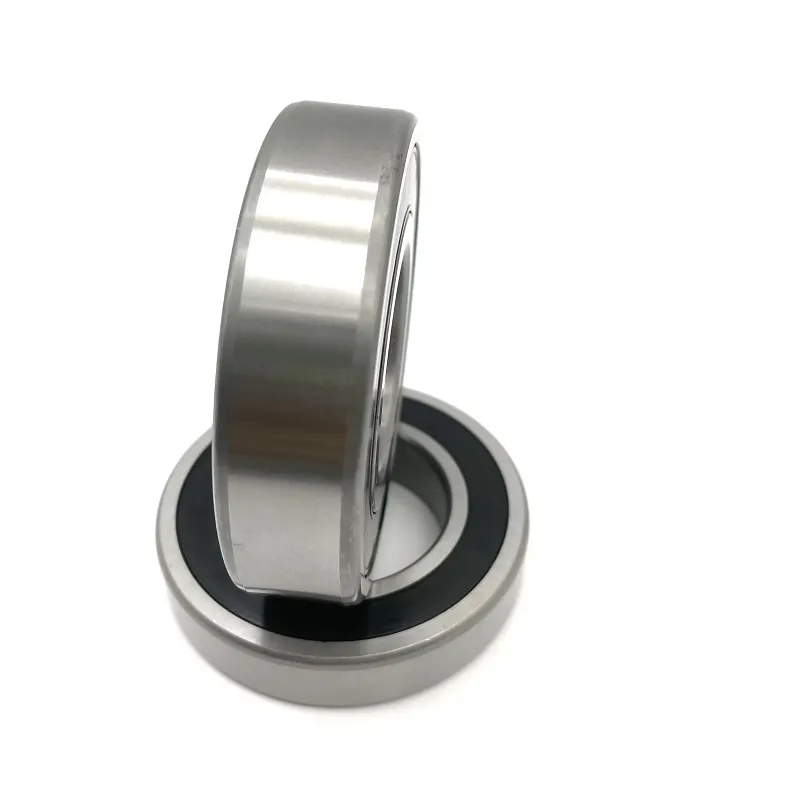

Deep groove ball bearing 60, single row, steel sheet metal cage

6000 Series ball bearings feature honed deep grove raceways that are capable of operating under radial, thrust or combination loads. Featuring metric inner and outer diameters in common industry sizes. This bearing comes pre-lubricated with grease and is available with rubber seals (-2RS) or metal shields (-ZZ).

d	40 mm	Bore diameter
D	68 mm	Outside diameter
B	15 mm	Width
C_r	17,800 N	Basic dynamic load rating, radial
C_0r	11,500 N	Basic static load rating, radial
C_ur	600 N	Fatigue load limit, radial
n_G	14,600 1/min	Limiting speed
n_ϑr	10,600 1/min	Reference speed
≈m	0.181 kg	ئېغىرلىقى
d_{a min}	44.6 mm	Minimum diameter shaft shoulder
D_{a max}	63.4 mm	Maximum diameter of housing shoulder
r_{a max}	1 mm	Maximum fillet radius
r_min	1 mm	Minimum chamfer dimension
D₁	59.06 mm	Shoulder diameter outer ring
D₂	61.56 mm	Caliber diameter outer ring
d₁	49.3 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	15.2	Calculation factor
