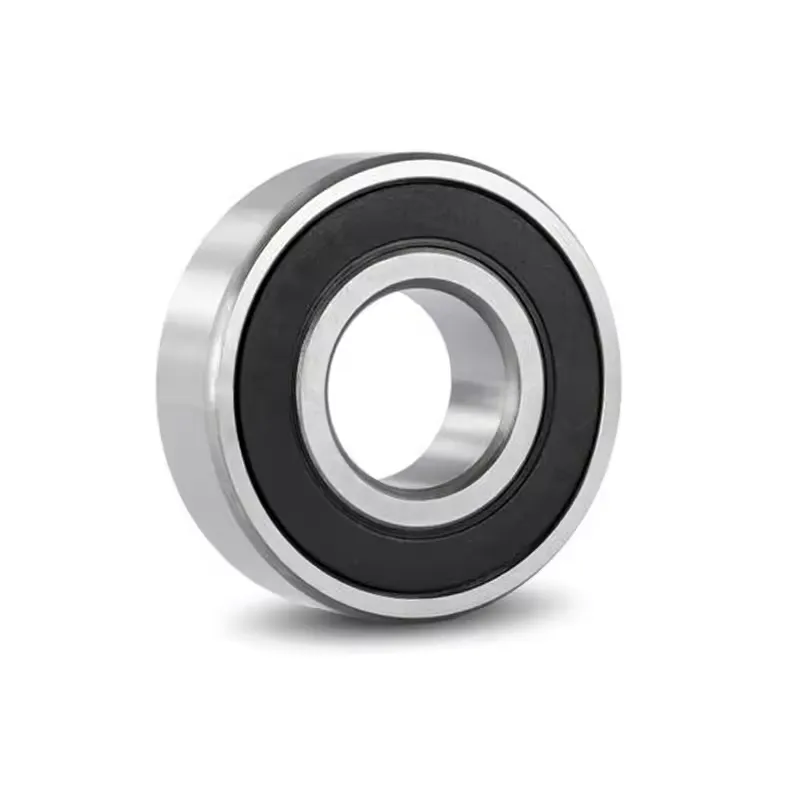

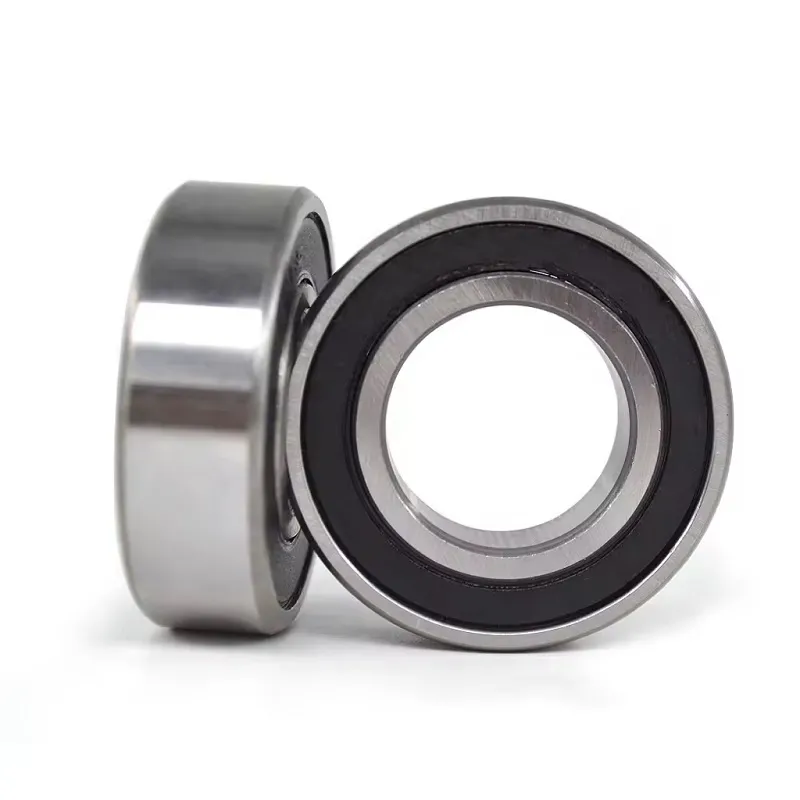

Name: High quality 6000-2Z Deep groove ball bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

High quality 6000-2Z Deep groove ball bearing

Хәзер элемтә pdf

Детальләр

Бәйләнешле Продуктлар

30305-A High Quality Tapered Roller Bearing
30304-A High Quality Tapered Roller Bearing
30303-A High Quality Tapered Roller Bearing
30226-XL High Quality Tapered Roller Bearing
30224-XL High Quality Tapered Roller Bearing
30222-XL High Quality Tapered Roller Bearing
30221-A High Quality Tapered Roller Bearing
30220-A High Quality Tapered Roller Bearing

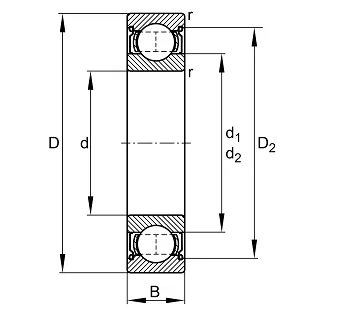

d	10 mm	Bore diameter
D	26 mm	Outside diameter
B	8 mm	Width
C_r	4.850 N	Basic dynamic load rating, radial
C_0r	1.970 N	Basic static load rating, radial
C_ur	96 N	Fatigue load limit, radial
n_G	34.500 1/min	Limiting speed
n_ϑr	27.500 1/min	Reference speed
≈m	18 g	Авырлык

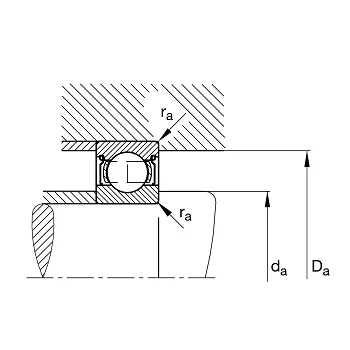

d_{a min}	12 mm	Minimum diameter shaft shoulder
D_{a max}	24 mm	Maximum diameter of housing shoulder
r_{a max}	0,3 mm	Maximum fillet radius
r_min	0,3 mm	Minimum chamfer dimension
D₁	21,43 mm	Shoulder diameter outer ring
D₂	22,46 mm	Caliber diameter outer ring
d₁	14,65 mm	Shoulder diameter inner ring
T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	12,4	Calculation factor

High quality 6000-2Z Deep groove ball bearing
