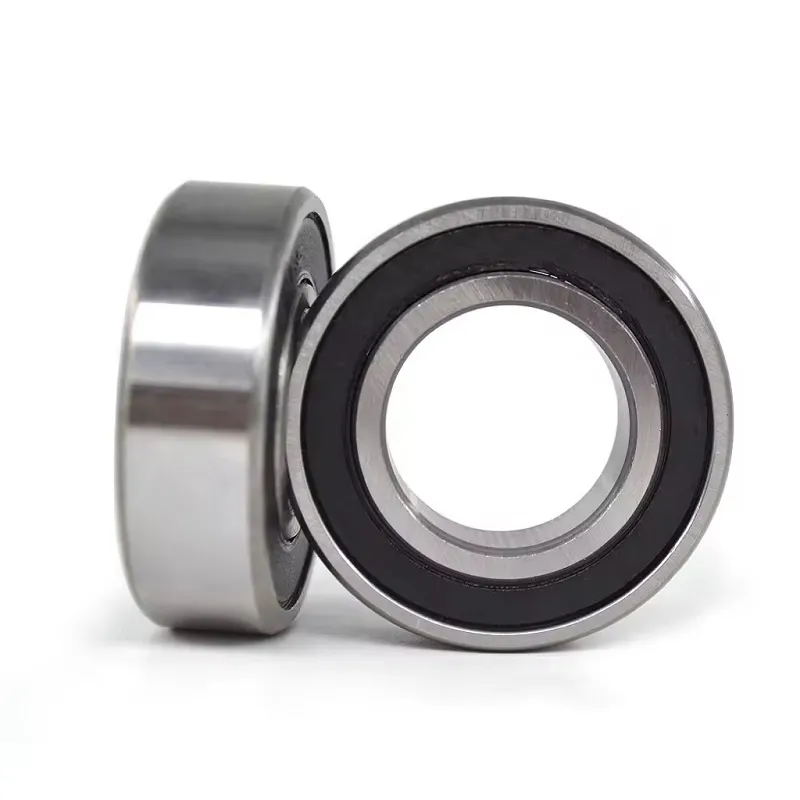

Name: 6307 2RS High Quality Deep Groove Ball Bearing 35X80X21
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6307 2RS High Quality Deep Groove Ball Bearing 35X80X21

இப்போது தொடர்பு கொள்ளவும் pdf க்கு பதிவிறக்கவும்

விவரங்கள்

குறிச்சொற்கள்

Deep groove ball bearing 63, single row, steel sheet metal cage

d	35 mm	Bore diameter
D	80 mm	Outside diameter
B	21 mm	Width
C_r	35.500 N	Basic dynamic load rating, radial
C_0r	19.100 N	Basic static load rating, radial
C_ur	1.290 N	Fatigue load limit, radial
n_G	12.300 1/min	Limiting speed
n_ϑr	9.900 1/min	Reference speed
≈m	0,445 kg	எடை
d_{a min}	44 mm	Minimum diameter shaft shoulder
D_{a max}	71 mm	Maximum diameter of housing shoulder
r_{a max}	1,5 mm	Maximum fillet radius
r_min	1,5 mm	Minimum chamfer dimension
D₁	65,6 mm	Shoulder diameter outer ring
D₂	67,6 mm	Caliber diameter outer ring
d₁	49,3 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	13,1	Calculation factor
