Name: 30213 High Quality Tapered Roller Bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

30213 High Quality Tapered Roller Bearing

FESOAI NEI lalo uta i le pdf

Fa'amatalaga

Fa'ailoga

Tapered roller bearings 302, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs

Fa'atatau O'OGA

30305-A High Quality Tapered Roller Bearing
30304-A High Quality Tapered Roller Bearing
30303-A High Quality Tapered Roller Bearing
30226-XL High Quality Tapered Roller Bearing
30224-XL High Quality Tapered Roller Bearing
30222-XL High Quality Tapered Roller Bearing
30221-A High Quality Tapered Roller Bearing
30220-A High Quality Tapered Roller Bearing

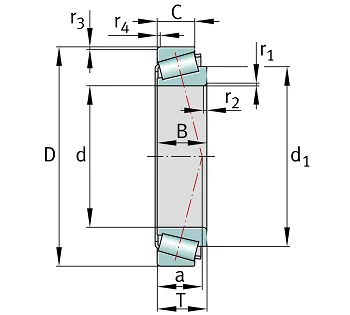

d	65 mm	Bore diameter
D	120 mm	Outside diameter
B	23 mm	Width, inner ring
C	20 mm	Width, outer ring
T	24,75 mm	Width, total
C_r	119.000 N	Basic dynamic load rating, radial
C_0r	142.000 N	Basic static load rating, radial
C_ur	16.800 N	Fatigue load limit, radial
n_G	6.100 1/min	Limiting speed
n_ϑr	3.850 1/min	Thermal speed rating
≈m	1,151 kg	mamafa

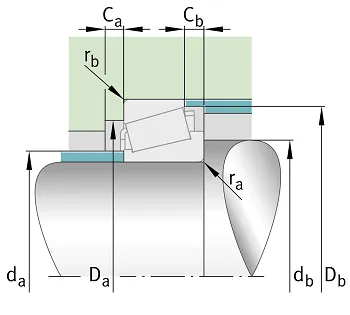

d_{a max}	77 mm	Maximum diameter of shaft shoulder
d_{b min}	74 mm	Minimum diameter of shaft shoulder
D_{a min}	106 mm	Minimum diameter of housing shoulder
D_{a max}	111 mm	Maximum diameter of housing shoulder
D_{b min}	113 mm	Minimum diameter of housing shoulder
C_{a min}	4 mm	Minimum axial space
C_{b min}	4,5 mm	Minimum axial space
r_{a max}	2 mm	Maximum fillet radius of shaft
r_{b max}	1,5 mm	Maximum fillet radius of housing
r_{1, 2 min}	2 mm	Minimum chamfer dimension of inner ring back face
r_{3, 4 min}	1,5 mm	Minimum chamfer dimension of outer ring back face
a	23 mm	Distance between the apexes of the pressure cones
d₁	90 mm	Guidance rib diameter of inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
e	0,4	Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
Y	1,48	Dynamic axial load factor
Y₀	0,81	Static axial load factor
