Name: 6416-M High Quality Deep Groove Ball Bearing 80X200X48
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

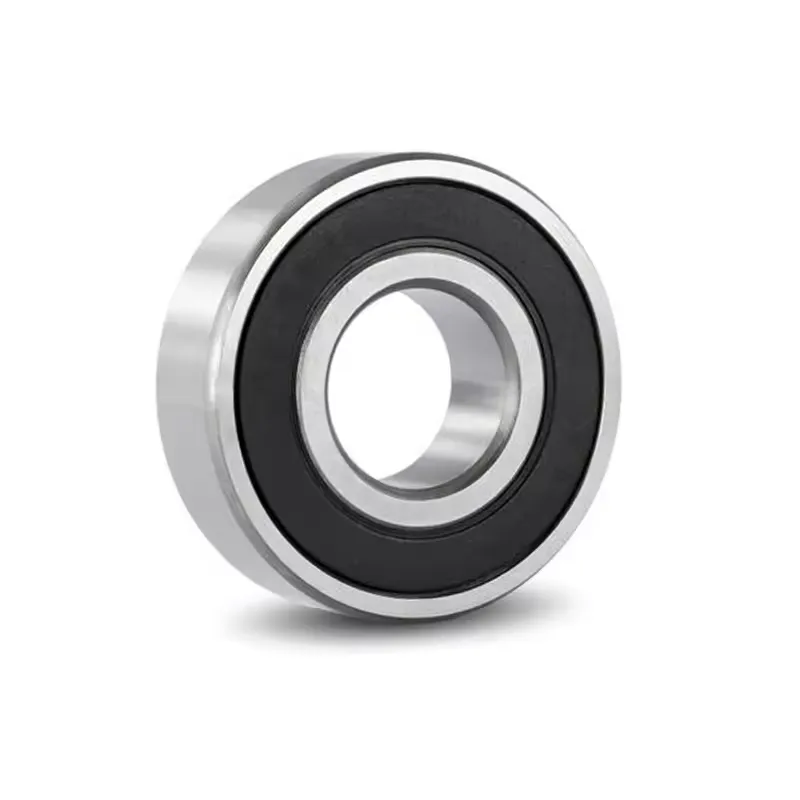

6416-M High Quality Deep Groove Ball Bearing 80X200X48

ବର୍ତ୍ତମାନ ଯୋଗାଯୋଗ କରନ୍ତୁ | pdf କୁ ଡାଉନ୍ ଲୋଡ୍ |

ବିବରଣୀ

ଟ୍ୟାଗ୍ସ

Deep groove ball bearing 64..-M, single row, solid brass cage

d	80 mm	Bore diameter
D	200 mm	Outside diameter
B	48 mm	Width
C_r	173.000 N	Basic dynamic load rating, radial
C_0r	125.000 N	Basic static load rating, radial
C_ur	7.100 N	Fatigue load limit, radial
n_G	5.900 1/min	Limiting speed
n_ϑr	5.400 1/min	Reference speed
≈m	8,29 kg	ଓଜନ
d_{a min}	96 mm	Minimum diameter shaft shoulder
D_{a max}	184 mm	Maximum diameter of housing shoulder
r_{a max}	2,5 mm	Maximum fillet radius
r_min	3 mm	Minimum chamfer dimension
D₁	162,14 mm	Shoulder diameter outer ring
d₁	117,94 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	12,3	Calculation factor
