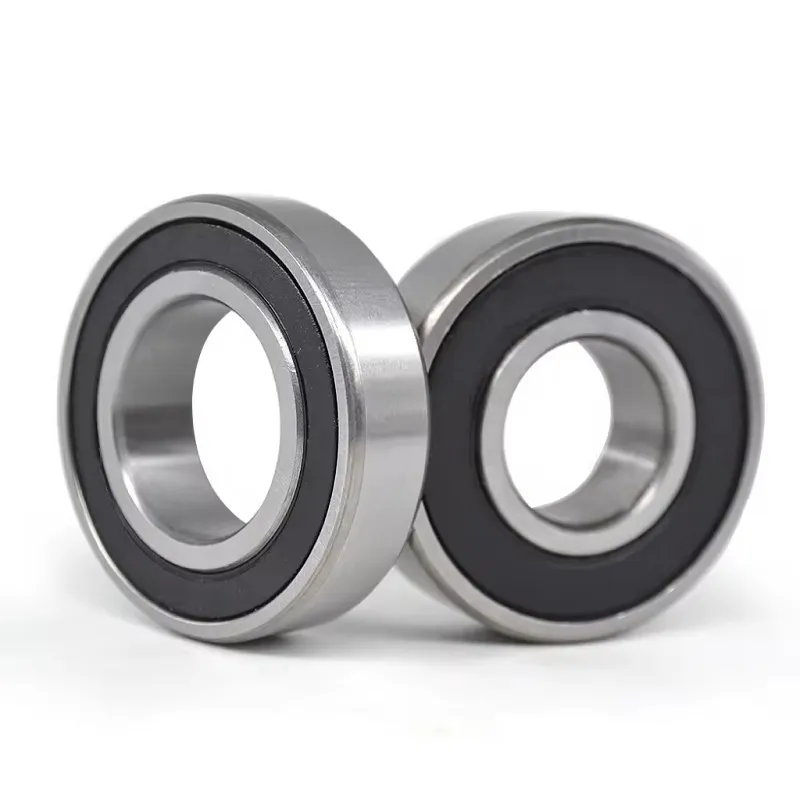

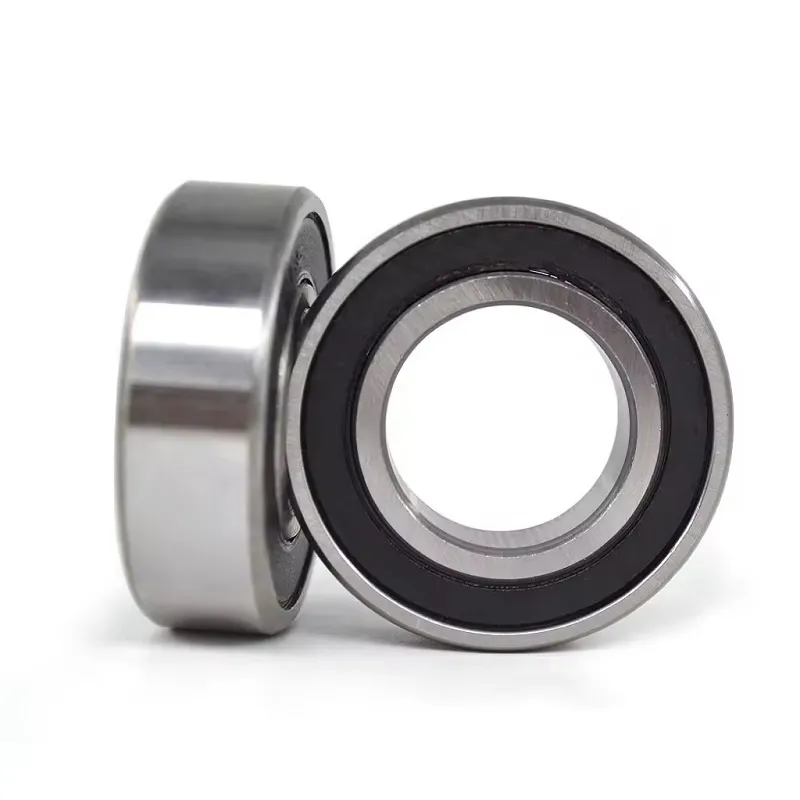

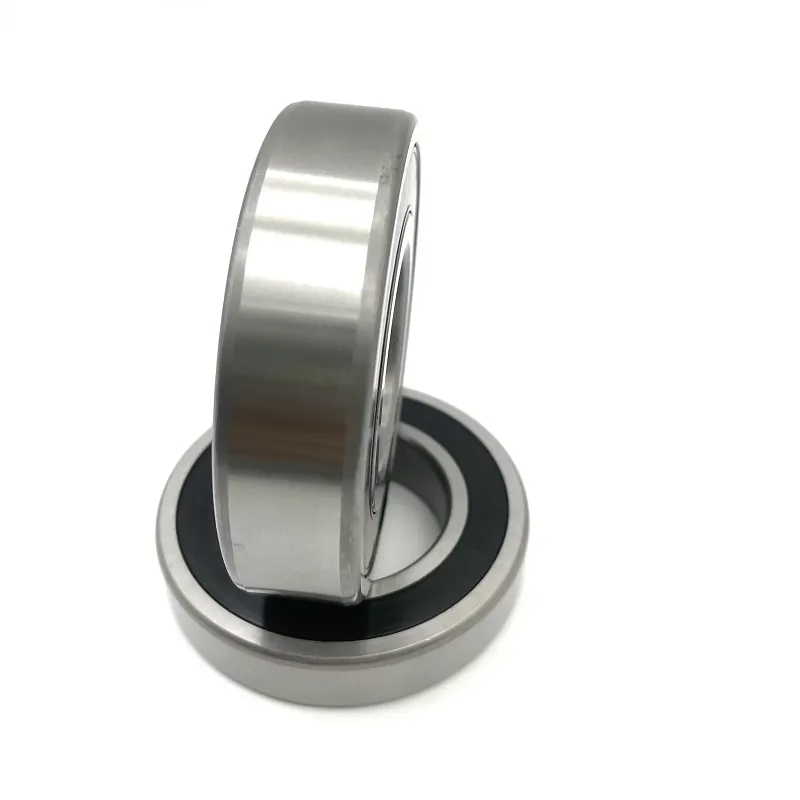

Name: 6316 2RS High Quality Deep Groove Ball Bearing 80X170X39
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6316 2RS High Quality Deep Groove Ball Bearing 80X170X39

ବର୍ତ୍ତମାନ ଯୋଗାଯୋଗ କରନ୍ତୁ | pdf କୁ ଡାଉନ୍ ଲୋଡ୍ |

ବିବରଣୀ

ଟ୍ୟାଗ୍ସ

Deep groove ball bearing 63, single row, steel sheet metal cage

d	80 mm	Bore diameter
D	170 mm	Outside diameter
B	39 mm	Width
C_r	131.000 N	Basic dynamic load rating, radial
C_0r	87.000 N	Basic static load rating, radial
C_ur	5.400 N	Fatigue load limit, radial
n_G	5.400 1/min	Limiting speed
n_ϑr	5.500 1/min	Reference speed
≈m	3,75 kg	ଓଜନ
d_{a min}	92 mm	Minimum diameter shaft shoulder
D_{a max}	158 mm	Maximum diameter of housing shoulder
r_{a max}	2,1 mm	Maximum fillet radius
r_min	2,1 mm	Minimum chamfer dimension
D₁	141,92 mm	Shoulder diameter outer ring
d₁	108,56 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	13,3	Calculation factor
