Name: 6300 2RS High Quality Deep Groove Ball Bearing 10X35X11
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

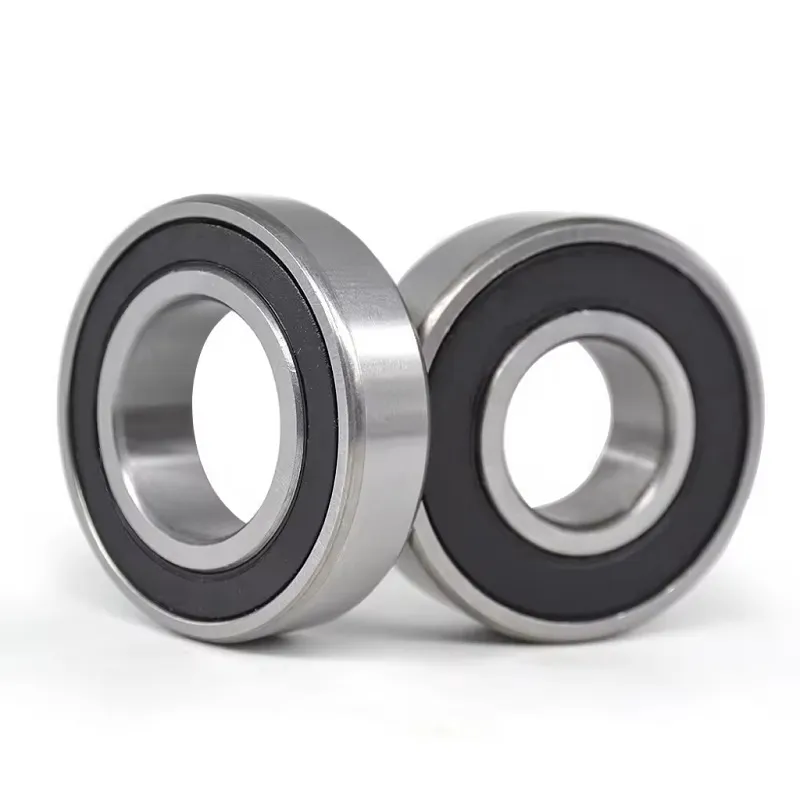

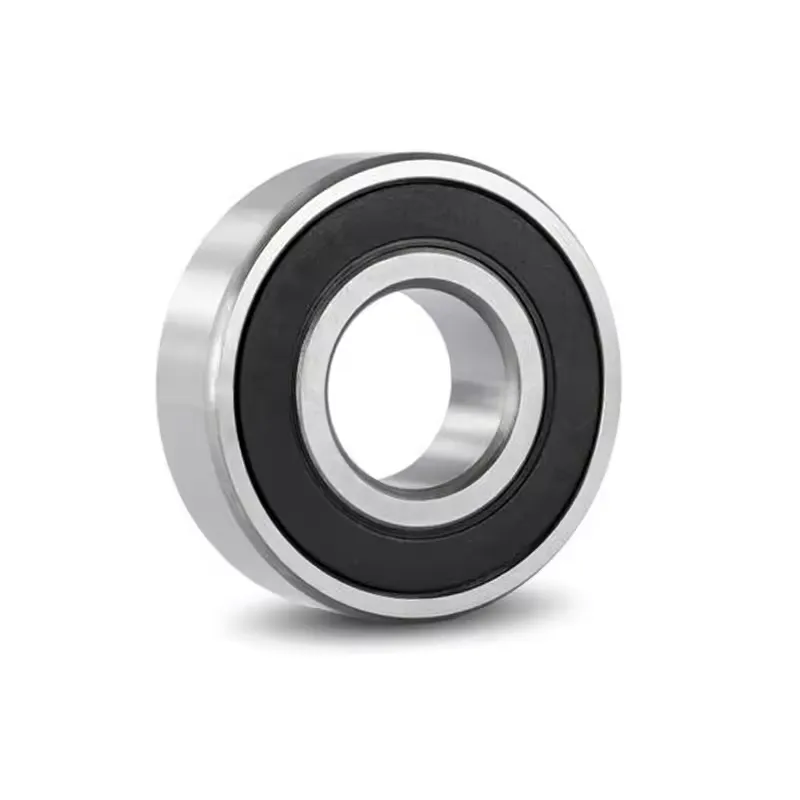

6300 2RS High Quality Deep Groove Ball Bearing 10X35X11

ବର୍ତ୍ତମାନ ଯୋଗାଯୋଗ କରନ୍ତୁ | pdf କୁ ଡାଉନ୍ ଲୋଡ୍ |

ବିବରଣୀ

ଟ୍ୟାଗ୍ସ

Deep groove ball bearing 63, single row, steel sheet metal cage

d	10 mm	Bore diameter
D	35 mm	Outside diameter
B	11 mm	Width
C_r	8.600 N	Basic dynamic load rating, radial
C_0r	3.450 N	Basic static load rating, radial
C_ur	237 N	Fatigue load limit, radial
n_G	31.000 1/min	Limiting speed
n_ϑr	21.100 1/min	Reference speed
≈m	53 g	ଓଜନ
d_{a min}	14,2 mm	Minimum diameter shaft shoulder
D_{a max}	30,8 mm	Maximum diameter of housing shoulder
r_{a max}	0,6 mm	Maximum fillet radius
r_min	0,6 mm	Minimum chamfer dimension
D₁	27,08 mm	Shoulder diameter outer ring
D₂	28,65 mm	Caliber diameter outer ring
d₁	18,1 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	11,3	Calculation factor
