Name: 6004 High Quality Deep Groove Ball Bearing 20X42X12
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

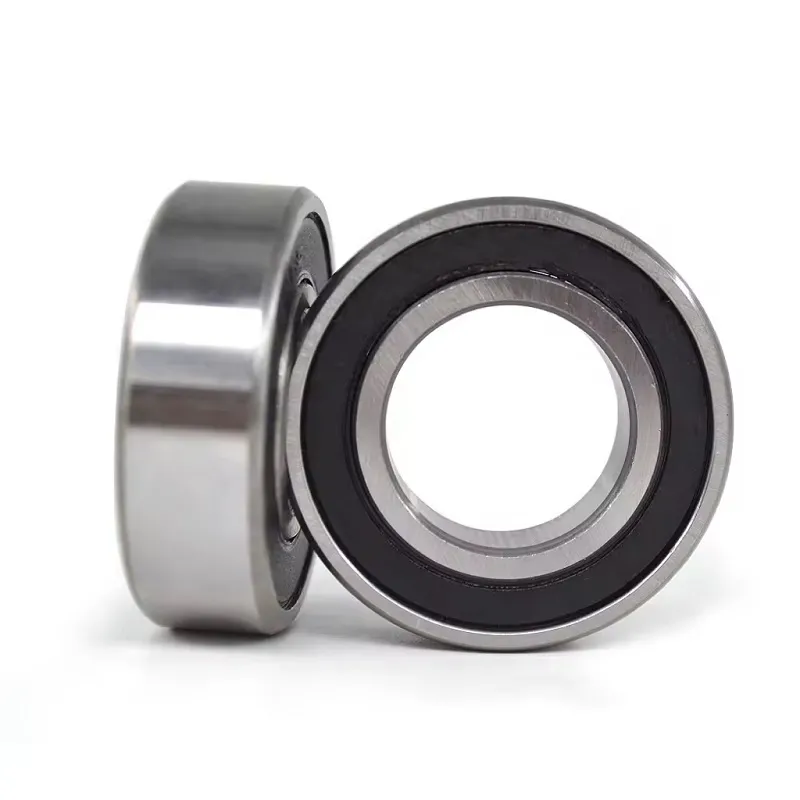

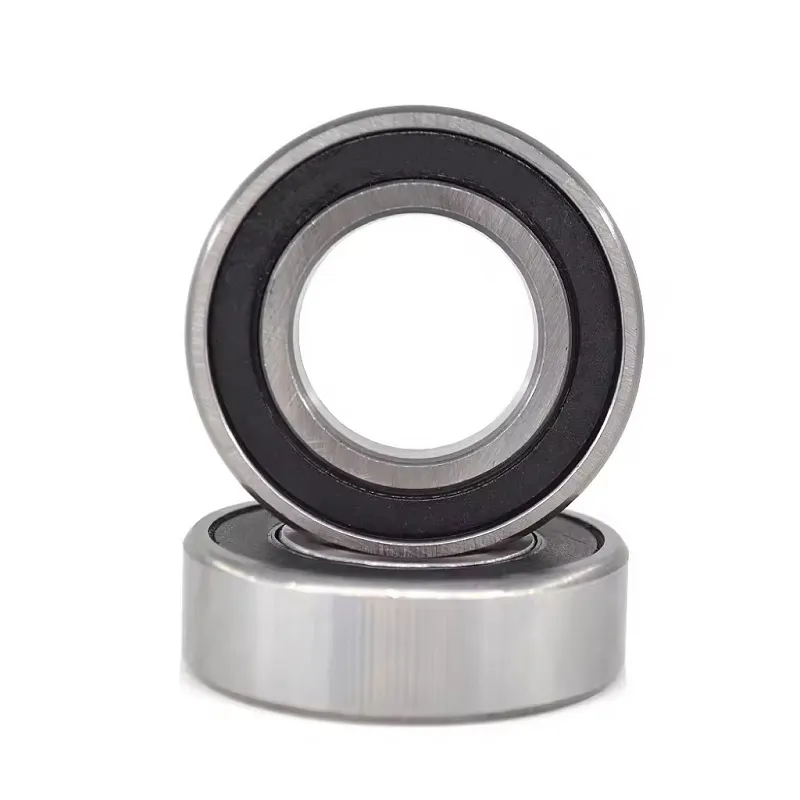

6004 High Quality Deep Groove Ball Bearing 20X42X12

ବର୍ତ୍ତମାନ ଯୋଗାଯୋଗ କରନ୍ତୁ | pdf କୁ ଡାଉନ୍ ଲୋଡ୍ |

ବିବରଣୀ

ଟ୍ୟାଗ୍ସ

Deep groove ball bearing 60, single row, steel sheet metal cage

d	20 mm	Bore diameter
D	42 mm	Outside diameter
B	12 mm	Width
C_r	10.000 N	Basic dynamic load rating, radial
C_0r	5.000 N	Basic static load rating, radial
C_ur	290 N	Fatigue load limit, radial
n_G	24.800 1/min	Limiting speed
n_ϑr	18.200 1/min	Reference speed
≈m	62,4 g	ଓଜନ
d_{a min}	23,2 mm	Minimum diameter shaft shoulder
D_{a max}	38,8 mm	Maximum diameter of housing shoulder
r_{a max}	0,6 mm	Maximum fillet radius
r_min	0,6 mm	Minimum chamfer dimension
D₁	35,47 mm	Shoulder diameter outer ring
D₂	37,42 mm	Caliber diameter outer ring
d₁	26,6 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	13,8	Calculation factor
