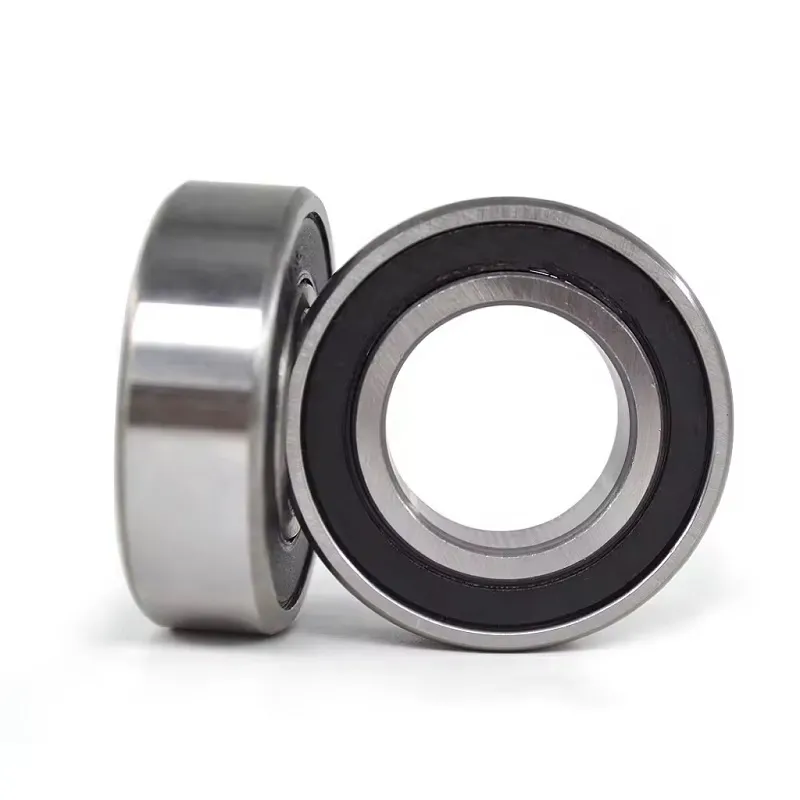

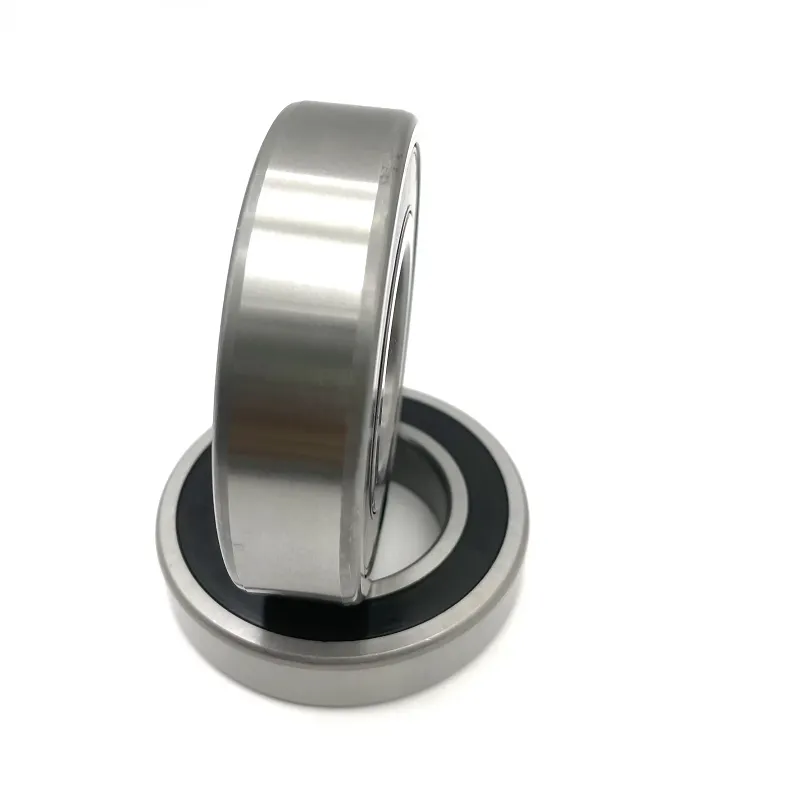

Name: 6001-H-2Z High Quality Deep Groove Ball Bearing
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6001-H-2Z High Quality Deep Groove Ball Bearing

ବର୍ତ୍ତମାନ ଯୋଗାଯୋଗ କରନ୍ତୁ | pdf କୁ ଡାଉନ୍ ଲୋଡ୍ |

ବିବରଣୀ

ଟ୍ୟାଗ୍ସ

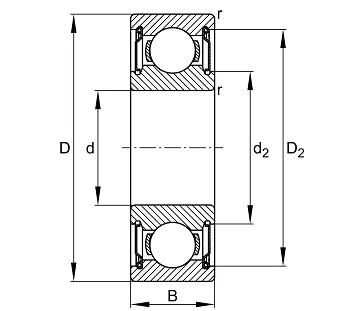

d	12 mm	Bore diameter
D	28 mm	Outside diameter
B	8 mm	Width
C_r	5.400 N	Basic dynamic load rating, radial
C_0r	2.360 N	Basic static load rating, radial
C_ur	126 N	Fatigue load limit, radial
n_G	32.000 1/min	Limiting speed
n_ϑr	23.200 1/min	Reference speed
≈m	0,021 kg	ଓଜନ

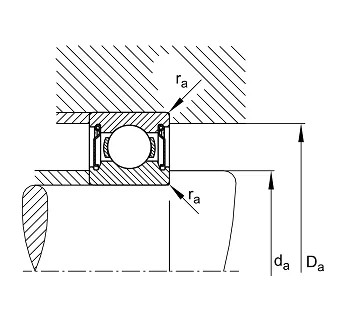

d_{a min}	14 mm	Minimum diameter shaft shoulder
D_{a max}	26 mm	Maximum diameter of housing shoulder
r_{a max}	0,3 mm	Maximum fillet radius
r_min	0,3 mm	Minimum chamfer dimension
D₁	23,8 mm	Shoulder diameter outer ring
D₂	25,34 mm	Caliber diameter outer ring
d₁	17,4 mm	Shoulder diameter inner ring
d₂	16,8 mm	Caliber diameter inner ring
T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	13,2	Calculation factor
