UCFC201 Round Flange Housing 4 Bolt Ball Bearing

အခုပဲ ဆက်သွယ်လိုက်ပါ။ pdf သို့ဒေါင်းလုဒ်လုပ်ပါ။

အသေးစိတ်

တဂ်

Key Features
UCFC201 is a UCFC200 Cast Iron 4-Bolt Round Flange Housing with a Set Screw Locking Insert Ball Bearing. This UCFC201 Cast Iron 4-Bolt Flange Unit features two set screws found on the extended end of the inner ring on the insert which are used to attach and lock onto sliding shafts. This unit is also equipped with Grease Feeding Access to allow for re-lubrication of the bearing. Our Mounted Block Units are pre-lubricated with grease to allow it to be ready to use upon arrival.

Applications / Industries
UCFC201 Mounted Blocks are used in a variety of applications such as Agriculture, Automotive, Printer, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies, and light and heavy industrial use.

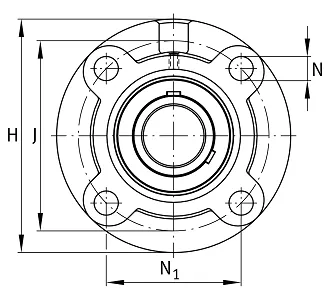

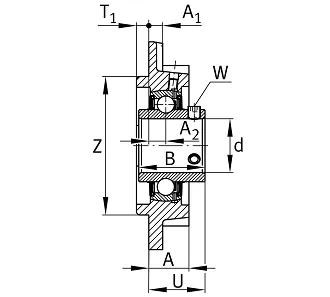

d	12 mm	Bore diameter
H	100 mm	Height flange
U	28.3 mm	Total height unit
C_r	12,800 N	Basic dynamic load rating, radial
C_0r	6,600 N	Basic static load rating, radial
C_ur	345 N	Fatigue load limit, radial
≈m	0.77 kg	အလေးချိန်
J	78 mm	Distance fixing bore
J	78 mm	Pitch circle diameter (holes)
N	12 mm	Fixing bore
N₁	55.1 mm	Distance fixing bore
T₁	5 mm	Height spigot
Z	62 mm	Diameter spigot
	h8	Diameter spigot clearance
n	4	Number of screwing holes
A	20.5 mm	Height housing
A₁	8 mm	Thickness of flange
A₂	10 mm	Distance raceway
B	31 mm	Width
Q	M6	Connection thread for lubrication
T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
