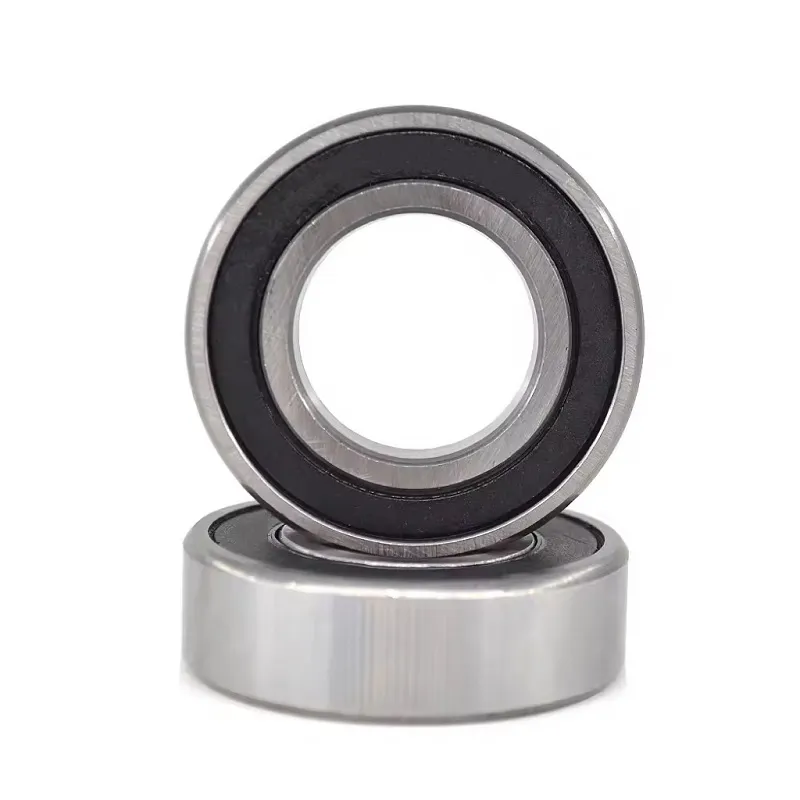

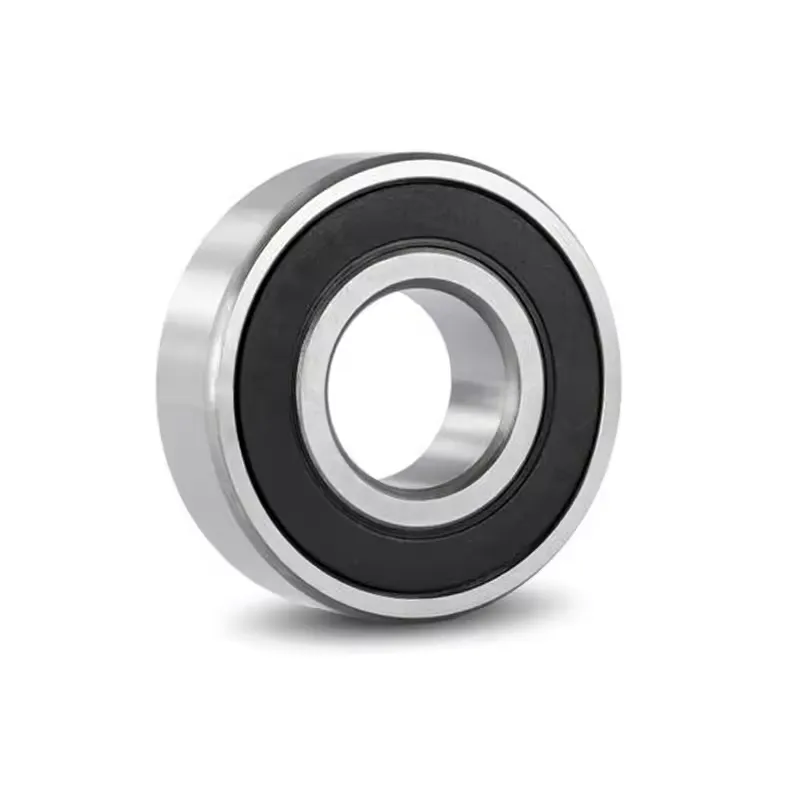

6319 2RS High Quality Deep Groove Ball Bearing 95X200X45

pdf वर डाउनलोड करा

तपशील

टॅग्ज

Deep groove ball bearing 63, single row, steel sheet metal cage

d
95 mm
 Bore diameter
D
200 mm
 Outside diameter
B
45 mm
 Width
Cr
154.000 N
 Basic dynamic load rating, radial
C0r
113.000 N
 Basic static load rating, radial
Cur
6.600 N
 Fatigue load limit, radial
nG
4.600 1/min
 Limiting speed
nϑr
4.950 1/min
 Reference speed
≈m
6,23 kg
 वजन
da min
109 mm
 Minimum diameter shaft shoulder
Da max
186 mm
 Maximum diameter of housing shoulder
ra max
2,5 mm
 Maximum fillet radius
rmin
3 mm
 Minimum chamfer dimension
D1
166,88 mm
 Shoulder diameter outer ring
d1
129,08 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
150 °C
 Operating temperature max.
f0
13,8
 Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
