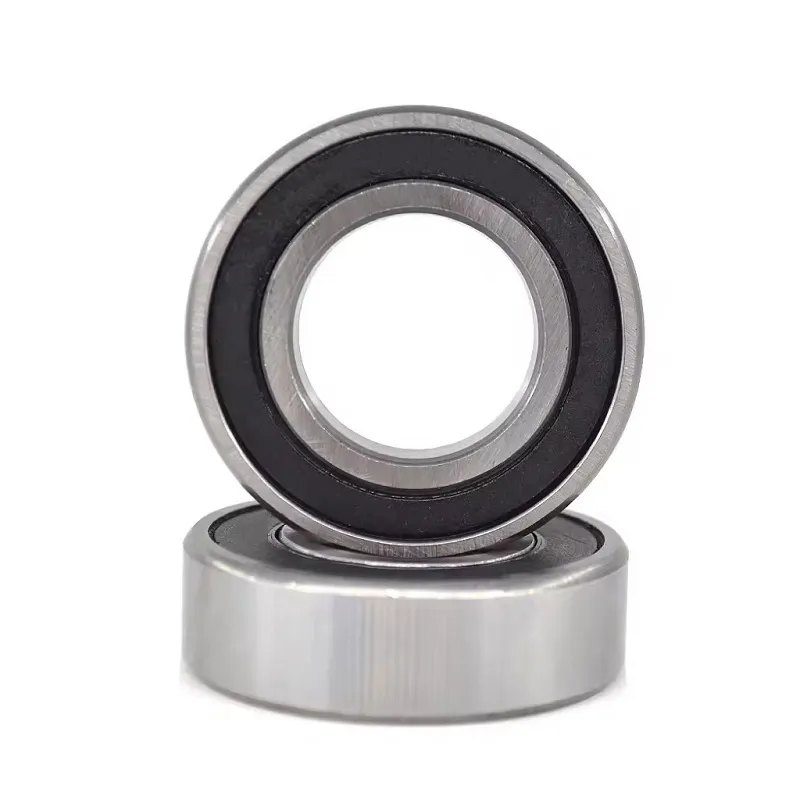

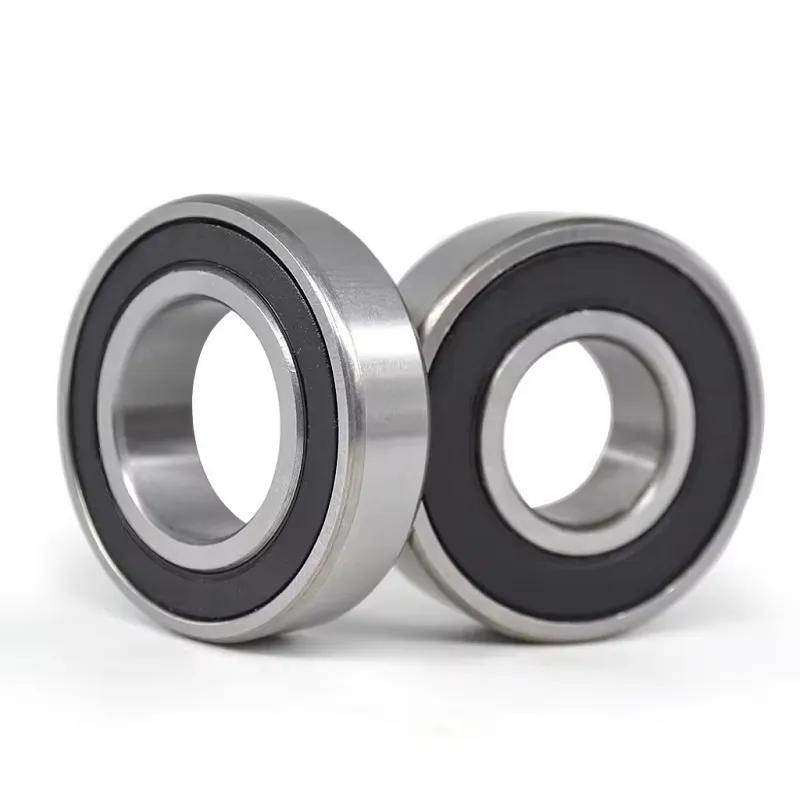

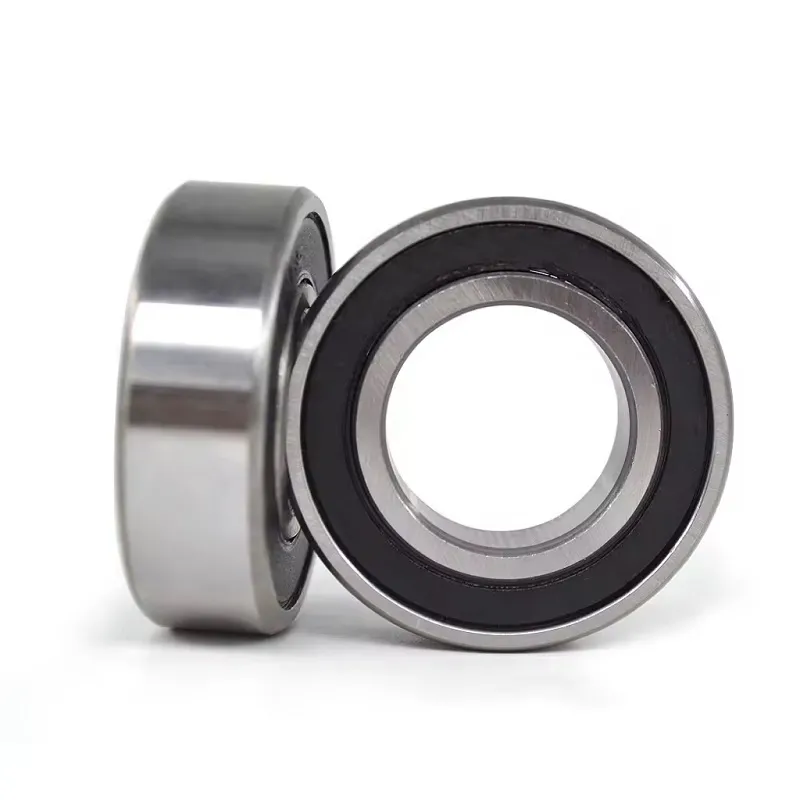

6000 High quality Deep groove ball bearing

desann chaj nan pdf

Detay yo

Tags

Deep groove ball bearing 60, single row, steel sheet metal cage



d
10 mm
 Bore diameter
D
26 mm
 Outside diameter
B
8 mm
 Width
Cr
4.850 N
 Basic dynamic load rating, radial
C0r
1.970 N
 Basic static load rating, radial
Cur
96 N
 Fatigue load limit, radial
nG
40.500 1/min
 Limiting speed
nϑr
27.500 1/min
 Reference speed
≈m
18 g
 Pwa
da min
12 mm
 Minimum diameter shaft shoulder
Da max
24 mm
 Maximum diameter of housing shoulder
ra max
0,3 mm
 Maximum fillet radius
rmin
0,3 mm
 Minimum chamfer dimension
D1
21,43 mm
 Shoulder diameter outer ring
D2
22,46 mm
 Caliber diameter outer ring
d1
14,65 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
12,4
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
