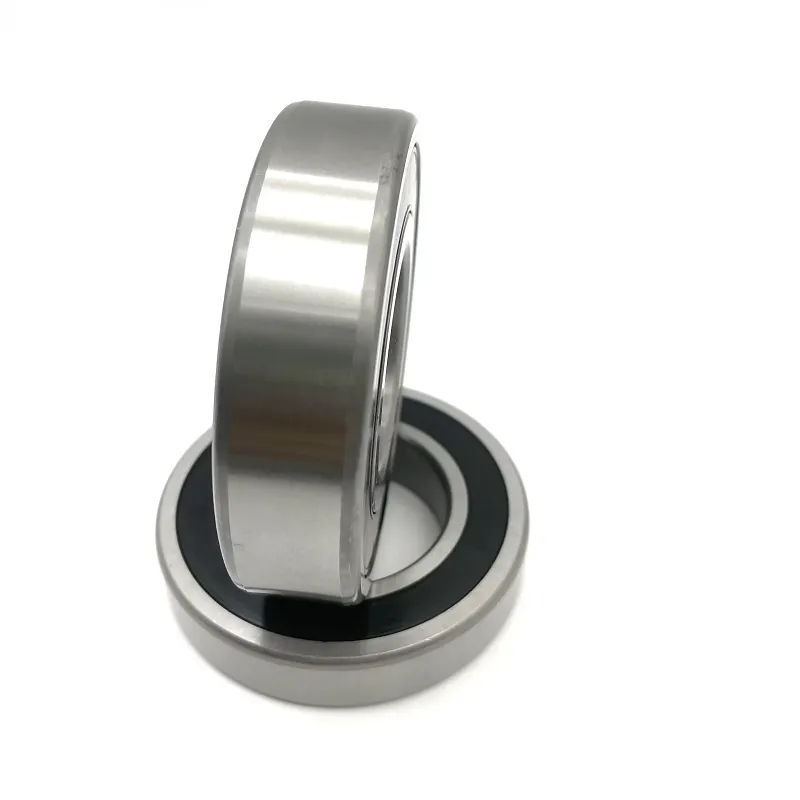

6206 High Quality Deep Groove Ball Bearing 30X62X16

sauke zuwa pdf

Cikakkun bayanai

Tags

Deep groove ball bearing 62, single row, steel sheet metal cage

d
30 mm
 Bore diameter
D
62 mm
 Outside diameter
B
16 mm
 Width
Cr
20.700 N
 Basic dynamic load rating, radial
C0r
11.300 N
 Basic static load rating, radial
Cur
700 N
 Fatigue load limit, radial
nG
16.200 1/min
 Limiting speed
nϑr
12.000 1/min
 Reference speed
≈m
0,184 kg
 Nauyi
da min
35,6 mm
 Minimum diameter shaft shoulder
Da max
56,4 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1 mm
 Minimum chamfer dimension
D1
52,07 mm
 Shoulder diameter outer ring
D2
54,92 mm
 Caliber diameter outer ring
d1
40 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
13,8
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
