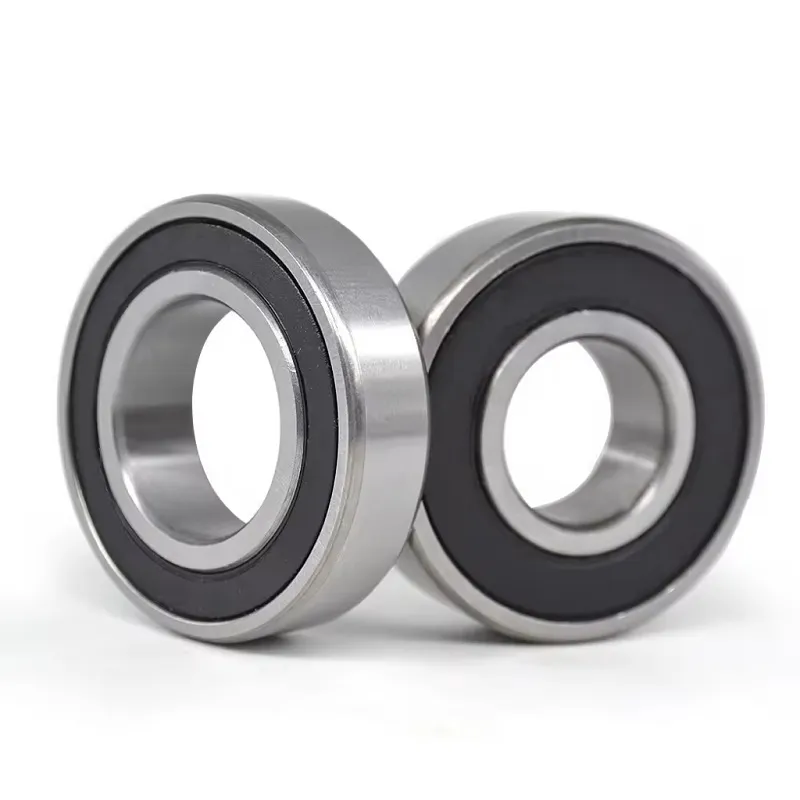

6202 High Quality Deep Groove Ball Bearing 15X35X11

sauke zuwa pdf

Cikakkun bayanai

Tags

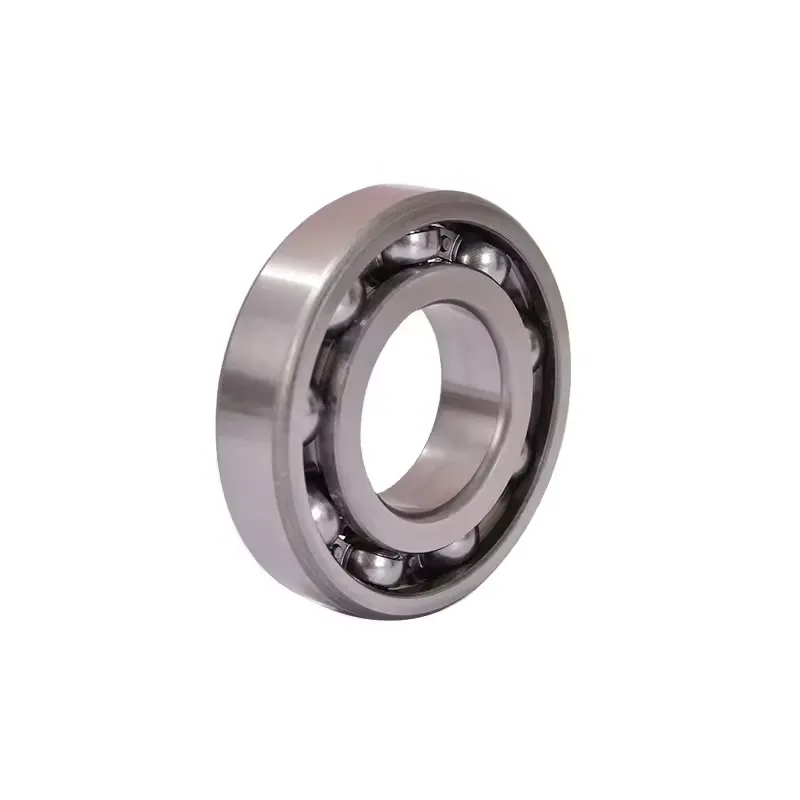

Deep groove ball bearing 62, single row, steel sheet metal cage

d
15 mm
 Bore diameter
D
35 mm
 Outside diameter
B
11 mm
 Width
Cr
8.200 N
 Basic dynamic load rating, radial
C0r
3.750 N
 Basic static load rating, radial
Cur
227 N
 Fatigue load limit, radial
nG
30.000 1/min
 Limiting speed
nϑr
19.800 1/min
 Reference speed
≈m
44 g
 Nauyi
da min
19,2 mm
 Minimum diameter shaft shoulder
Da max
30,8 mm
 Maximum diameter of housing shoulder
ra max
0,6 mm
 Maximum fillet radius
rmin
0,6 mm
 Minimum chamfer dimension
D1
29,36 mm
 Shoulder diameter outer ring
D2
30,89 mm
 Caliber diameter outer ring
d1
21,05 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
13
 Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
