Name: 6309 2RS High Quality Deep Groove Ball Bearing 45X100X25
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

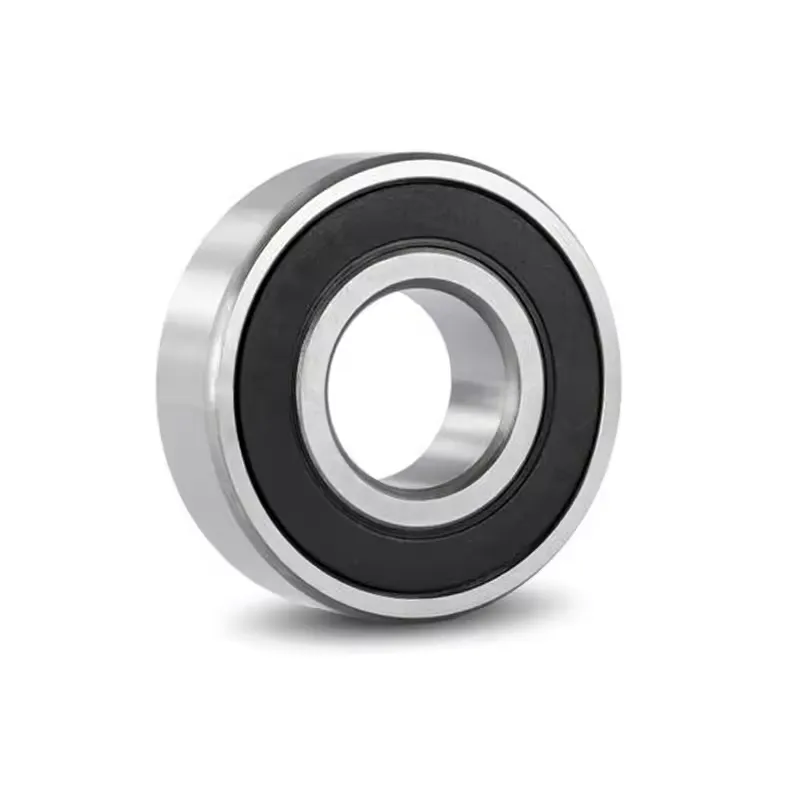

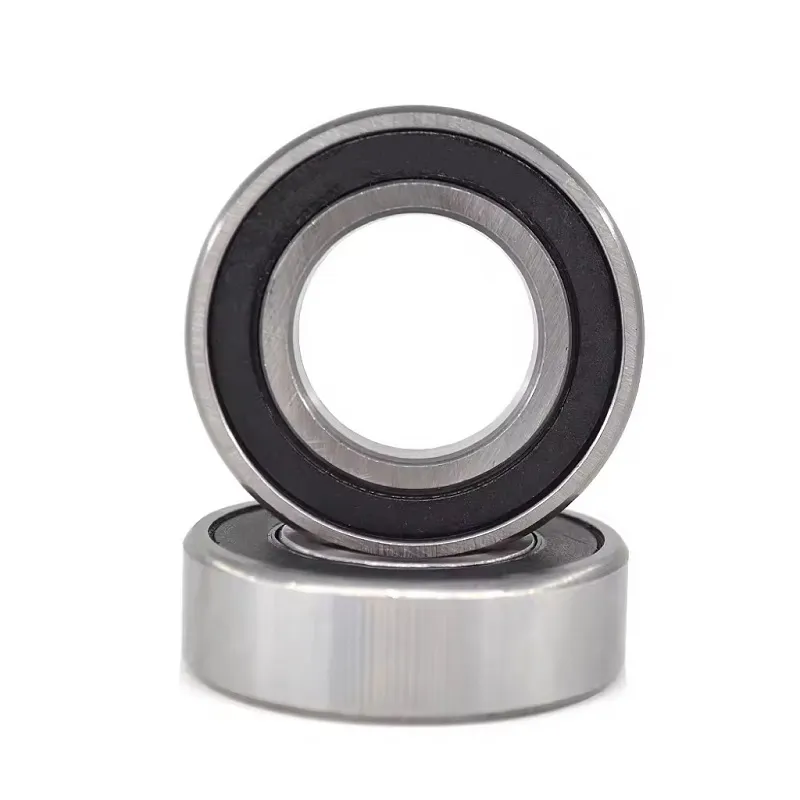

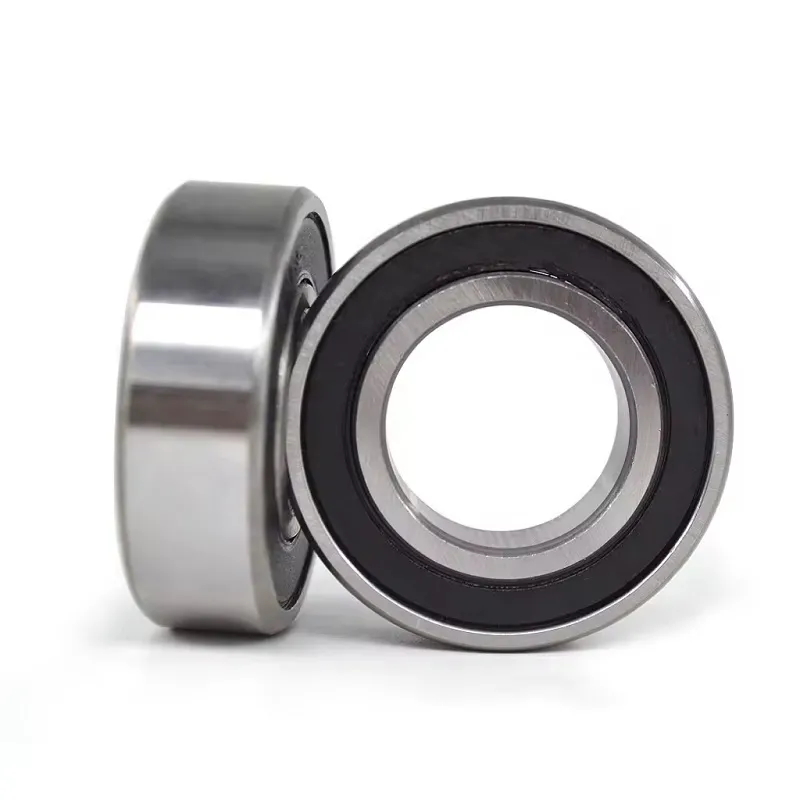

6309 2RS High Quality Deep Groove Ball Bearing 45X100X25

હમણાં સંપર્ક કરો પીડીએફમાં ડાઉનલોડ કરો

વિગતો

ટૅગ્સ

Deep groove ball bearing 63, single row, steel sheet metal cage

d	45 mm	Bore diameter
D	100 mm	Outside diameter
B	25 mm	Width
C_r	56.000 N	Basic dynamic load rating, radial
C_0r	31.500 N	Basic static load rating, radial
C_ur	2.240 N	Fatigue load limit, radial
n_G	9.500 1/min	Limiting speed
n_ϑr	8.200 1/min	Reference speed
≈m	0,814 kg	વજન
d_{a min}	54 mm	Minimum diameter shaft shoulder
D_{a max}	91 mm	Maximum diameter of housing shoulder
r_{a max}	1,5 mm	Maximum fillet radius
r_min	1,5 mm	Minimum chamfer dimension
D₁	83,3 mm	Shoulder diameter outer ring
D₂	86,37 mm	Caliber diameter outer ring
d₁	62,26 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	12,9	Calculation factor
