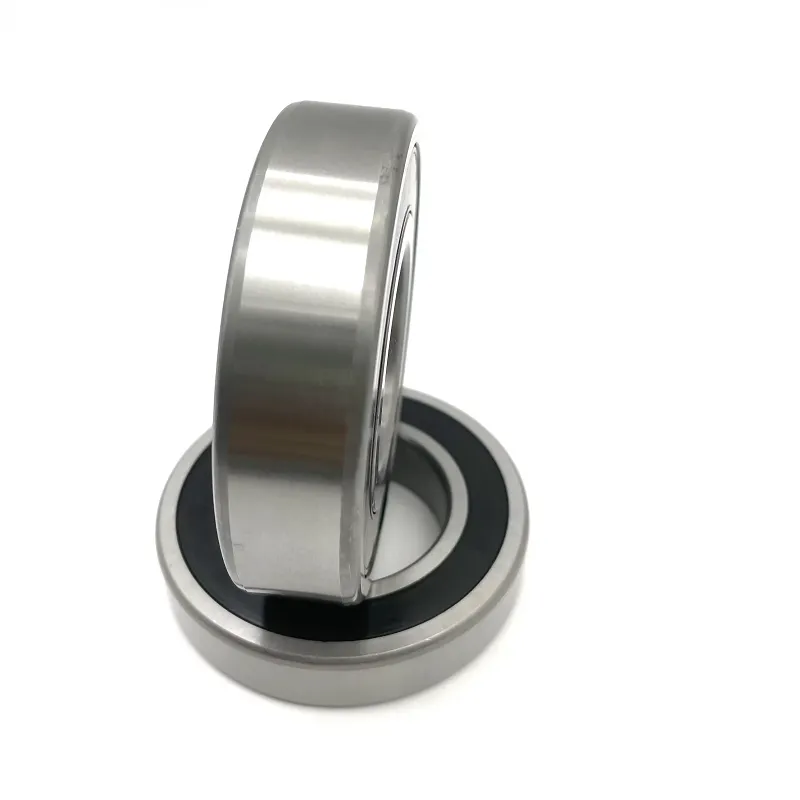

6013 High Quality Deep Groove Ball Bearing 65X100X18

Luchdaich a-nuas pdf gu pdf

Mion-fhiosrachadh

Tagaichean

Deep groove ball bearing 60, single row, steel sheet metal cage


6000 Series ball bearings feature honed deep grove raceways that are capable of operating under radial, thrust or combination loads. Featuring metric inner and outer diameters in common industry sizes. This bearing comes pre-lubricated with grease and is available with rubber seals (-2RS) or metal shields (-ZZ).
d
65 mm
 Bore diameter
D
100 mm
 Outside diameter
B
18 mm
 Width
Cr
32.500 N
 Basic dynamic load rating, radial
C0r
25.000 N
 Basic static load rating, radial
Cur
1.300 N
 Fatigue load limit, radial
nG
9.500 1/min
 Limiting speed
nϑr
7.100 1/min
 Reference speed
≈m
0,418 kg
 Cuideam
da min
71 mm
 Minimum diameter shaft shoulder
Da max
94 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1,1 mm
 Minimum chamfer dimension
D1
88,8 mm
 Shoulder diameter outer ring
D2
91,52 mm
 Caliber diameter outer ring
d1
76,225 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
150 °C
 Operating temperature max.
f0
15,7
 Calculation factor



High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
