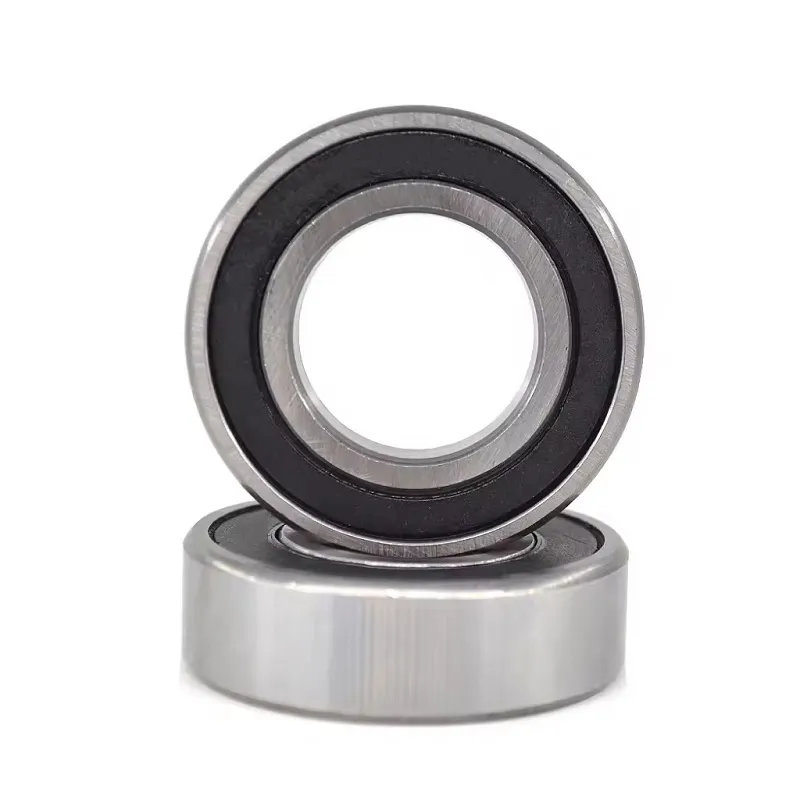

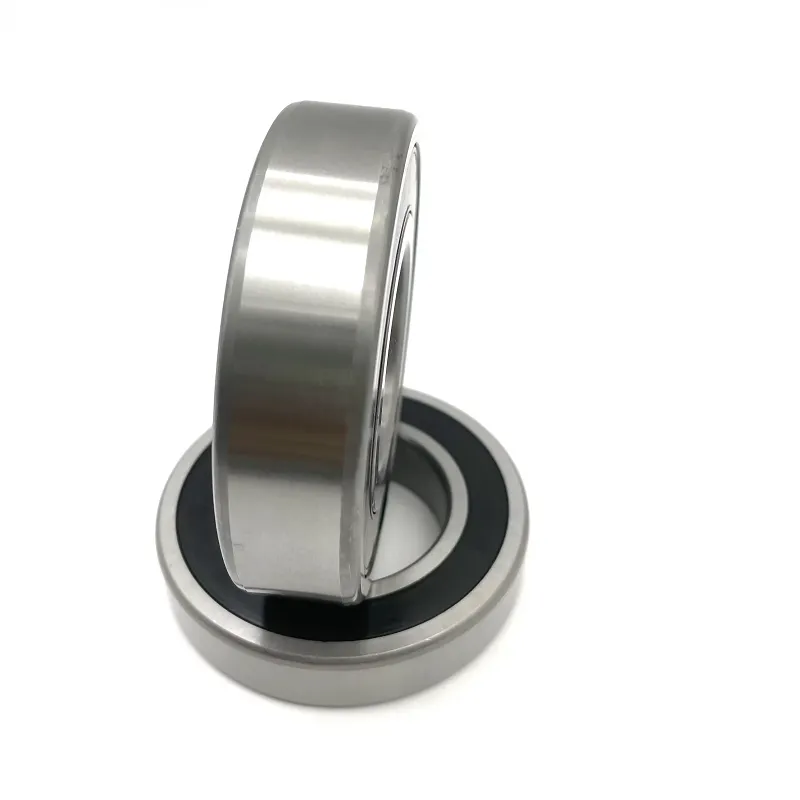

6204 High Quality Deep Groove Ball Bearing 20X47X14

i-down load sa pdf

Mga Detalye

Mga tag

Deep groove ball bearing 62, single row, steel sheet metal cage

d
20 mm
 Bore diameter
D
47 mm
 Outside diameter
B
14 mm
 Width
Cr
13.600 N
 Basic dynamic load rating, radial
C0r
6.600 N
 Basic static load rating, radial
Cur
455 N
 Fatigue load limit, radial
nG
22.100 1/min
 Limiting speed
nϑr
16.300 1/min
 Reference speed
≈m
103,66 g
 Gibug-aton
da min
25,6 mm
 Minimum diameter shaft shoulder
Da max
41,4 mm
 Maximum diameter of housing shoulder
ra max
1 mm
 Maximum fillet radius
rmin
1 mm
 Minimum chamfer dimension
D1
38,45 mm
 Shoulder diameter outer ring
D2
40,96 mm
 Caliber diameter outer ring
d1
28,75 mm
 Shoulder diameter inner ring
Tmin
-30 °C
 Operating temperature min.
Tmax
120 °C
 Operating temperature max.
f0
13,1
 Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
