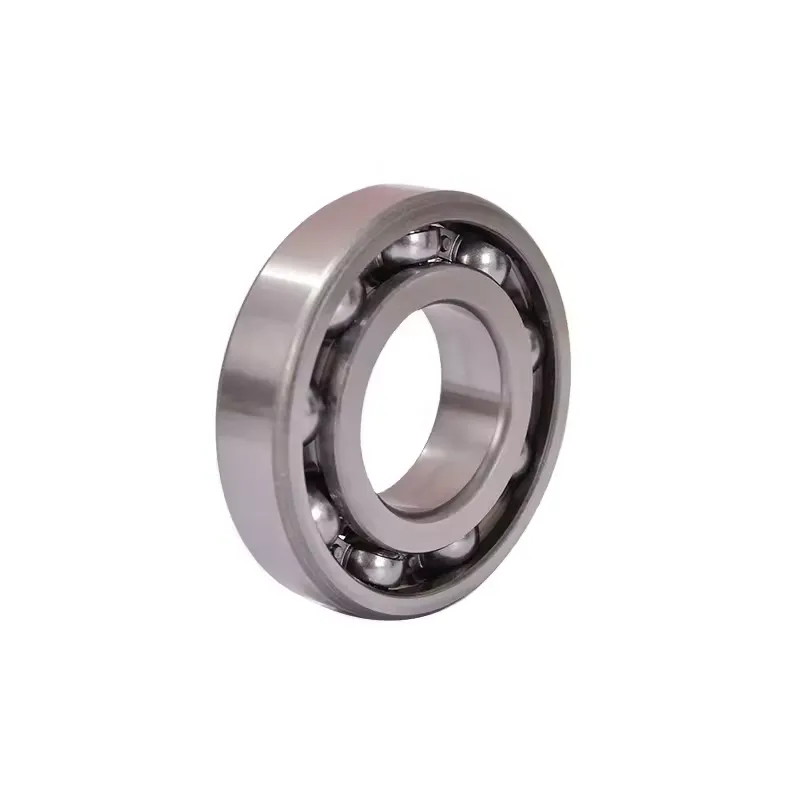

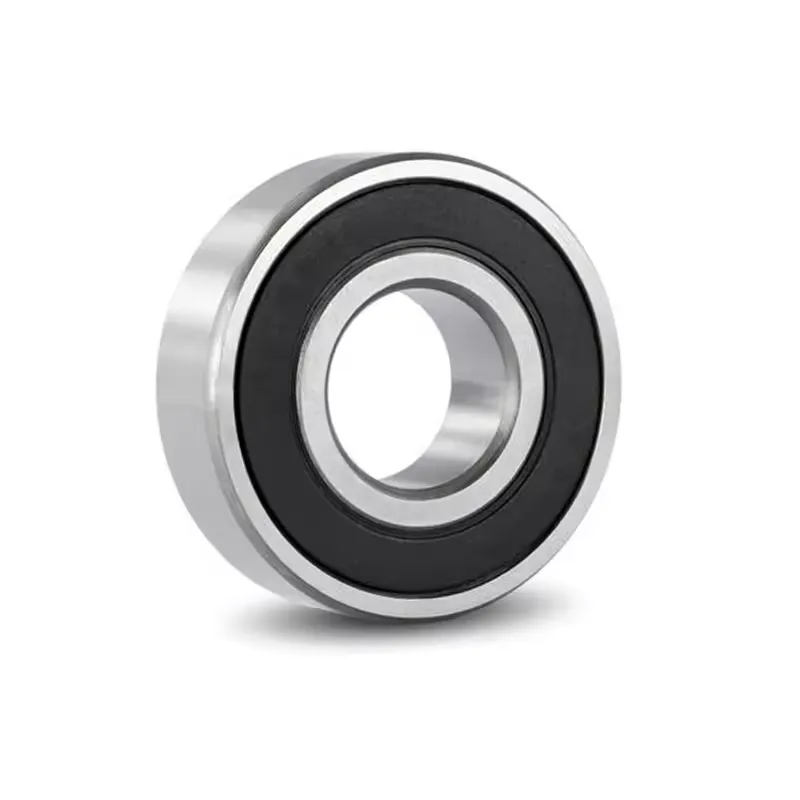

Name: 6203 High Quality Deep Groove Ball Bearing 17X40X12
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6203 High Quality Deep Groove Ball Bearing 17X40X12

KONTAK KARON i-down load sa pdf

Mga Detalye

Mga tag

Deep groove ball bearing 62, single row, steel sheet metal cage

d	17 mm	Bore diameter
D	40 mm	Outside diameter
B	12 mm	Width
C_r	10.100 N	Basic dynamic load rating, radial
C_0r	4.750 N	Basic static load rating, radial
C_ur	285 N	Fatigue load limit, radial
n_G	26.500 1/min	Limiting speed
n_ϑr	18.100 1/min	Reference speed
≈m	64,278 g	Gibug-aton
d_{a min}	21,2 mm	Minimum diameter shaft shoulder
D_{a max}	35,8 mm	Maximum diameter of housing shoulder
r_{a max}	0,6 mm	Maximum fillet radius
r_min	0,6 mm	Minimum chamfer dimension
D₁	33,08 mm	Shoulder diameter outer ring
D₂	34,38 mm	Caliber diameter outer ring
d₁	24 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.
f₀	13	Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
