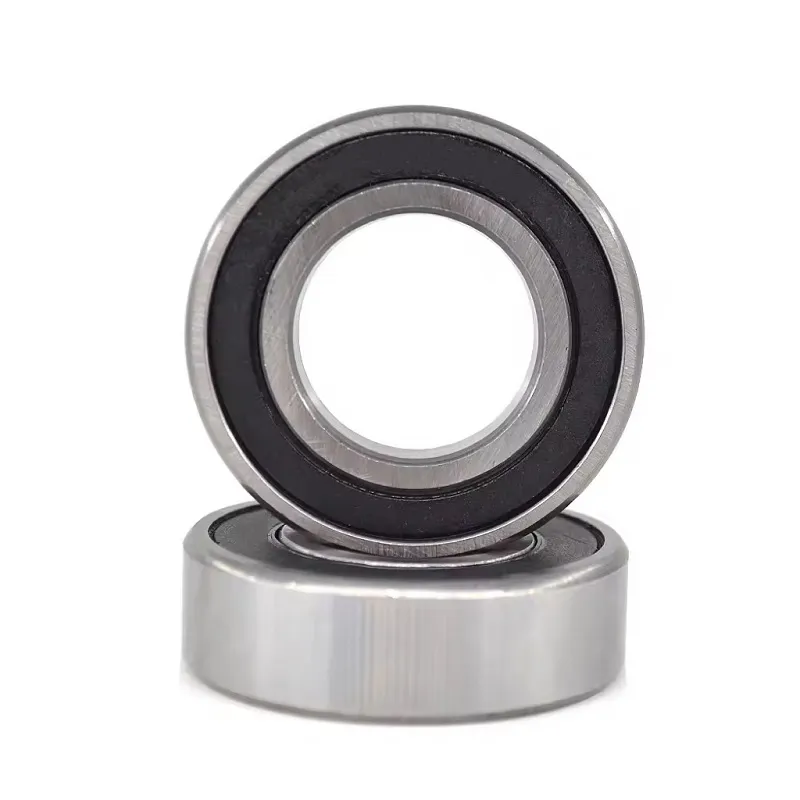

Name: 6407 2RS High Quality Deep Groove Ball Bearing 35X100X25
Brand: Spherical Roller Ceramic Deep Groove Bearing Ball Suppliers Manufacturers Factory
Availability: InStock
Rating: 4.5 (89 reviews)

6407 2RS High Quality Deep Groove Ball Bearing 35X100X25

ЗВЯЖЫЦЕСЯ ЗАРАЗ загрузіць у pdf

Дэталі

Тэгі

Deep groove ball bearing 64, single row, steel sheet metal cage

d	35 mm	Bore diameter
D	100 mm	Outside diameter
B	25 mm	Width
C_r	56.000 N	Basic dynamic load rating, radial
C_0r	31.500 N	Basic static load rating, radial
C_ur	2.240 N	Fatigue load limit, radial
n_G	9.500 1/min	Limiting speed
n_ϑr	7.900 1/min	Reference speed
≈m	0,938 kg	Вага
d_{a min}	46 mm	Minimum diameter shaft shoulder
D_{a max}	89 mm	Maximum diameter of housing shoulder
r_{a max}	1,5 mm	Maximum fillet radius
r_min	1,5 mm	Minimum chamfer dimension
D₁	83,3 mm	Shoulder diameter outer ring
d₁	62,31 mm	Shoulder diameter inner ring
T_min	-30 °C	Operating temperature min.
T_max	150 °C	Operating temperature max.
f₀	12,9	Calculation factor

High quality bearing manufacturer from China, special bearings can be customized, welcome to inquire!
